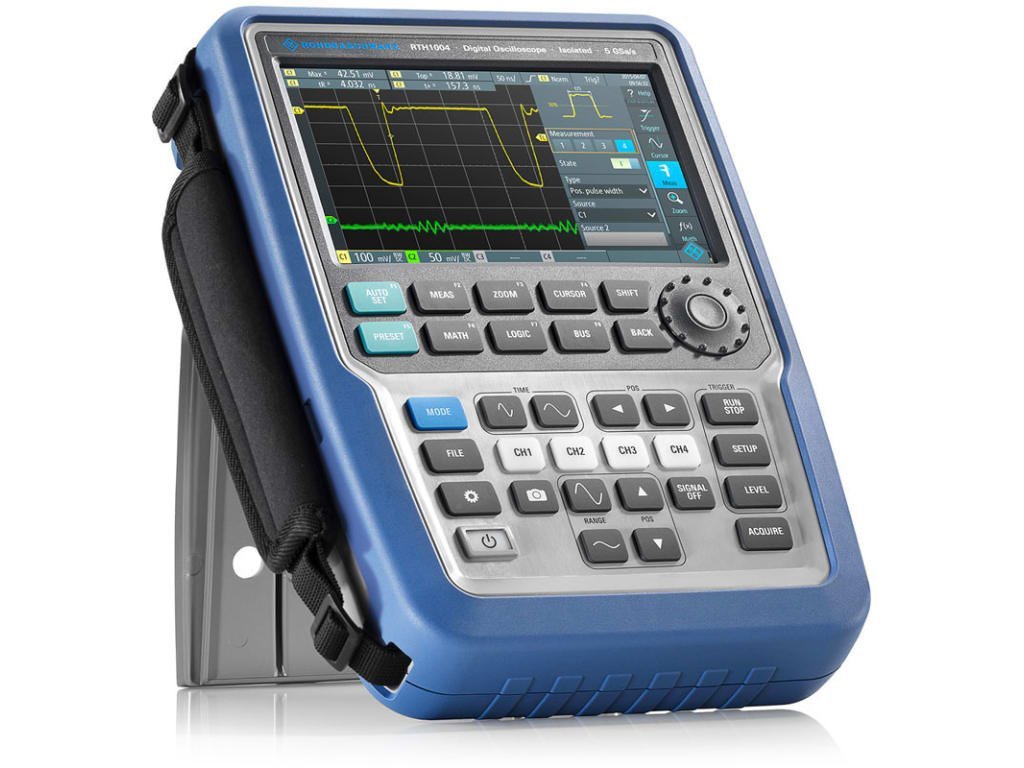

Rohde and Schwarz RTH1054MSO Scope Rider – 4 Channel, 500 MHz Mixed Signal Oscilloscope

Description

The Rohde and Schwarz RTH1054MSO Scope Rider ruggedized handheld digital storage oscilloscope delivers ultimate four-channel mixed-signal cross-domain diagnostic performance inside challenging technical environments, industrial field sites, and high-voltage grid stations. This heavy-duty validation platform combines a native 10-bit vertical resolution digitizer layout with an integrated multi-channel logic analyzer engine behind a specialized IP51 case, enabling hardware test benches to monitor four isolated analog signals and digital logic pathways concurrently without structural baseline thermal drift.

By coupling an elite 500 MHz system bandwidth baseline with an interleaved 1.25 GS/S maximum real-time sampling rate, a 10-bit native analog-to-digital digitizer core, and a built-in high-capacity Li-ion battery network, the system preserves exceptional tracking fidelity. This highly reliable field system integrates high-speed hardware trace accelerators and local Micro SD file storage networks to accelerate cross-domain tracking diagnostics cleanly on the go.

Key Features of Rohde and Schwarz RTH1054MSO Scope Rider

• Four Natively Isolated Analog Input Channels: Supports safe multi-point floating measurements up to CAT IV 600V safety thresholds.
• Integrated Multi-Channel MSO Logic Processing: Validates time-aligned digital bus control states alongside physical-layer analog waveforms simultaneously.
• IP51 Environmental Protection Rating: Resists hostile facility dust ingress and vertical water drops cleanly.
• High-Speed 1250 MS/S Real-Time Sampling: Captures complex transient anomalies accurately across active high-speed analog hardware lines.
• True Hardware 10-Bit Vertical Resolution: Pinpoints miniscule baseline noise spikes buried under standard low-resolution monitoring tools.
• Integrated High-Capacity Li-ion Battery Power: Drives uninterrupted long-term portable diagnostic sweeps detached from utility grids.
• Continuous Hardware Telemetry Data Logging: Records extended voltage changes over time directly onto standard Micro SD cards.

Quad Analog Multi Domain Logic Synchronization

The core processing layer across this integrated instrumentation environment utilizes high-resolution digital processing arrays paired with an exceptional hardware acquisition matrix to eliminate configuration latency during unpredictable circuit evaluations. This quad-channel mixed-signal configuration operates at a high-speed sampling velocity concurrently, enabling automated test labs and firmware developers to view elusive low-amplitude anomalies and random clock jitter across twenty separate channels simultaneously without risking signal attenuation near the Nyquist frequency limit. All real-time signals pass directly through the integrated digitizer framework to achieve an optimal signal-to-noise ratio and isolate active signal paths from ambient laboratory facility noise floors over standard LAN/Ethernet and USB interface endpoints.

Rugged Handheld Field Deployments and Support Lifecycles

Constructed to excel in harsh environment test bays, transportation systems infrastructure maintenance, and advanced field engineering environments, the heavy-duty 5.3 LBS Czech Republic manufactured chassis protects sensitive internal processing nodes within a space-saving 11.54″ H x 2.91″ L x 7.91″ W physical layout area. The structural layout native to the platform ensures immediate automated data offloading onto external flash drive architectures or networked computing hosts, balancing an optimized 6 lbs logistical shipping weight profile under universal ECCN 3A992 and Schedule B code 9030201000 trade profiles globally. Guaranteeing clear equipment transparency and asset lifecycle alignment, this professional compact high-frequency hardware comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
