Tektronix MSO56B 5-BW-1000 – 5 Series B MSO (6 Flex Channels / 1 GHz)

Description

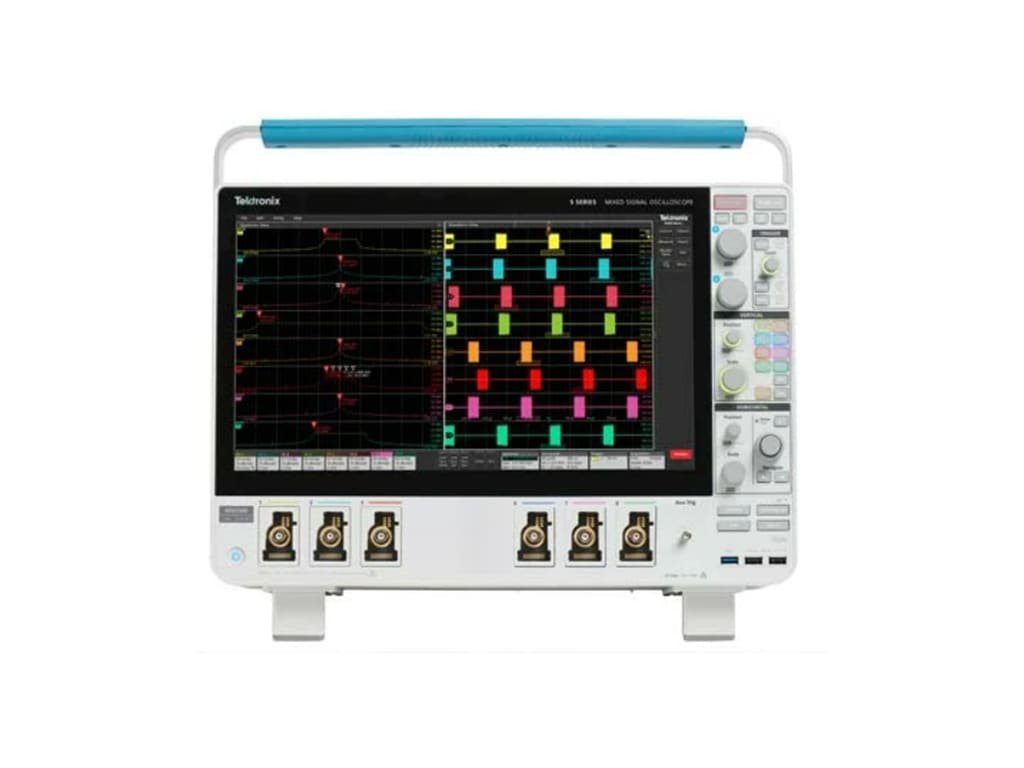

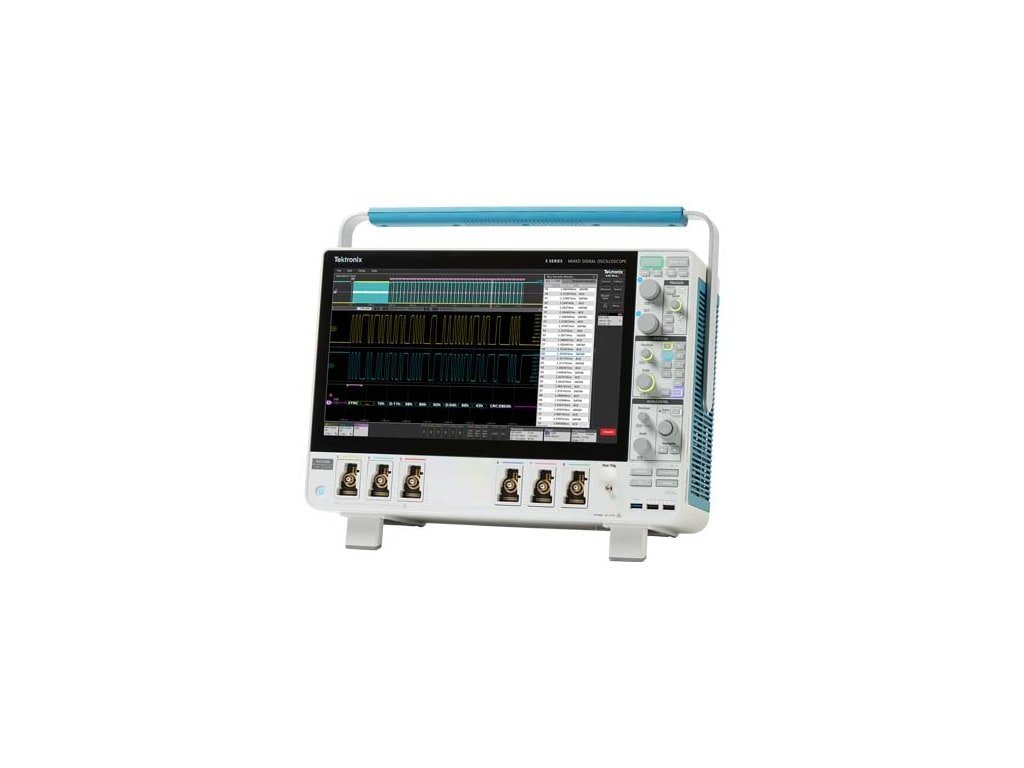

The Tektronix MSO56B 5-BW-1000 high-performance laboratory storage oscilloscope delivers uncompromised diagnostic depth, multi-rail visualization, and extreme signal characterization to top-tier hardware design lines and aerospace facilities. This specialized six-channel instrumentation platform integrates an expansive 15.6-inch touchscreen control center supporting up to 48 independent digital logic state pathways simultaneously, allowing electrical validation development teams to monitor complex parallel register states, isolate high-frequency microwave transients, and evaluate timing deviations concurrently without trace rendering lag.

By coupling an elite 1 GHz wideband analog system bandwidth specification with a continuous 6.25 GS/S maximum real-time hardware sampling velocity across all channels concurrently and an ultra-fast sub-nanosecond 400 ps rise time threshold, the platform maintains superior signal tracking. This heavy-duty testing framework relies on a massive 62.5 MP deep standard acquisition memory depth per channel to prevent tracking dataset truncation across six active testing corridors.

Key Features of Tektronix MSO56B 5-BW-1000

• Six Dedicated Analog FlexChannel Inputs: Coordinates concurrent timing analysis across six independent signal paths and multi-phase rails.
• True Hardware 12-Bit Vertical Resolution: Provides ultimate vertical precision, revealing miniscule noise flaws completely missed by lower-tier systems.
• 400 ps Sub-Nanosecond Rise Time: Resolves ultra-sharp fast-edge digital transitions to accurately evaluate critical timing violations.
• Blazing 500,000 wfms/s Update Engine: Exposes rare circuit faults instantly by minimizing internal hardware trigger dead time.
• Massive 48 Dedicated Logic Channel Pathways: Connects multi-channel firmware register outputs synchronously using specialized multi-instrument probing options.
• Massive 62.5 MP Waveform Memory depth: Stores deep horizontal data arrays without sacrificing real-time sampling resolution properties.
• Expansive 15.6-Inch Touch Control Interface: Hosts a robust visual control workspace optimized for clean multi-channel cross-domain diagnostics.

Hexa-Channel High-Velocity Waveform Digitization Axis

The core processing layer leverages a premium native 12-bit analog-to-digital digitization core combined with a blistering 400 ps rise time and an exceptional hardware acquisition matrix running at 500,000 waveforms per second to eliminate horizontal trace manipulation bottlenecks during critical serialization diagnostics. This six-channel configuration operates at high-speed sampling velocities concurrently, enabling automated test labs and firmware developers to view elusive low-amplitude noise anomalies cross-aligned with active logical pathways near the system Nyquist frequency limit. All real-time signals pass directly through the integrated digitizer framework to achieve an optimal signal-to-noise ratio and isolate delicate tracking networks from ambient laboratory facility electromagnetic interference noise floors.

Consolidated Precision Laboratory Asset Protection

Constructed to excel in advanced automated testing environments (ATE), high-volume production benches, and advanced engineering laboratories, the heavy-duty enclosure optimizes workbench space while providing stable operations under full CE, RoHS, and UL safety structures. The structural multi-instrument framework native to the system ensures immediate automated data offloading onto internal storage configurations or external flash drive targets over standard LAN/Ethernet, LXI, and high-speed USB interface ports without structural baseline thermal drift during long testing runs. Guaranteeing clear equipment transparency and asset lifecycle alignment, this professional high-frequency hardware configuration comes standard with a verified 1-Year Warranty framework to ensure continuous equipment dependability.
