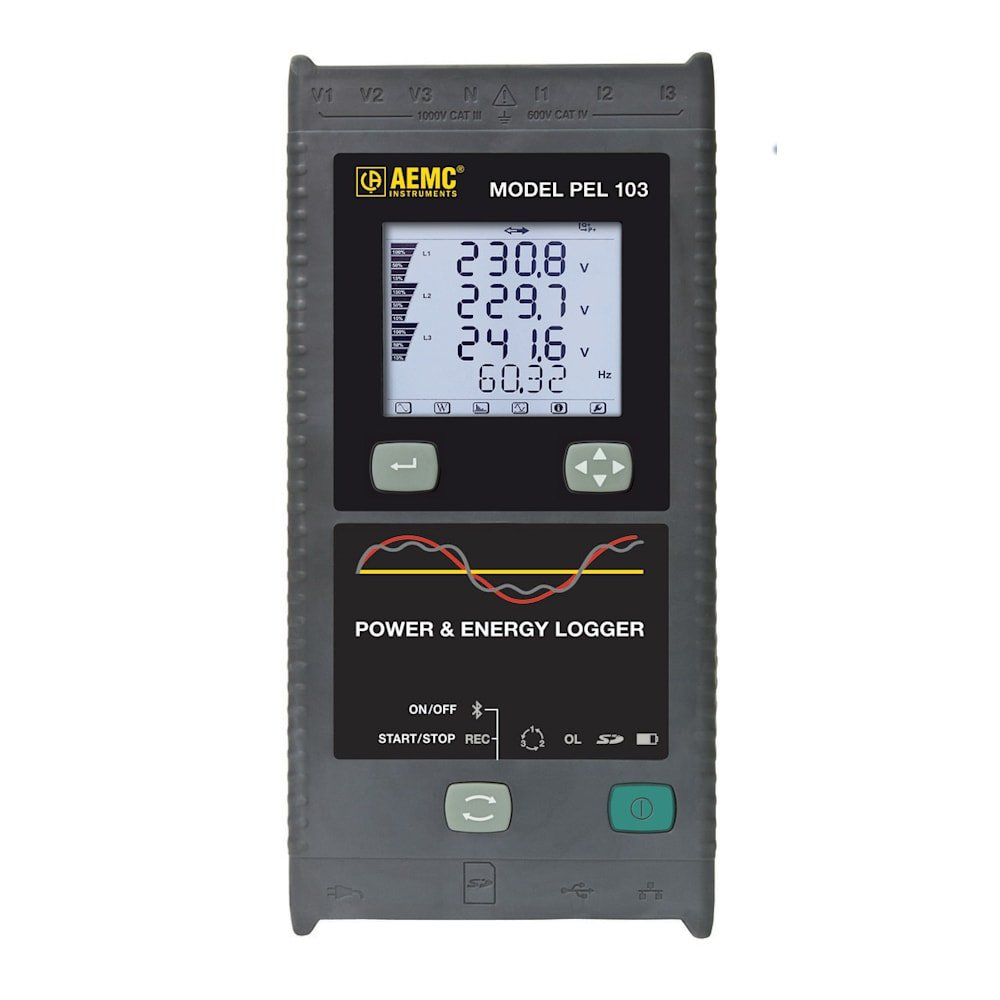

Name: AEMC PEL 103 - Power and Energy Demand Logger
Brand: AEMC
SKU: AEMC-Instruments-PEL-103
Price: 1312.00 USD
Availability: InStock

$1,312.00

In Stock

Add to wishlist

Commercial Pricing

Request for Quotations for Bulk Orders

SKU: AEMC-Instruments-PEL-103

Category: Power Loggers

Brand: AEMC

Specification
Reviews (0)

AEMC PEL 103 - Power and Energy Demand Logger Specs

MODELS	PEL 102 & PEL 103
Sampling Frequency	128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz)
Data Storage Rate	1 per second
Demand Period Storage Rate	User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes)
Recorded Parameters (Single- and Poly-Phase)	V, I, W, VA, var, PF, Tan, Wh, VAh, VARh, THD (V and I), Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f / DPF
Event Log	Tracks and records status changes and error messages along with recorded data
Front Panel Indicator LEDs	Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status
Storage Capacity	2GB SD card (included) is used for storage. SD cards (up to 2GB); SDHC cards (4 to 32GB) formatted FAT32 are supported
INPUTS	Voltage
Current	3 current input channels via custom 4 pin jacks that accept AEMC ® probes and sensors
VOLTAGE MEASUREMENT	RANGE
50/60Hz	42.5 to 69Hz
Single-Phase RMS Voltages	10 to 1000Vrms
Phase-to-Phase RMS Voltages	17 to 1700Vrms
400Hz	340 to 460Hz
Single-Phase RMS Voltages	10 to 600Vrms
Phase-to-Phase RMS Voltages	17 to 1200Vrms
DC	100 to 1000V
PT Ratios	Programmable from 50V to 65,0000V
Current Probe: MiniFlex ® Sensor MA193***	200mA to 100Arms
0.8A to 400Arms	10 to 100mA
4A to 2000Arms	0.1 to 1A
20A to 10,000Arms	0.1 to 10A
CT Ratios	Programmable from 1:1 to 25,000:1 (probe dependent)
Active Power (P)*	-2 to 2GW
Reactive Power (Q)*	-2 to 2Gvar
Apparent Power (S)*	0 to 2GVA
Power Factor	-1 to +1
Tangent f (active/reactive power ratio)	-3.2 to +3.2
Active Energy (EP)	0 to 4 x 10 18
Reactive Energy (EQ)	0 to 4 x 1018
Apparent Energy (ES)	0 to 4 x 1018
THD	± 655%
Individual Harmonics	1 to 50 displayed in percentage; 1 to 7 at 400Hz
External Supply	110V/250V (10%) @ 50/60Hz; 400Hz
Back-Up Power Source/Charge Time	Rechargeable 8.4V NiMH battery pack / Approximately 5 hours
Battery Life	30 minutes minimum, 60 minutes typical
Communication Ports	USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class 1 **
Dimension/Weight	10.08 x 4.92 x 1.46" (256 x 125 x 37mm) / <1kg
Case/Index of Protection	Double insulated, rubber over-molded, polycarbonate UL94 V1 rated / IP54 non operating
Mounting/Security	Embedded magnets on back side, keyhole slot on back side / Kensington anti-theft system
Display Type for Model PEL 103	2.63 x 2.16" (67 x 55mm), four line, monochrome, backlit LCD with adjustable brightness and contrast
Operating Temperature/Relative Humidity	50° to 122°F (10° to 50°C) / up to 85%
Storage Temperature	-4° to 122°F (-20° to 50°C) with batteries; -4° to 158°F (-20° to 70°C without batteries)
Safety Rating/CE Rating	Complies with IEC 61010-1:Ed3, and IEC 61010-2-030:Ed1 for 1000V CAT III / 600V CAT IV, Pollution Degree 2 / Yes
Sensor Type	I nominal
MiniFlex ® MA193 (Included with instrument)	100AAC
400AAC	20 to 500A
2000AAC	100 to 2400A
10,000AAC	500 to 12000A
MR193	1000ADC
100 to 800A	±2.5%
800 to 1200A	±4%
SR193	1000AAC
100 to 1200A	±0.3%
AmpFlex ® 193	100AAC
400AAC	20 to 500A
2000AAC	100 to 2400A
10,000AAC	500 to 12000A
MN93	200AAC
40 to 100A	±2% ± 1A
100 to 240A	±1% + 1A
MN193 100A 5A	100AAC
5AAC	250mA to 6A
SL261 10A 100A	100AAC/DC
40 to 100A	±15%
10AAC/DC	50mA to 10A
