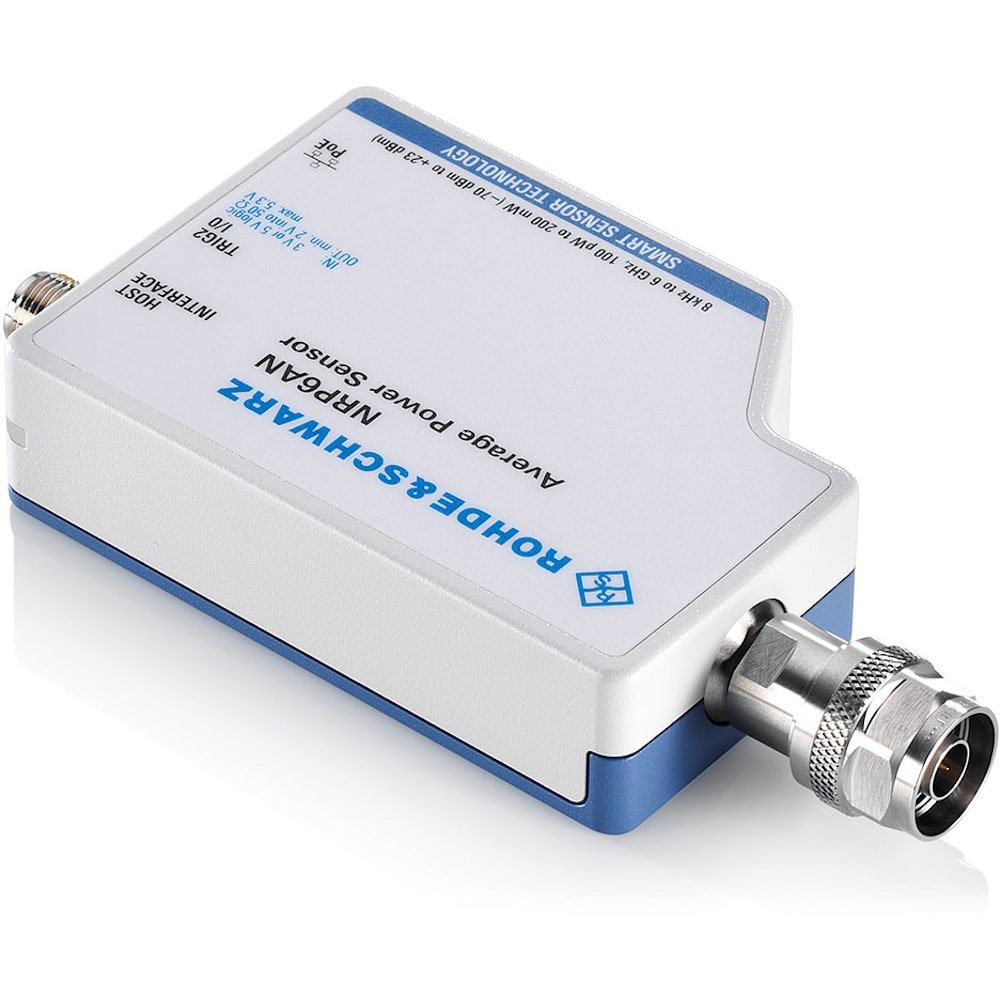

Rohde and Schwarz NRP6AN – Average Power Sensor (8 kHz to 6 GHz), LAN Model
$6,227.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Rohde and Schwarz NRP6AN - Average Power Sensor (8 kHz to 6 GHz), LAN Model Specs
| Frequency range | R&S NRP6A(N) |
| Impedance matching (SWR) | 8 kHz to < 20 kHz |
| 20 kHz to 2.4 GHz | < 1.13 (1.11) |
| > 2.4 GHz to 8.0 GHz | < 1.20 (1.18) |
| Power measurement range | 100 pW to 200 mW (-70 dBm to +23 dBm) |
| Maximum power | average power |
| peak envelope power | 2 W (+33 dBm) for max. 10 µs |
| Measurement subranges | path 1 |
| path 2 | -53 dBm to +5 dBm |
| path 3 | -33 dBm to +23 dBm |
| Transition regions | with automatic path selection3) |
| Dynamic response | rise time 10 %/90 % |
| Acquisition | sample rate (continuous) |
| accuracy of time base | ±5 ppm |
| Zero offset | initial, without zeroing |
| path 1 | < 235 (50) pW |
| path 2 | < 10.3 (2.2) nW |
| path 3 | < 0.93 (0.19) µW |
| path 1 | < 49 (28) pW |
| path 2 | < 2.1 (1.3) nW |
| path 3 | < 192 (108) nW |
| Zero drift6) | path 1 |
| path 2 | < 0.5 (0.1) nW |
| path 3 | < 47 (8) nW |
| Measurement noise7) | path 1 |
| path 2 | < 1.5 (0.9) nW |
| path 3 | < 136 (76) nW |
- Power sensor
