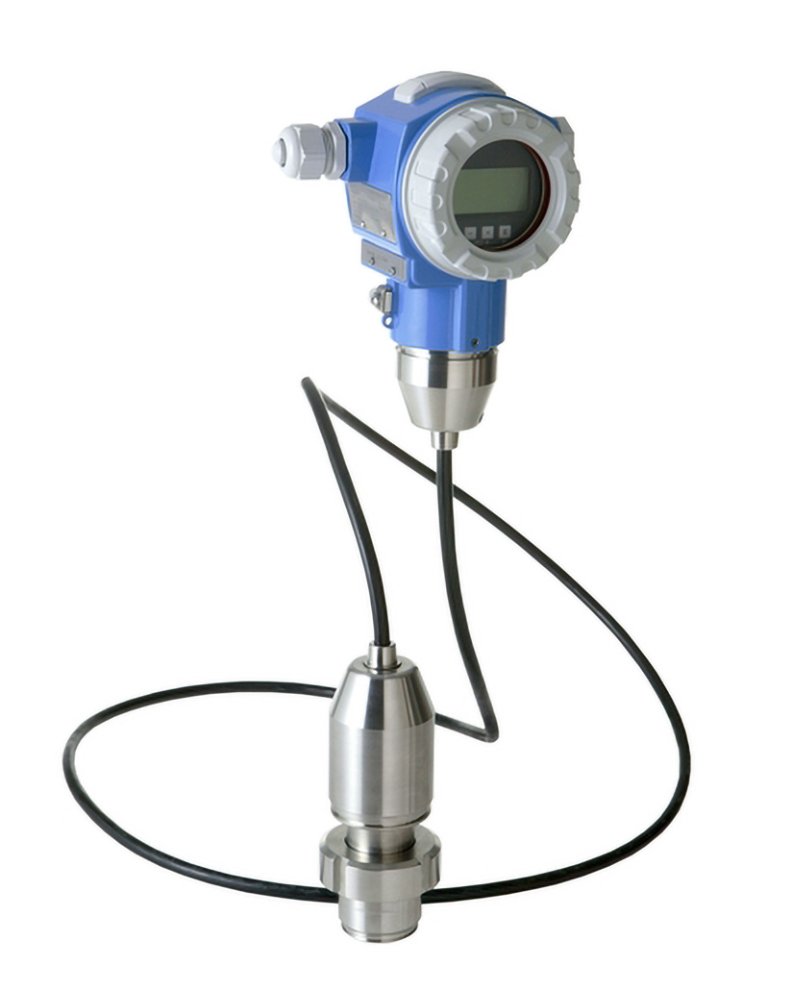

E+H Deltapilot FMB70 Pressure Sensor
$1,610.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Description
Description
The E+H Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.
E+H Deltapilot FMB70 Pressure Sensor Specs
| Feature | Threads, flanges and hygienic process connections |
| Feature | 14 to 212°F (–10 to 100°C) (275°F (135°C) for 30 minutes maximum) temperature |
| Feature | 0.1 to 10 bar rel. (1.5 to 150 psi) measuring range |
| Feature | ±0.075% accuracy |
| 4 to 20mA HART | |
| Feature | 10,5 to 45V DC |
| Ex ia | 10,5 to 30V DC |
| Feature | PROFIBUS PA / |
| FOUNDATION Fieldbus | |
| Feature | 9 to 32V DC (Non Ex) |
| Feature | 9 to 32V DC (Non Ex) |
| Feature | ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC |
| Feature | Overfill prevention WHG, SIL |
| Feature | EN10204-3.1, NACE MR0175, MR0103 |
| Feature | 3A, EHEDG, CoC ASME-BPE |
| Feature | GL/ DNV, NSF |
