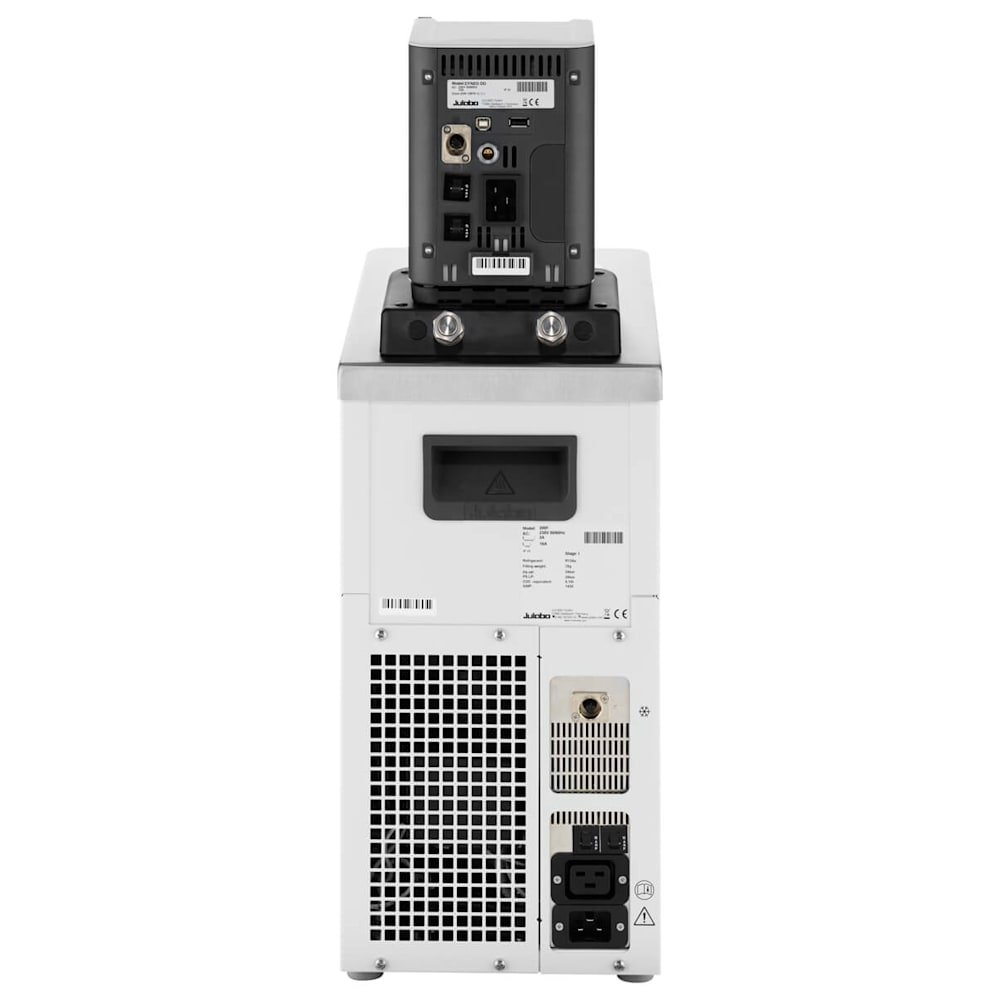

Julabo DD-200F Analog – DYNEO Refrigerated/Heating Circulator with Analog Output, 1 kW Heater, 3-4L Tank, 115V/60Hz
$5,761.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Julabo DD-200F Analog - DYNEO Refrigerated/Heating Circulator with Analog Output, 1 kW Heater, 3-4L Tank, 115V/60Hz Specs
| Model series | DYNEO |
| Category | Refrigerated - Heating Circulators |
| Working temperature range (°C) | -20 ... +200 |
| Temperature control | PID |
| Temperature stability (°C) | ±0.01 |
| Setting / display resolution | 0.01 °C |
| Temperature Display | 3.5" TFT Display |
| Pump capacity flow rate (l/min) | 8 ... 23 |
| Pump capacity flow pressure (psi) | 1.5 ... 8.7 |
| Viscosity max. (cSt) | 50 |
| Bath opening / bath depth (W x L / D inch) | 5.1 x 5.9 / 5.9 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| Filling volume (liters) | 3 ... 4 |
| Refrigerant stage 1 | R134a |
| Filling volume refrigerant stage 1 (g) | 70 |
| Global Warming Potential for | 1430 |
| Carbon dioxide equivalent stage 1 (t) | 0.1 |
| Digital interfaces | USB |
| Analog connection input / output | Optional |
| Ambient temperature | 5...40 °C |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (200 °C) | 200 W |
| Cooling Capacity (20 °C) | 200 W |
| Cooling Capacity (10 °C) | 170 W |
| Cooling Capacity (0 °C) | 150 W |
| Cooling Capacity (-10 °C) | 100 W |
| Cooling Capacity (-20 °C) | 20 W |
| Dimensions W x L x H (inch) | 9.1 x 15.4 / 25.6 |
| Weight (LBS) | 56.7 |
| Included with each unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) |
| Bath tank | Stainless steel |
| Bath cover | integrated |
| Cooling of compressor | Air |
