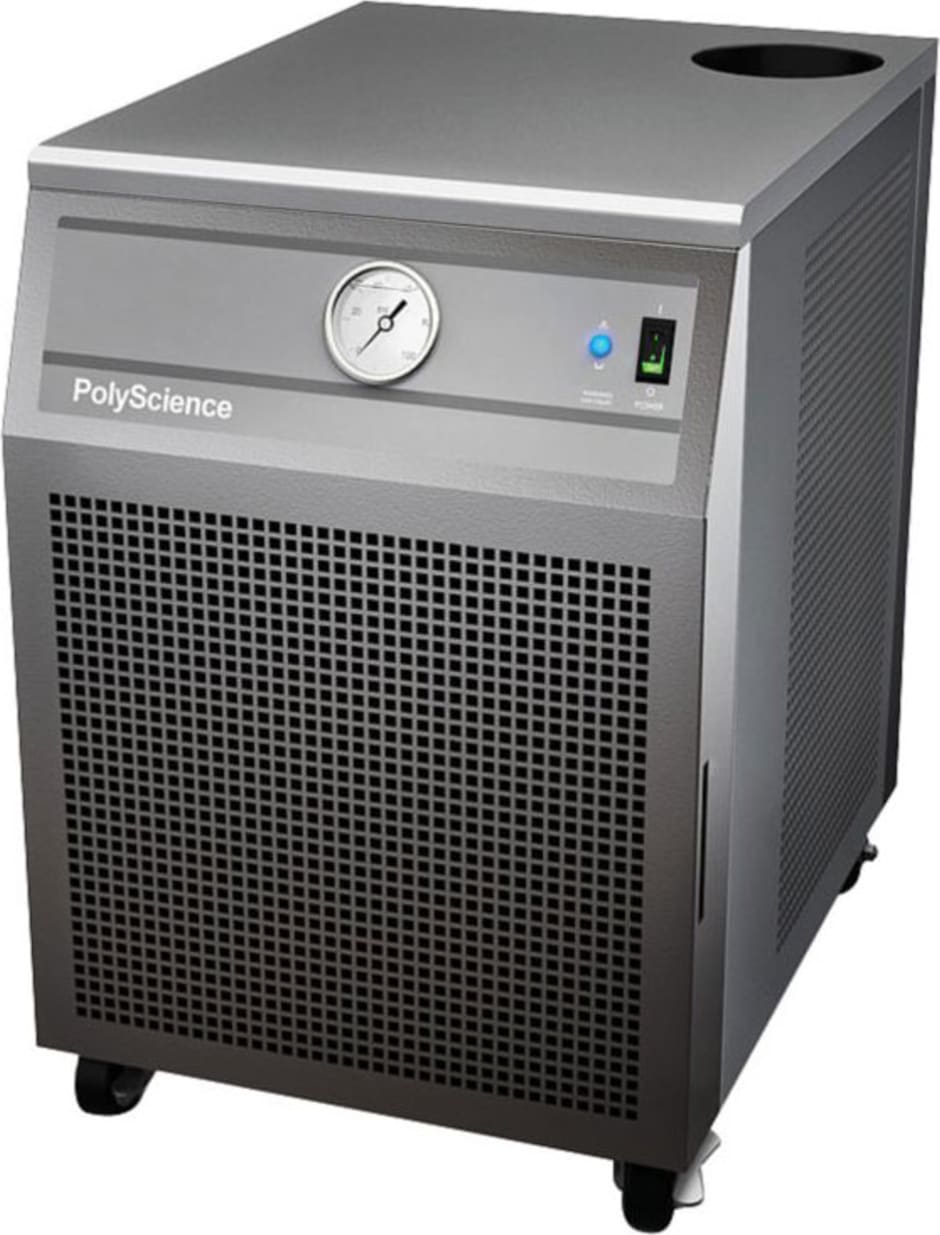

PolyScience 3370TBA12E Model 3370 Liquid-to-Air Recirculating Cooler with Turbine Pump, 240V, 50Hz
$2,219.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
PolyScience 3370TBA12E Model 3370 Liquid-to-Air Recirculating Cooler with Turbine Pump, 240V, 50Hz Specs
| Description | Liquid-to-Air Cooler, Turbine Pump |
| Working Temperature Range °C | Ambient +5° to 70°C |
| Pump Type | Turbine |
| Working Temperature Range °F | Ambient +10° to 158° |
| Working Temperature Range °C | Ambient +5° to 70°C |
| Reservoir Capacity (gallons) | 1.11 |
| Reservoir Capacity (liters) | 4.2 |
| Reservoir Cover | Screw-on Cap |
| Cleanable Air Filter | Yes |
| Cleanable Fluid Filter | Yes |
| Pump Type | Turbine |
| Pump Speed | Constant, Single Speed |
| Process Connections | 1/2" (F) NPT |
| Reservoir Liquid Level Indicator | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 20.5 x 15 x 22.3 in |
| Overall Dimensions (L x W x H) (cm) | 52 x 38.1 x 54.6 cm |
| Shipping Weight (pounds) | 132.0 |
| Shipping Weight (kilograms) | 59.9 |
| Part Number | 3370TBA11B |
| Maximum Pressure (psi) | 62.0 |
| Maximum Pressure (bar) | 4.30 |
| Maximum Pressure Flow Rate (gpm) | 5.40 |
| Maximum Pressure Flow Rate (l/min) | 20.5 |
| Cooling Capacity @ 20°C (W) | 500 based on 2°C ΔT 1000 based on 4°C ΔT 2000 based on 8°C ΔT 3000 based on 10°C ΔT 4000 based on 11°C ΔT ΔT = Process water temperature - ambient air temperature |
| Included Hardware | Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/5.5 |
| Regulatory Approvals | TUV |
| Part Number | 3370TBA12E |
| Maximum Pressure (psi) | 50.0 |
| Maximum Pressure (bar) | 3.40 |
| Maximum Pressure Flow Rate (gpm) | 4.50 |
| Maximum Pressure Flow Rate (l/min) | 17.1 |
| Cooling Capacity @ 20°C (W) | 500 based on 2°C ΔT 1000 based on 4°C ΔT 2000 based on 8°C ΔT 3000 based on 10°C ΔT 4000 based on 11°C ΔT ΔT = Process water temperature - ambient air temperature |
| Included Hardware | Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT |
| Electrical Requirements (VAC/Hz/Ph/A) | 240/50/1/3 |
| Regulatory Approvals | CE |
- Operator’s Manual
- IEC Power Cord
- Two sets of nylon Inlet/Outlet adapters:
- ½ inch male NPT to ½ inch barb 90° elbow
- ½ inch male NPT to 5/8 inch barb 90° elbow
