PolyScience 6860P46A270D 1.5HP Chiller with Positive Displacement Pump, Air-Cooled, 230V, 60Hz
$7,008.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
PolyScience 6860P46A270D 1.5HP Chiller with Positive Displacement Pump, Air-Cooled, 230V, 60Hz Specs
| Description | 1.5 HP Chiller, Positive Displacement Pump; Air-Cooled |
| Display | LED |
| Connectivity | Optional: RS232, RS485 |
| Working Temperature Range °C | 5° to 35° |
| Temperature Stability °C | ±0.5° |
| Temperature Calibration Capability | 1-point |
| Pump Type | Positive Displacement |
| Working Temperature Range °F | 41° to 95° |
| Working Temperature Range °C | 5° to 35° |
| Reservoir Capacity (gallons) | 3.5 |
| Reservoir Capacity (liters) | 13.25 |
| Reservoir/Tank Material | Polyethylene |
| Reservoir Cover | Screw-on Cap |
| Cleanable Air Filter | Yes |
| Cleanable Fluid Filter | Yes |
| Temperature Stability °F | ±0.9° |
| Temperature Stability °C | ±0.5° |
| Display | LED |
| Display Resolution (Read) | 0.1 |
| Pump Type | Positive Displacement |
| Process Connections | 1/2" (F) NPT |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Reservoir Liquid Level Indicator | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 30.5 x 19 x 26 in |
| Overall Dimensions (L x W x H) (cm) | 78 x 48 x 66 cm |
| Compressor Size (HP) | 1.5 |
| Refrigerant | R134a |
| Shipping Weight (pounds) | 340.0 |
| Shipping Weight (kilograms) | 154.0 |
| Part Number | 6860P46A270D |
| Maximum Pressure (psi) | 100.0 |
| Maximum Pressure (bar) | 6.90 |
| Maximum Pressure Flow Rate (gpm) | 3.50 |
| Maximum Pressure Flow Rate (l/min) | 13.2 |
| Cooling Capacity @ +10°C (W) | 4420 |
| Cooling Capacity @ +20°C (W) | 5200 |
| Cooling Capacity @ +30°C (W) | 5980 |
| Heater Wattage | 1000 |
| Electrical Requirements (VAC/Hz/Ph/A) | 230/60/1/21.1 |
| Regulatory Approvals | TUV |
| Part Number | 6850P46A270E |
| Maximum Pressure (psi) | 83.0 |
| Maximum Pressure (bar) | 5.72 |
| Maximum Pressure Flow Rate (gpm) | 2.90 |
| Maximum Pressure Flow Rate (l/min) | 11.0 |
| Cooling Capacity @ +10°C (W) | 3715 |
| Cooling Capacity @ +20°C (W) | 4371 |
| Cooling Capacity @ +30°C (W) | 5027 |
| Heater Wattage | 1000 |
| Electrical Requirements (VAC/Hz/Ph/A) | 240/50/1/20.8 |
| Regulatory Approvals | CSA, CUL, CE |
- Operator’s Manual
- Two sets of Inlet/Outlet Adapters: ½ inch male NPT x ½ inch hose barb and ½ inch male NPT x 5/8 inch hose barb (select models)
Be the first to review “PolyScience 6860P46A270D 1.5HP Chiller with Positive Displacement Pump, Air-Cooled, 230V, 60Hz”
Related products
Julabo FL2503 – Recirculating Cooler
$12,462.00

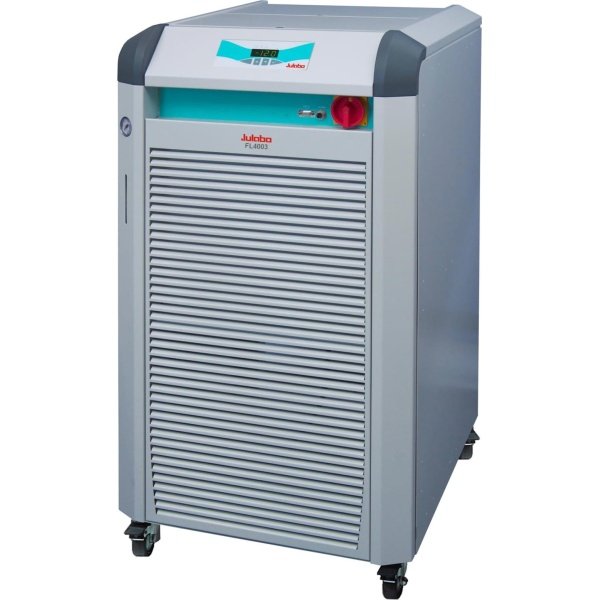

Julabo FL4006 – Recirculating Cooler
