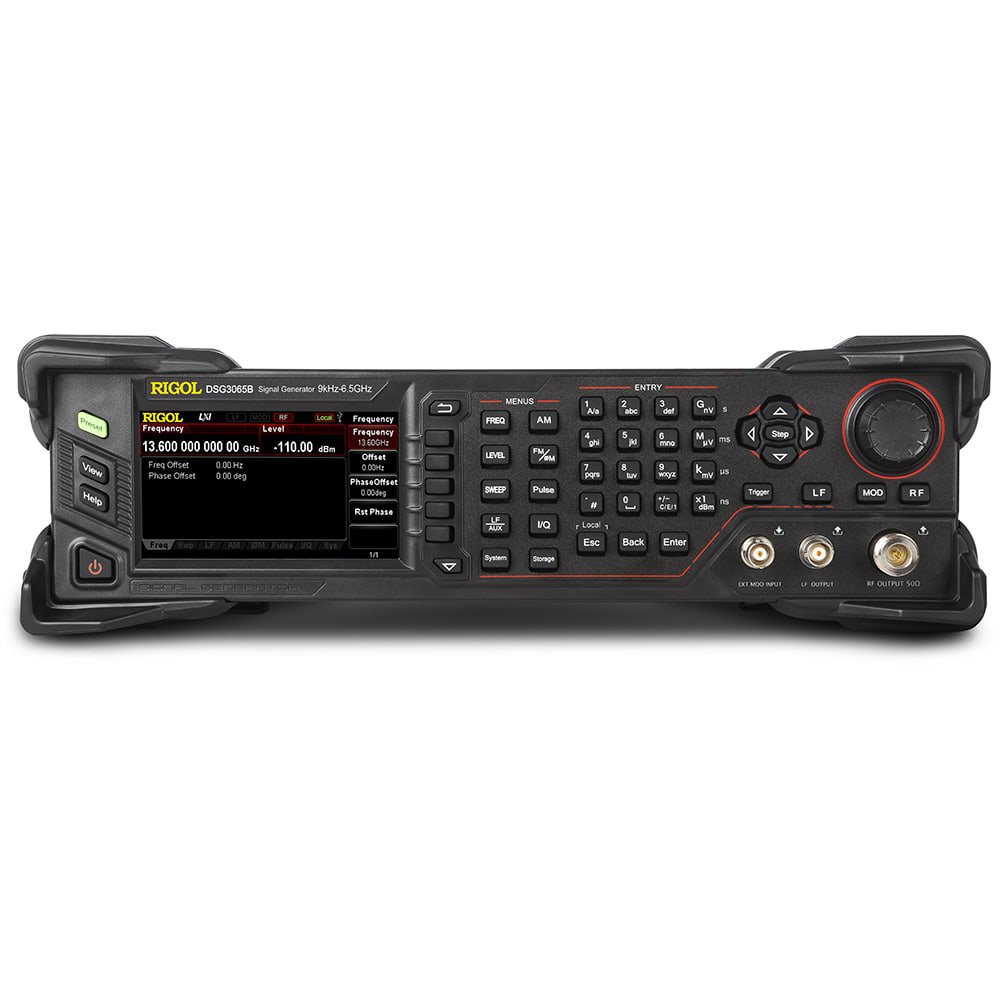

Rigol DSG3065B-OCXO – 6.5 GHz RF Signal Generator with OCXO Reference Clock
$5,890.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Rigol DSG3065B-OCXO - 6.5 GHz RF Signal Generator with OCXO Reference Clock Specs
| Frequency Range | 9 kHz to 6.5 GHz |
| Frequency resolution | 0.01 Hz |
| Setting time[1] | < 10 ms (typ.) |
| Band | Frequency range |
| 1 | f < 227.5 MHz |
| 2 | 227.5 MHz |
| 3 | 455 MHz ≤ f < 910 MHz |
| 4 | 910 MHz ≤ f < 1820 MHz |
| 5 | 1820 MHz ≤ f ≤ 3600 MHz |
| 6 | 3600 MHz < f ≤ 6500 MHz |
| 7 | 6500 MHz < f ≤ 13600 MHz |
| Reference frequency | 10 MHz |
| Initial calibration accuracy | ≤ 10 ppb |
| Temperature stability | Temperature range: 0℃ to 50℃ , reference to 25℃ |
| Aging rate | < 30 ppm/year |
| Internal reference frequency output | Frequency |
| Level | +5 dBm to +10 dBm |
| External reference frequency input | Frequency |
| Level | 0 dBm to +10 dBm |
| Maximum deviation | ±5 ppm |
| Sweep type | Step sweep (equally or logarithmically spaced frequency steps) List sweep (list with arbitrary frequency steps) |
| Sweep mode | Single, continuous |
| Sweep range | Full frequency range |
| Sweep shape | Triangle, ramp |
| Step change | Linear or logarithmic |
| Number of points | Step sweep |
| List sweep | 1 to 6001 |
| Dwell time | 20 ms to 100 s |
| Trigger mode | Auto, key, external, bus (USB and LAN) |
| Harmonic | CW mode |
| 2 MHz < f ≤ 6.5GHz, level ≤ +13 dBm | < -30 dBc |
| 6.5 GHz < f ≤ 12 GHz, level ≤ +10 dBm | < -30 dBc |
| 12 GHz < f ≤ 13.6 GHz, level ≤ 2 dBm | < -30 dBc |
| Sub-harmonic[2] | CW mode |
| 3.6 GHz < f ≤ 13.6 GHz | < -60 dBc, < -70 dBc（typ.） |
| Non-harmonic | CW mode, level > -10 dBm, carrier offset > 10 kHz |
| 100 kHz ≤ f ≤ 1.5 GHz | < -60 dBc, < -70 dBc (typ.) |
| 1.5 GHz < f ≤ 3.6 GHz | < -54 dBc, < -64 dBc (typ.) |
| 3.6 GHz < f ≤ 6.5 GHz | < -48 dBc, < -58 dBc (typ.) |
| 6.5 GHz < f ≤ 13.6 GHz | < -42 dBc, < -52 dBc (typ.) |
| SSB phase noise | CW mode, carrier offset = 20 kHz, 1 Hz measurement bandwidth |
| f=1 GHz | < -110 dBc/Hz, < -116 dBc/Hz (typ.) |
| f=6.5 GHz | < -98 dBc/Hz, < -102 dBc/Hz (typ.) |
| f=13.6 GHz | < -92 dBc/Hz, < -96 dBc/Hz (typ.) |
| Residual FM | CW mode, RMS value at f = 1 GHz |
| 0.3 kHz to 3 kHz | < 10 Hz rms, < 5 Hz rms (typ.) |
| 0.03 kHz to 20 kHz | < 50 Hz rms, < 10 Hz rms (typ.) |
- Power cord
- Calibration certificate
