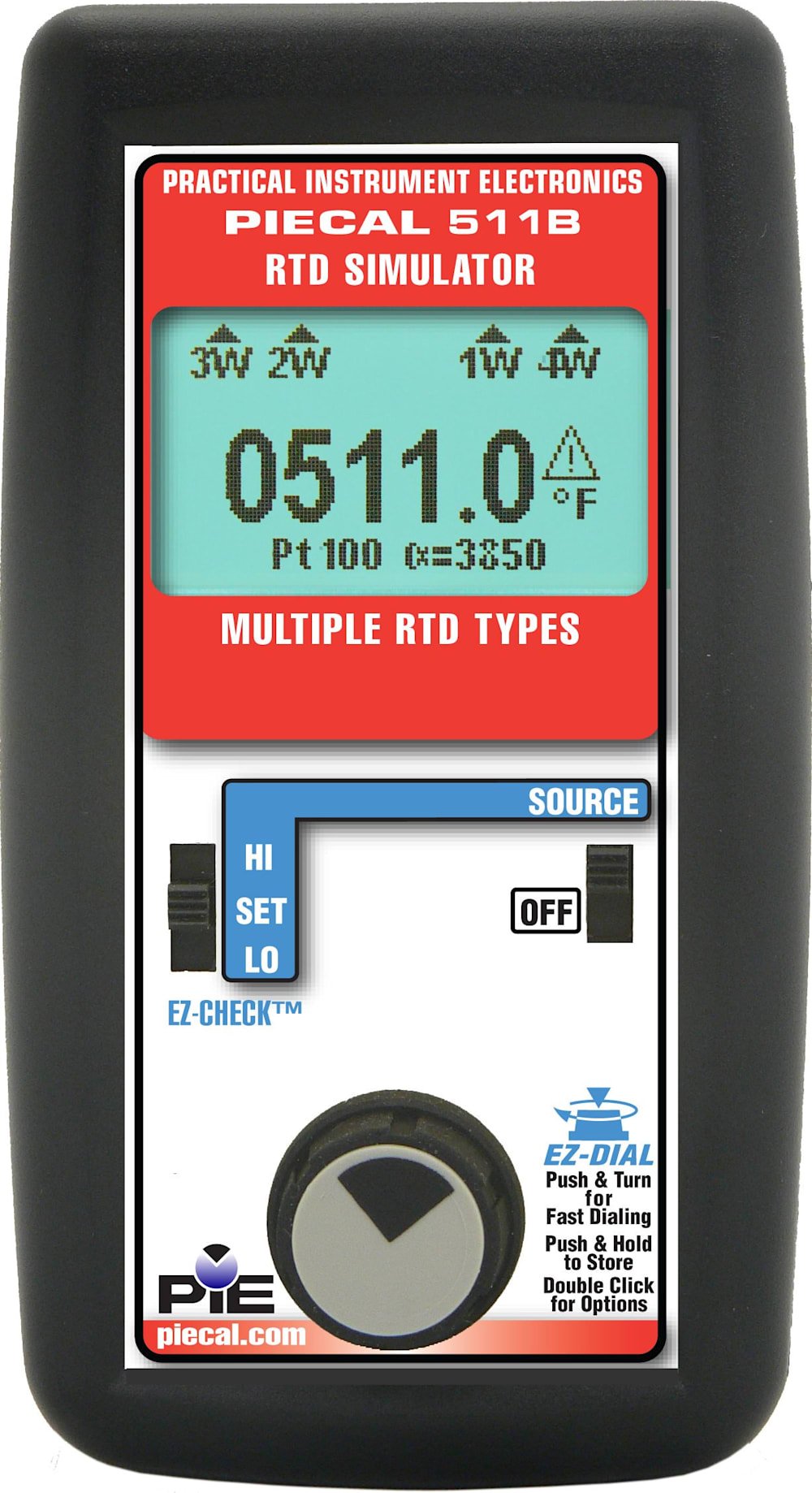

PIE Model 511B Ten Type RTD Plus Simulator
$753.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
PIE Model 511B Ten Type RTD Plus Simulator Specs
| Accuracy | ±(0.015% of Setting in Ohms + 0.05 Ohms) |
| Temperature Drift | ± 0.05 Ohms/°C |
| Operating Temperature Range | -25 to 60 °C (-10 to 140 °F) |
| Relative Humidity Range | 10 % ≤RH ≤90 % (0 to 35 °C), Non-condensing 10 % ≤RH≤ 70 % (35 to 60 °C), Non-condensing |
| Size | With Boot 4.96 x 2.73 x 1.79 inches, 126 x 69 x 45 mm (L x W x H) 5.67 x 3.06 x 2.05 inches, 144 x 78 x 52 mm (L x W x H) |
| Weight | With Boot 8.4 ounces, 0.24 kg (including batteries) 11 ounces, 0.32 kg (including batteries) |
| Batteries | Four “AA” Alkaline 1.5V (LR6) |
| Battery Life | 50 Hours |
| Optional NiMh Rechargeable battery kit | 120 VAC for North America Only; charger, four NiMh batteries, AC & DC cords [Part # 020-0103] |
| Low Battery | Low battery indication with nominal 1 hour of operation left |
| Protection against misconnection | Over-voltage protection to 60 V dc (rated for 30 seconds) |
| Display | High contrast graphic liquid crystal display. LED backlighting for use in low lit areas. |
| PIE 510B | Lowest cost unit. Source only, 1 RTD type |
| PIE 511B | Source only, 10 RTD types |
| PIE 211 | Source and Read, 9 RTD types. Patented auto RTD wire detection finds broken wires. Comes with rubber boot and 2 pocket hands free case |
| PIE 311 | 9 RTD types with secondary display of ohms. Higher accuracy. Patented auto RTD wire detection finds broken wires. Comes with rubber boot and 2 pocket hands free case. |

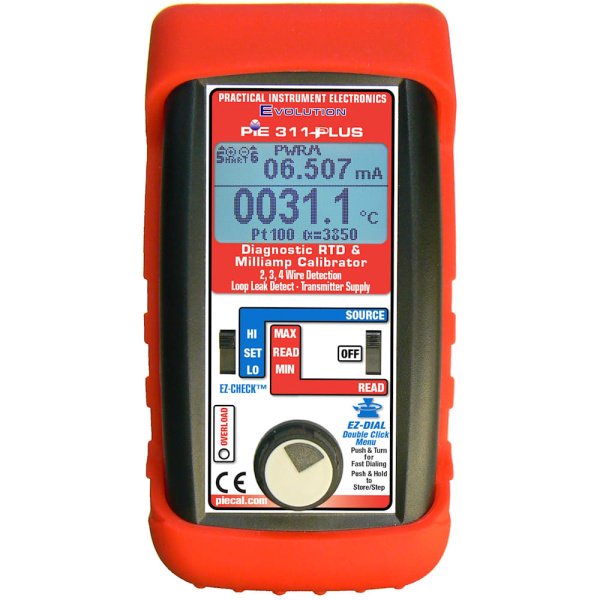

| PIE 311Plus | 12 RTD types with secondary display of ohms. Patented auto RTD wire detection finds broken wires. Includes full milliamp loop calibrator(model 334Plus) which has patented current leak detection feature. Comes with rubber boot and 2 pocket hands free case |
- Four "AA" Alkaline batteries, Certificate of Calibration
- 2 Red & 2 Black Leads with Retractable Shield Banana Plugs
- Spade Lugs
