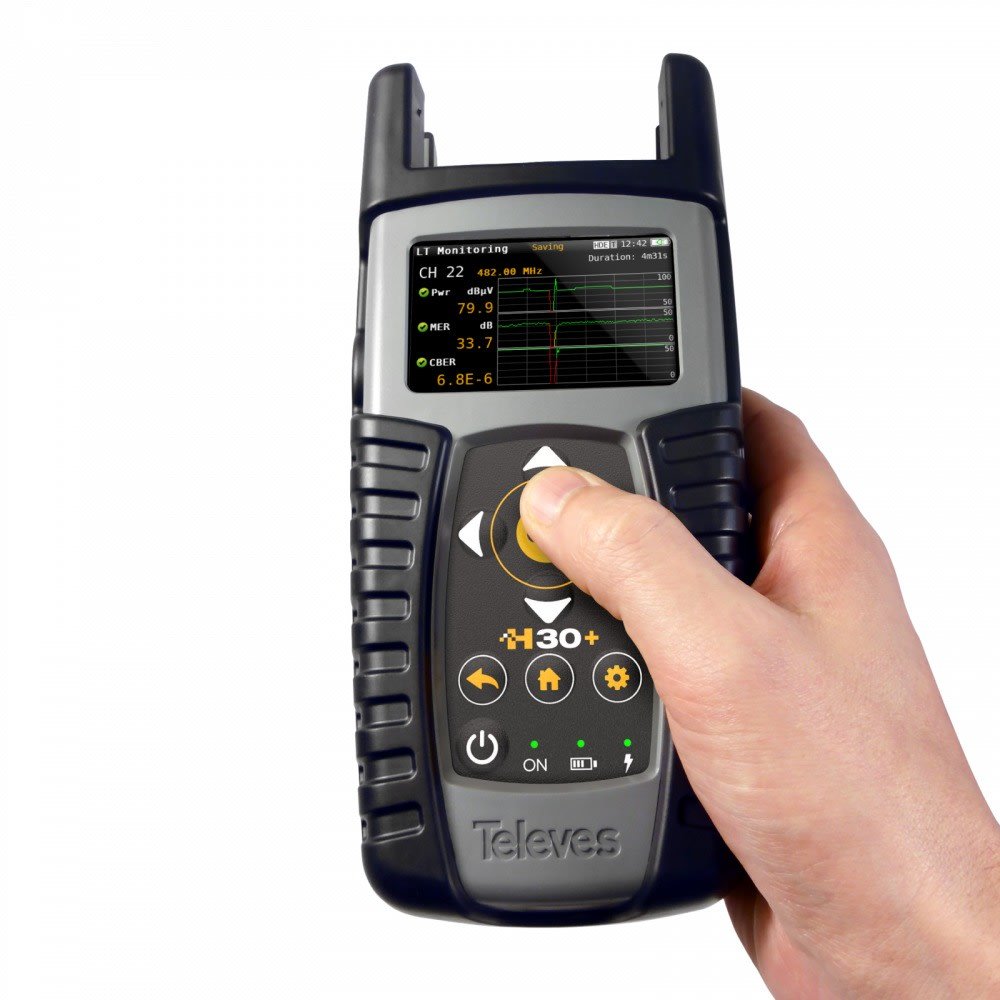

Televes H30+ – Spectrum analyzer with ATSC 1.0 and CATV cable systems, 5 – 1002 MHz
$1,039.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Televes H30+ - Spectrum analyzer with ATSC 1.0 and CATV cable systems, 5 - 1002 MHz Specs
| H30+ | 593980 |
| Range | 593980: 5 MHz to 1002 MHz |
| Resolution | 50 kHz |
| Tuning | Frequency or channel |
| Impedance | 75Ω F-type connector |
| Span | 2.5, 6.25, 12.5, 25, 62.5, 125, 250, 500 MHz and Full |
| Scale | 5 and 10 dB/div |
| Auto and manual reference level | ✓ |
| Range | Selectable 5 to 42MHz, 5 to 65MHz, 5 to 85MHz and 5 to 204MHz |
| Mode | Peak, Average, Min, and Real-time |
| Power | -15 to +50 dBmV (-35 to +60dBmV opt.593235) |
| Accuracy | ±2dB |
| Resolution | 0.1dB |
| Freq. Range | 42 - 1002MHz |
| MER | Up to 38dB |
| PreBER | 9.9E-2 - 1.0E-6 |
| PostBER | 1.0E-3 - 1.0E-8 |
| Constellation with Zoom Capability | ✓ |
| Freq. Range | 42 - 1002MHz |
| MER | Up to 38dB |
| LDPCBER | 1.0E-2 - 1.0E-6 |
| BCHBER | 1.0E-3 - 1.0E-8 |
| Echoes | ✓ |
| Constellation with Zoom Capability | ✓ |
| Freq. Range | 42 - 1002MHz |
| Demodulation | ITU-T J.83 Annex A/B standard |
| Support | 16, 32, 64, 128 and 256 QAM, QPSK |
| Symbol Rate | 2 to 6.9 MS/sec |
| Q.A.L. Technology (QAM Auto Lock) | Automatic detection of signal characteristics and modulation parameters |
| C/N | Up to 45 dB |
| MER | Up to 45 dB |
| Pre-BER and Post-BER (Annex B) | 1.0E-3 to 1.0E-8 |
| BER (Annex A) | 1.0E-3 to 1.0E-8 |
| Constellation with Zoom Capability | ✓ |
| Freq. Range | 42 MHz to 1002 MHz |
| Level measurement | -15 to +50 dBmV (-35 to +60dBmV opt.593235) |
| V/A | up to 30 dB |
| C/N | up to 54 dB |
| Accuracy | ±2 dB |
| Resolution | 0.1 dB |
| Factory channel plans | FCC STD, FCC EXT, FCC OFFAIR, CCIR, CCIR+LTE |
| Custom channel plans (learning plan) | ✓ |
| Channels | User selectable zoom up to all channels (analog or digital) |
| Measurements | Level bar representation and C/N BER/MER of the selected channel |
| Channels | Up to 16 channels (analog and/or digital) |
| Selectable markers | ✓ |
| Factory proFles | Headend, Fiber Nod, Trunk, Bridge, Line Ext, Tap, End Line, Ground, Modem/STB, Off Air |
| Custom profiles | up to 20 profiles |
| Range | ±5VDC to ±150VDC, ±5VAC to ±100VAC |
| Accuracy | ±(0.5V +1%) |
| DCHP Status | ✓ |
| Connection Status | ✓ |
| Ping | ✓ |
| Lost packets | ✓ |
| DS/US speeds | 593901: 20Mbps |
| Channel parameters | NIT, PAT, TSID, CBRT, number of services |
| Service parameters | SID, VID, AID, bitrate, encoding type |
| Video visualization | MPEG-2 / MPEG-4 |
| HEVC visualization | Up to 1080p (H30D+Adv or opt. 593252) |
| Modes | 3.1 / 3.0 / BPI+ |
| Dowstream | Up to 32 QAM channels and 2 OFDM channels of 192MHz |
| UpStream | Up to 8 QAM channels and 2 OFDM-A channels |
| Connect Status | DS and US frequency, DHCP, TOD, config. file name, security level, registration |
| Diplexer | Auto (config. file) or user selectable (5-85MHz / 108-1002MHz) (5-204MHz / 258-1218MHz) |
| Measurements | Bar diagram of DS and US channels. Power, MER, PreBER and PostBER of selected channel |
| Throughput Test | IP modem, DS and US maximun speed, ping current and average delay, lost packets, transfer speed |
| Modem Emulation | Connection status of the modem, instantaneous speed and size data sent through the modem |
| D3.1 Advanced Measurements | PLC: Frequency, level, MER, CWE Level: average, max, min MER: average, std, pct lNCP CWE Profile A: Corrected / Uncorrected CWEMER: average, std, pctl |
| Upstream Equalizers | Bar diagram of US channels equalizer, level, time and distance of selected channel |
| Throughput Test | DHCP Status, Connection Status, Ping Delay, Lost Packets, Upstream and Downstream Speed, Modem IP, maximum DS and US Speed, current and average PING delay, lost packets, transfer speed (via FTP). |
| Historical measurements in the selected channel | ✓ |
| Time interval between two consecutive measure shots | User defined |
| Bluetooth | ✓ |
| Wifi | ✓ |
| Automatic Wi-Fi networks scan | ✓ |
| Data shown | networks name, MAC, channels, access point power, protection access type |
| Views | list and map |
| Measurements | packets per second, min. and max. packet arrival time, IP payload bitrate, UDP payload bitrate, media loss rate, lost IP frames |
| Service inf | ✓ |
| Display | 2.8”TFT 400 x 240 full colour |
| Weight | H30+ : 529g (1.16lb)H30D+ & H30D+Adv: 633g (1.39lb) |
| Dimensions | 6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D) |
| AC Adaptor | Input: 100-240V ~ 50-60Hz Output: 12VDC, 2A |
| Battery | Li- Ion smart battery (7.2VDC, 2550mAh) |
| Operating Time | Up to 4 hours |
| Operating Temperature | -5ºC to 45ºC (23ºF to 104ºF) |
| Storage Temperature | -20ºC to 70ºC (-4ºF to 158ºF) |
| Humidity | 5% to 95% non-condensing |
| Ruggedness | Survives 1 m (3 ft) drop to concrete on all sides |
| Communication Interfaces | RJ45 10/100/1000-T Ethernet interface for Remote Control, Measurements, Datalog Retrieval and Automatic Software Updates |
| Storage | 1.5 GB (internal) for measurements |
| Power | up time < 10 seconds |
