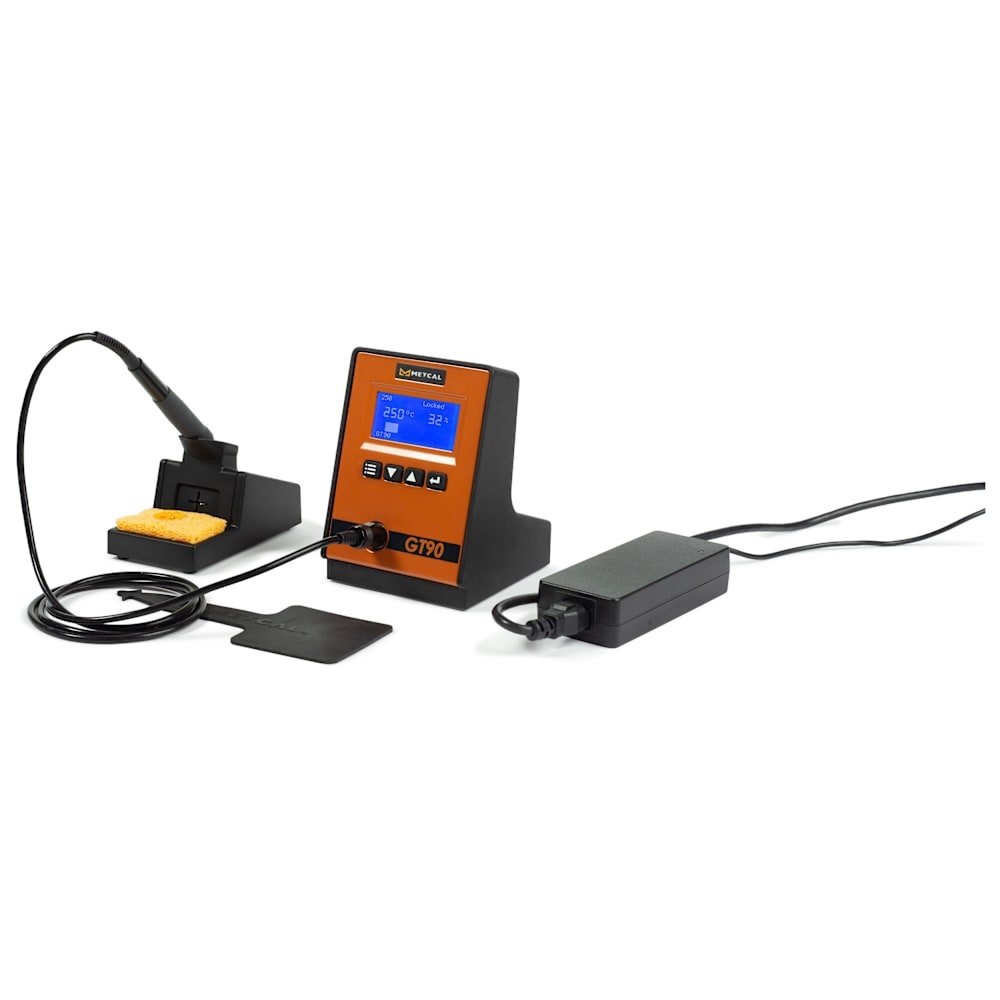

Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece
Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece - Image 2
Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece - Image 3
Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece - Image 4
Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece - Image 5

Metcal GT90-HP-T4 – 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece

$248.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Metcal-GT90HPT4
Category:
Brand:

Metcal GT90-HP-T4 - 90 Watt Station with Adjustable Temperature and HP-T4UF Handpiece Specs

Soldering Temperature Range200 to 450 °C (392 to 842 °F)
Input Line Voltage100 - 240 VAC (120 VAC for U.S.) grounded circuit, universal Input
Input Frequency50 / 60 Hz
Power Input90W Max
Dimensions (w x d x h)11.0 x 12.5 x 16 cm (4.3 x 4.9 x 6.1 in)
Weight of Station w/ Power Adapter1.68 kg (3.70 lb)
Communications1 x USB A
Standby Timer10 - 480 seconds
Sleep Timer1 - 100 minutes
Free Range Tip TemperatureYes
Tip Temperature Presets3
Tip-to-Ground Potential / Resistance< 2 mV / < 2 Ω
Tip Temperature AccuracyMeets or exceeds IPC-J-STD
Surface Resistivity105 - 109 Ω, ESD safe
CertificationsCE, TUV
Power Station Warranty1 Year
Hand-piece Connector8-pin circular DIN
Hand-piece1.5m (5'), burn proof, ESD safe

  • GT90 soldering station
    •
  • GT-HP-T4UF slim hand piece
    •
  • GT-HC-T4 heater cartridge
    •
  • GT-PA-120 power adapter
    •
  • GT-WS work stand
    •
  • MX-CP1 tip/cartridge removal pad
Note: tips sold separately
