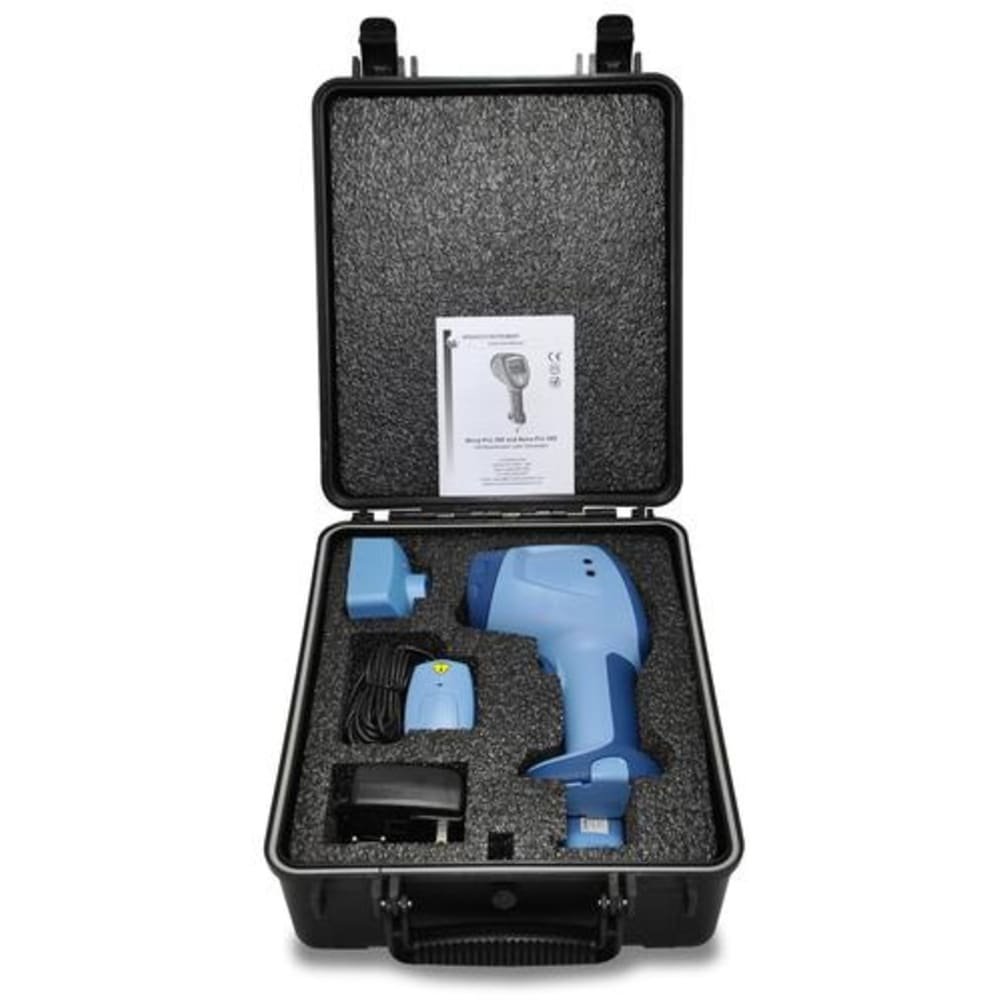

Monarch Nova-Pro UV365 Kit Stroboscopes/Tachometers Ultraviolet LED

Name: Monarch Nova-Pro UV365 Kit Stroboscopes/Tachometers Ultraviolet LED
Brand: Monarch
SKU: Monarch-Nova-Pro-UV365-Kit

In Stock

Commercial Pricing

Request for Quotations for Bulk Orders

SKU: Monarch-Nova-Pro-UV365-Kit

Brand: Monarch

Flash Range (FPM/RPM):	30-999,999
Display:	6 Digit Numeric and 5 Digit Alphanumeric LCD with Touch Keypad. High Contrast Blue Background/White Characters with Back Light
Accuracy/Resolution:	0.001% of Setting or +/-1 Lsd/6 Digits to 0.001
Light Output:	@300 mm/12 in: 1700μW/CM2 @1% duty cycle
Flash Duration:	Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs
Light Source:	12 High Output LED Array
Color Temperature:	Approx. 6200°K
External Triggers in/out:	TTL (12Vdc Max) input. Provides 3.3 Vdc TTL output
Tachometer Mode:	0-999,999 RPM with Integral Laser or External input
Programmable Memory:	Yes (10 set points)
Internal Phase Shift:	Yes
Phase Delay - Degrees:	-360.0 to 345.0 Degrees
Time Delay - milliseconds:	-50.000 to 50.000 Msec
Virtual RPM (Slow Motion):	-60.0 to 60.0 VRPMRemovable/Rechargeable standard Li -ion Battery Packs (Qty. 2) with 115/230 50/60 Hz recharging station
Power Supply (Battery):	Standard Battery Pack: 9.5 hours typical (6000 FPM, 2 deg. duty cycle) Hi-Capacity Battery Pack: 19 hours typical (6000 PPM, 2 deg. duty cycle) AC Power adapter (optional): Continuous
Operating Time:	15/230 Vac 50/60Hz AC Adapter with 6 ft. (3M) Cable and Interchangeable outlet Adapters (optional)
Power Supply A/C:	15/230 Vac 50/60Hz AC Adapter with 6 ft. (3M) Cable and Interchangeable outlet Adapters (optional)
Weight:	1.4 lbs. (635 Grams) with Standard Battery 1.5 lbs. (680 Grams) with Hi-capacity Battery
Size (LxWxH):	9.5 x 3.75 x 5.5 in. (241 x 95 x 140 mm)
Housing Material/Rating:	PC-ABS blend/IP54
