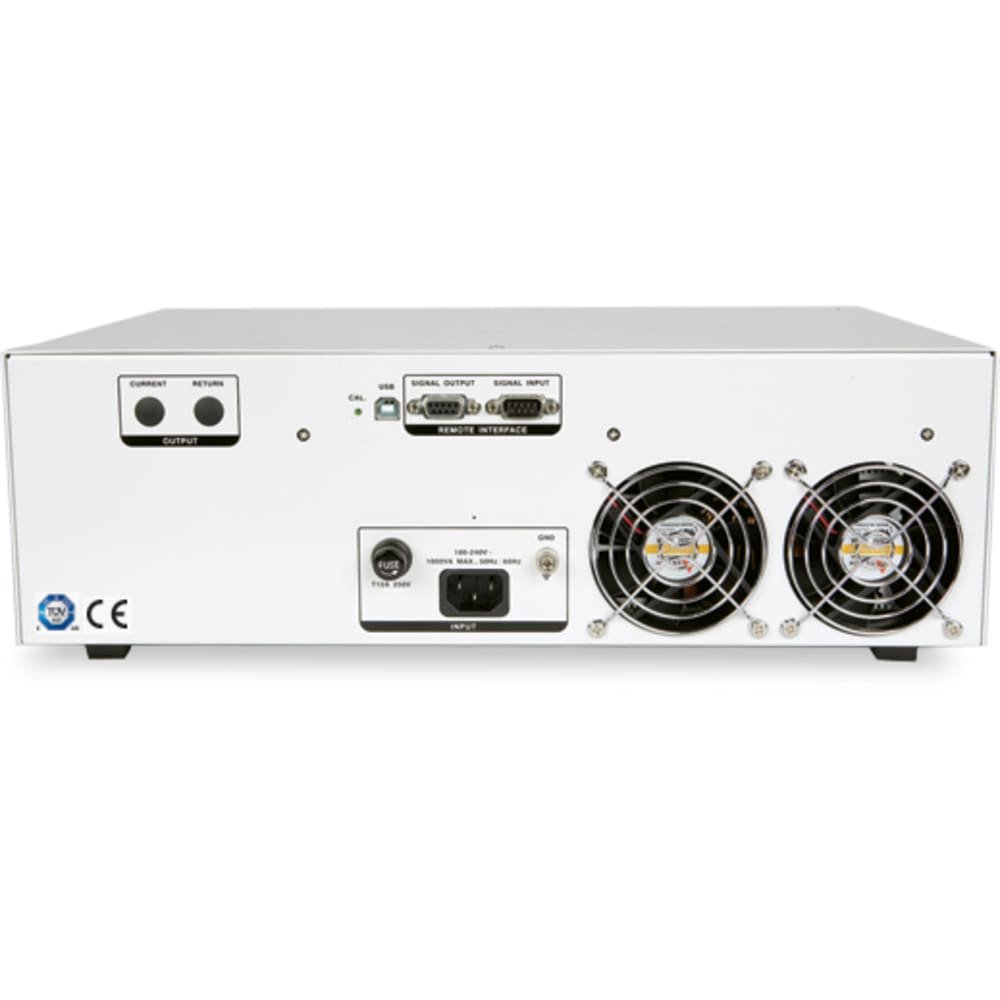

SCI 266 – Ground Bond Tester (60A)
$2,599.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
SCI 266 - Ground Bond Tester (60A) Specs
| Voltage | 264 |
| 266 | 100 - 240 VAC ± 10% Full Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 264 |
| 266 | 15A / 250 VAC Slow-Blow |
| Output Rating | 264 |
| 266 | 3.0 - 60.0 AAC |
| 264 | Voltage 6 VAC (fixed) |
| 266 | Voltage 12 VAC (fixed) |
| Output Frequency | 50/60 Hz user selectable Accuracy: ± 0.1% |
| Resistance Limit Settings | 264 |
| 266 | 0 - 150 mΩ for 30.1 - 60.0 A 0 - 200 mΩ for 15.1 - 30.0 A 0 - 600 mΩ for 3.0 - 15.0 A |
| Offset Limit Settings | 0 - 100 mΩ Resolution: 1 mΩ Accuracy: ± (2% of setting + 2 mΩ) |
| Dwell Timer | 0, 0.5 - 240.0 sec, (0=continuous), 0.1 sec/step |
| Ramp Timer | 0.1 sec fixed |
| Measurement Current | 264 |
| 266 | 0.0 - 60.0 AAC |
| Ohmmeter | 264 |
| 266 | 0 - 600 mΩ |
| Memories | 5 |
| Remote I/O | Input: |
| Output: | Pass, Fail, Test-in-Process |
| Voltage Drop Display (optional) | Display the voltage drop across the circuit instead of the resistance measurement. |
| Voltage Limit Settings | 264 |
| 266 | 0.00 - 9.00 VAC |
| Offset Limit Settings | 264 |
| 266 | 0.00 - 6.00 VAC |
| Security | Option to turn On or Off, when On you can switch between two security levels: 1. Run - Operator can only run a test. No ability to change memory locations or edit test parameters. 2. Mem - Operator can run a test and change memory locations. No ability to edit test parameters. |
| Safety Mark | CE/cTUVus |
| Dimensions (W x H x D) | 264 |
| 266 | 16.93" x 5.20" x 11.81" (430 x 132 x 300 mm) |
| Weight | 264 |
| 266 | 20.25 lbs. (9.2 Kg) |
- 60 Amp High Current Lead 6 ft. (1.8m), part # 99-10239-01
- 60 Amp High Current Return Lead 6 ft. (1.8m), part # 99-10238-01
- Input Power Cable USA, part # 99-10164-01
- Fuse, part # 99-10210-01
- NIST Traceable Calibration Certificate
