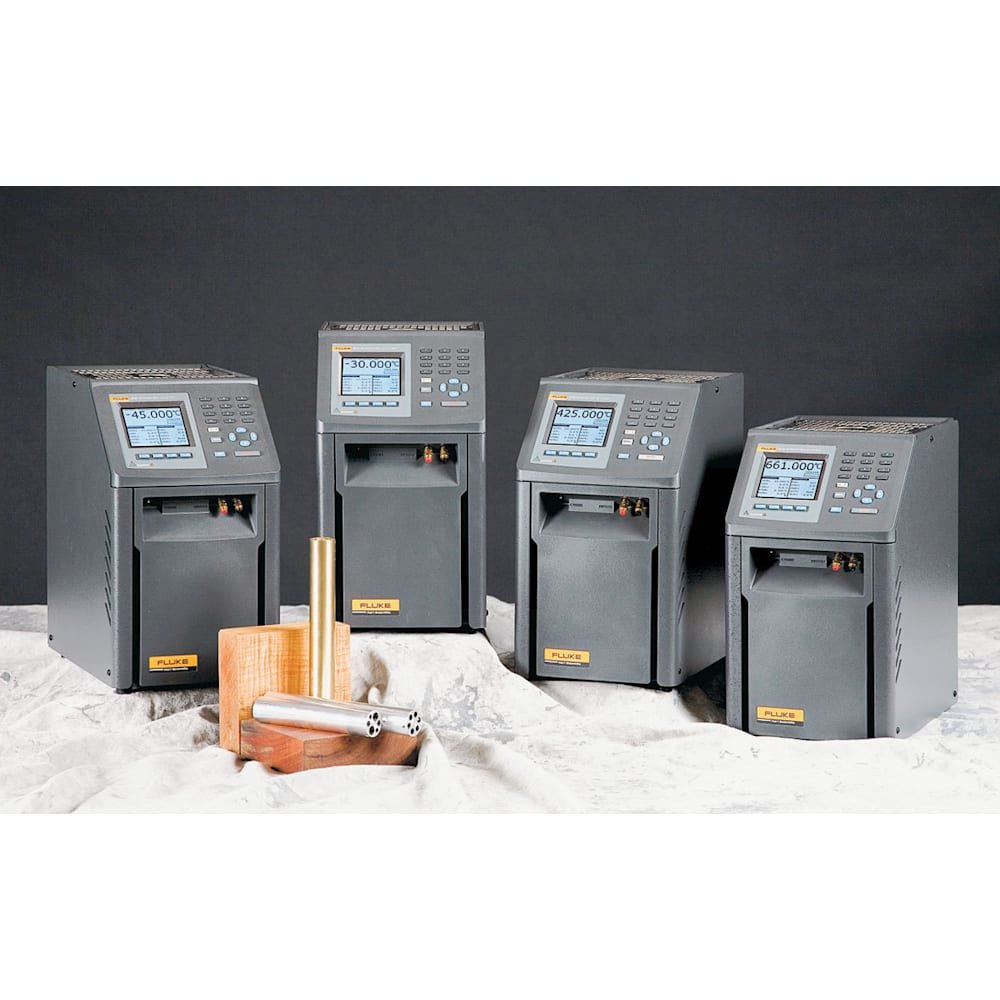

Fluke 9170-B-156 Metrology Well with 9170-INSB
Fluke 9170-B-156 Metrology Well with 9170-INSB - Image 2
Fluke 9170-B-156 Metrology Well with 9170-INSB - Image 3
Fluke 9170-B-156 Metrology Well with 9170-INSB - Image 4

Fluke 9170-B-156 Metrology Well with 9170-INSB

$9,738.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Fluke-9170-B-156
Category:
Brand:

Fluke 9170-B-156 Metrology Well with 9170-INSB Specs

91709171
Range (at 23 °C ambient)–45 °C to 140 °C   (–49 °F to 284 °F)
Display Accuracy± 0.1 °C full range
Stability± 0.005 °C full range
Axial Uniformity (60 mm)± 0.1 °C at –45 °C   ± 0.04 °C at –35 °C   ± 0.02 °C at 0 °C   ± 0.07 °C at 140 °C
Radial Uniformity± 0.01 °C full range
Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes)± 0.02 °C at –45 °C   ± 0.005 °C at –35 °C   ± 0.01 °C at 140 °C
Hysteresis0.025 °C
Well Depth160 mm (6.3 in)
Resolution0.001 °C
DisplayLCD, °C or °F, user-selectable
Key PadTen key with decimal and +/- button. Function keys, menu key, and °C / °F key.
Cooling Time44 min: 23 °C to –45 °C   19 min: 23 °C to –30 °C   19 min: 140 °C to 23 °C
Heating Time32 min: 23 °C to 140 °C   45 min: –45 °C to 140 °C
Size (HxWxD)366 x 203 x 323 mm (14.4 x 8 x 12.7 in)
Weight14.2 kg (31.5 lb)
Power115 V ac (± 10 %), or   230 V ac (± 10 %), 50/60 Hz, 550 W
Computer InterfaceRS-232 Interface with 9930 Interface-it control software included
Traceable Calibration (NIST)Data at –45 °C, 0 °C, 50 °C, 100 °C, and 140 °C
SpecificationsBuilt-in Reference Input
Temperature Range–200 °C to 962 °C (–328 °F to 1764 °F)
Resistance Range0 Ω to 400 Ω, auto-ranging
CharacterizationsITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d
Resistance Accuracy0 Ω to 20 Ω: 0.0005 W   20 Ω to 400 Ω: 25 ppm
Temperature Accuracy (does not include probe uncertainty)10 Ω PRTs:   ± 0.013 °C at 0 °C   ± 0.014 °C at 155 °C   ± 0.019 °C at 425 °C   ± 0.028 °C at 700 °C
Resistance Resolution0 Ω to 20 Ω: 0.0001 Ω   20 Ω to 400 Ω: 0.001 Ω
Measurement Period1 second
Probe Connection4-wire with shield, 5-pin DIN connector
CalibrationNVLAP accredited (built-in reference input only), NIST-traceable calibration provided

  • 9170 Metrology Well
    •

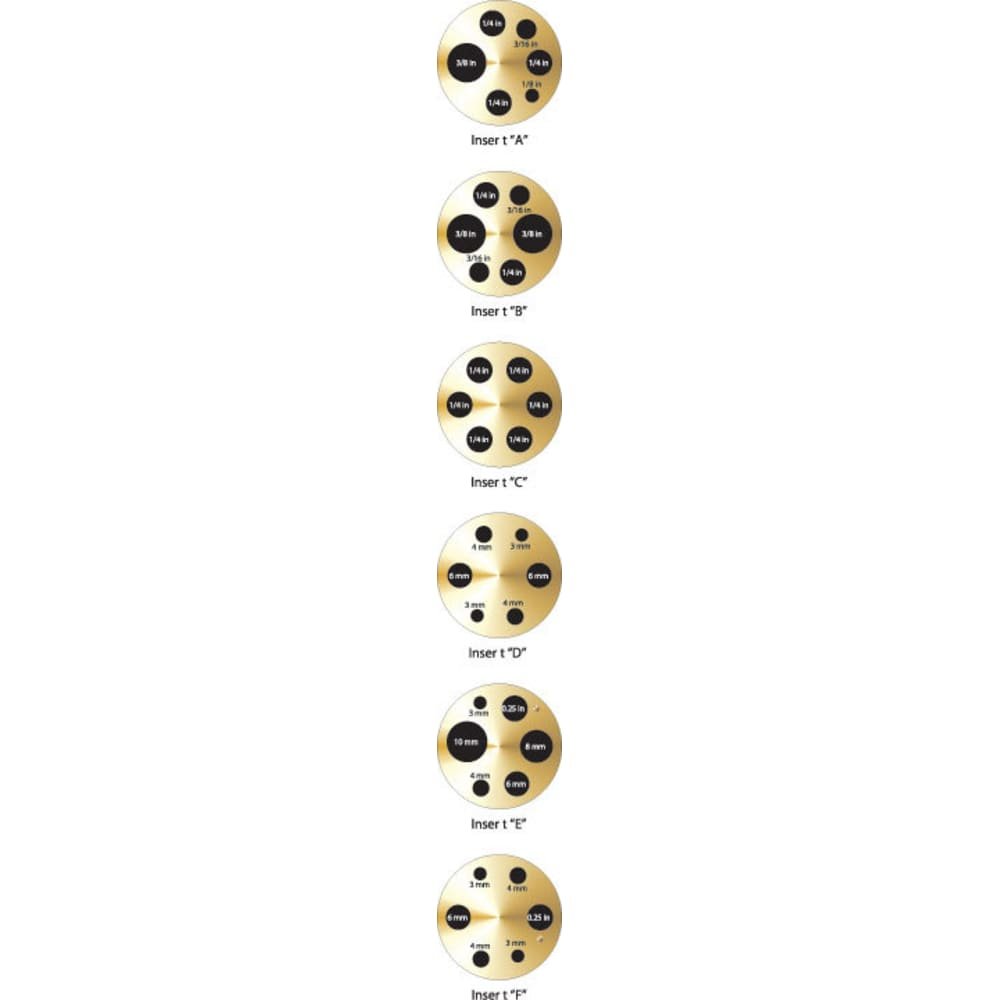

  • 9170-INSX Insert (X=A, B, C, D, E, or F)
    •
  • Power Cord
    •
  • RS-232 Cable
    •
  • Getting Started Guide
    •
  • User’s Guide
    •
  • Report of Calibration and calibration label. Accredited ISO17025 Calibration
    •
  • Well Insulator
    •
  • Tongs (insert removal tool)
    •
  • 9930 Interface-it control software
    •
  • User’s Guide
