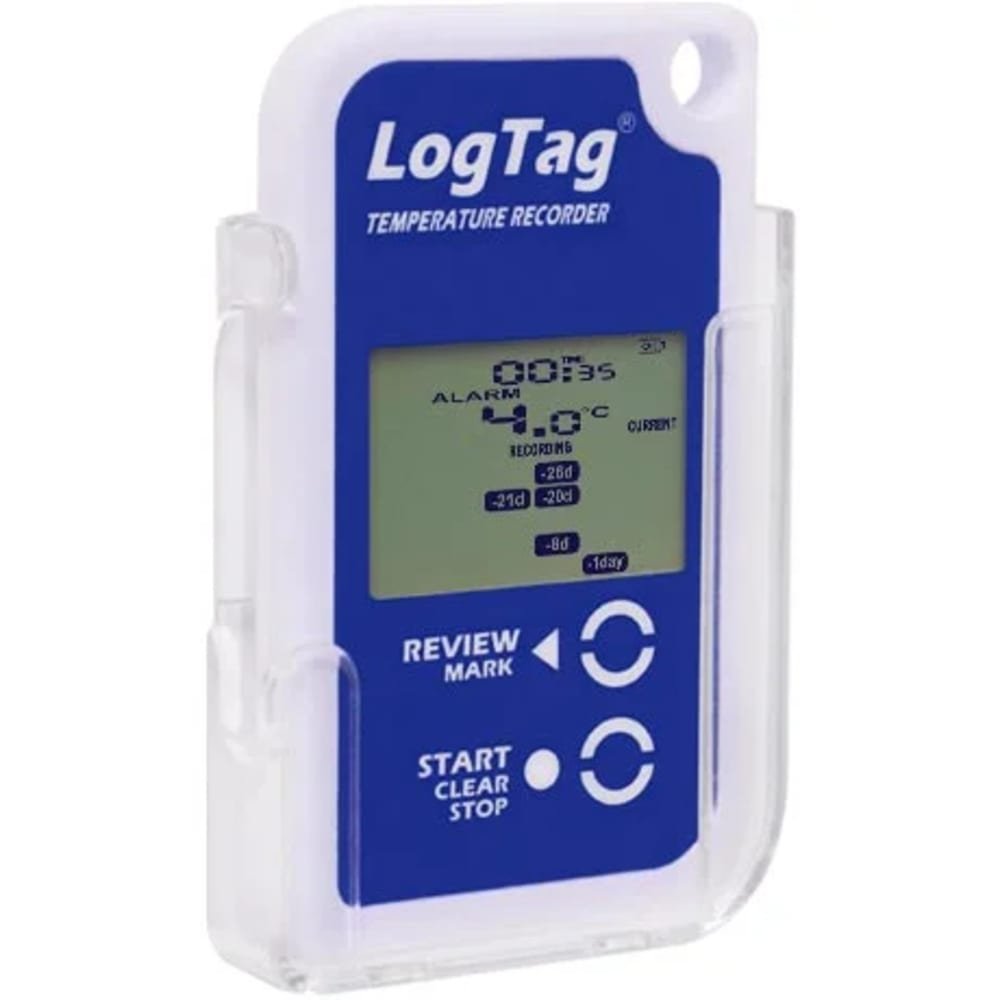

Logtag TRID30-7F – Multi-Use Logger with 30 Day Display (Fixed Battery), Up to 7,770 recordings, -30°C to +60°C
$48.00
In Stock
Fixed-asset environmental laboratory monitoring dictates the operational framework of this hardware. The Logtag TRID30-7F visual diagnostic logger features a sealed CR2450 battery cell delivering a continuous 2 year operational life loop. Housing a 7.770 record logging engine, it presents historical min-max threshold statistics instantly on an integrated segmented 30-day LCD interface layout.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Logtag TRID30-7F - Multi-Use Logger with 30 Day Display (Fixed Battery), Up to 7,770 recordings, -30°C to +60°C Specs
| Brand | LogTag |
| Product Model | TRID30-7R (Replaceable Battery). TRID30-7F (Fixed Battery). |
| Sensor Measurement Range | -30°C to +60°C (-22°F to +140°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | -10°C to +40°C (14°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for measurements from -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.5°F) for other measurements – typically ±0.5°C (0.9°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F). 0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s) in EN12830:1999. |
| Recording Capacity | 7,770 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Day summary statistics memory (for display on LCD) | up for 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to hourly. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
| Recording Indication | State indicator “REC” |
| Download Time | Typically less than 5 seconds for full memory (7,770 readings), depending on computer or readout device used. |
| Environmental | IP65 (roughly equivalent to NEMA 4) when vertically mounted or hung. |
| Power Source | TRID30-7R (Replaceable Battery): CR2032 3V LiMnO2 TRID30-7F (Fixed Battery): CR2450 3V LiMnO2. |
| Battery Life | TRID30-7R (Replaceable Battery): 1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). TRID30-7F (Fixed Battery): 1 year storage, followed by 2 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | Interface Cradle |
| Software | LogTag® Analyzer |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | TRID30-7R: 41g. TRID30-7F: 43g. |
| Case Material | Polycarbonate. |
