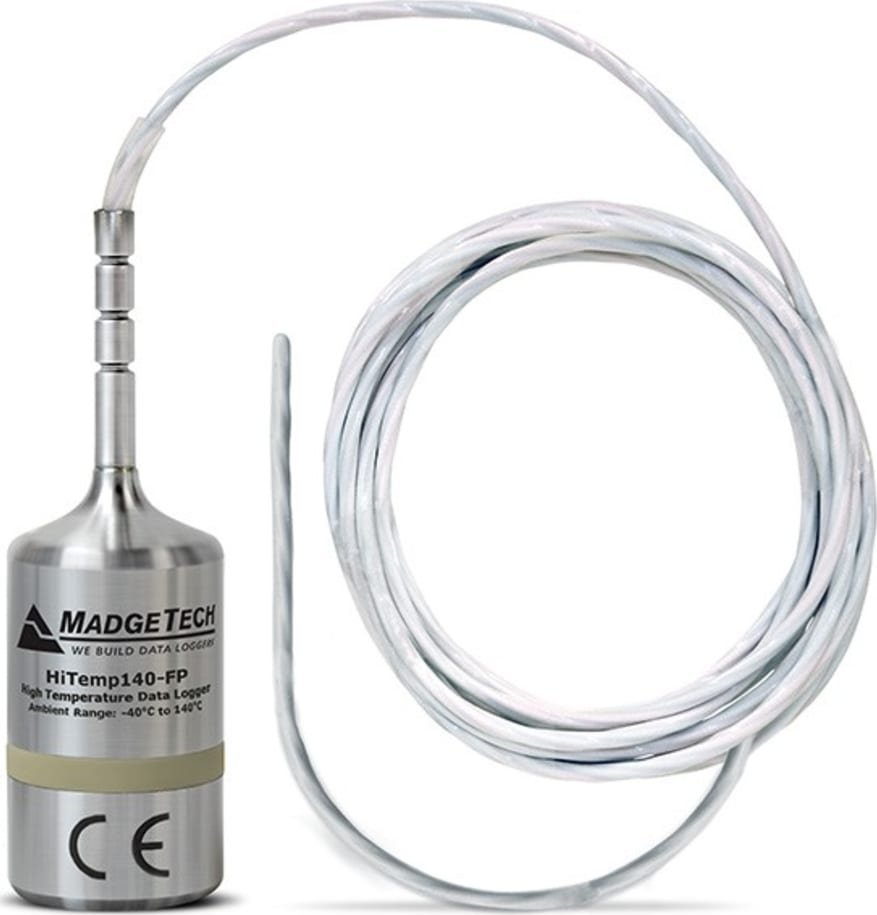

MadgeTech HiTemp140-FP-72 – 72 inch Flexible Probe, Flat Thermshield Temperature Data Logger
$350.00
In Stock
The MadgeTech HiTemp140-FP-72 recording instrument ensures highly accurate thermal deployment options by utilizing 1 specialized channel built explicitly with an ultra-long 72 inch flexible ribbon RTD probe configuration. This flexible instrument pairs with a specialized Flat Thermshield thermal barrier block to survive prolonged exposure inside harsh manufacturing kilns and autoclave chambers.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
MadgeTech HiTemp140-FP-72 - 72 inch Flexible Probe, Flat Thermshield Temperature Data Logger Specs
| Brand | Onset |
| Memory | 32,700 |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at 25 °C/77 °F) User Replaceable Battery |
| Material | 316 Stainless Steel |
| HiTemp140-1 Body: | 1.55 in x 0.97 in dia. (40 mm x 25 mm dia.) Probe: 1 in x 0.125 in dia. (0.188 in transitional dia.) 25 mm x 3.2 mm dia. (4.8 mm transitional dia.) Body (for 2 in, 5.25 in, 7 in;): 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.) |
| HiTemp140-2 : | 2.0 in x 0.188 in dia. (51 mm x 4.8 mm) |
| HiTemp140-2-TD: | 2.0 in x 0.125 in dia. (0.188 in transitional dia.) (51 mm x 3.2 mm dia. (4.8 mm transitional dia.) |
| HiTemp140-5.25: | 5.25 in x 0.188 in dia. (134 mm x 4.8 mm) |
| HiTemp140-5.25-TD: | 5.25 in x 0.125 in dia. (0.188 in transitional dia.) (134 mm x 3.2 mm dia. (4.8 mm transitional dia.) |
| HiTemp140-7: | 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH (Body of Logger Cannot Exceed 140 °C) |
| Required Interface Package | IFC400 |
| Approvals | CE |
| Weight | 0.5000 LBS |
| Temperature Sensor | 100 Ω Platinum RTD |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F) ±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F) ±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F) |
| Probe Temperature Range | -200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C) |
