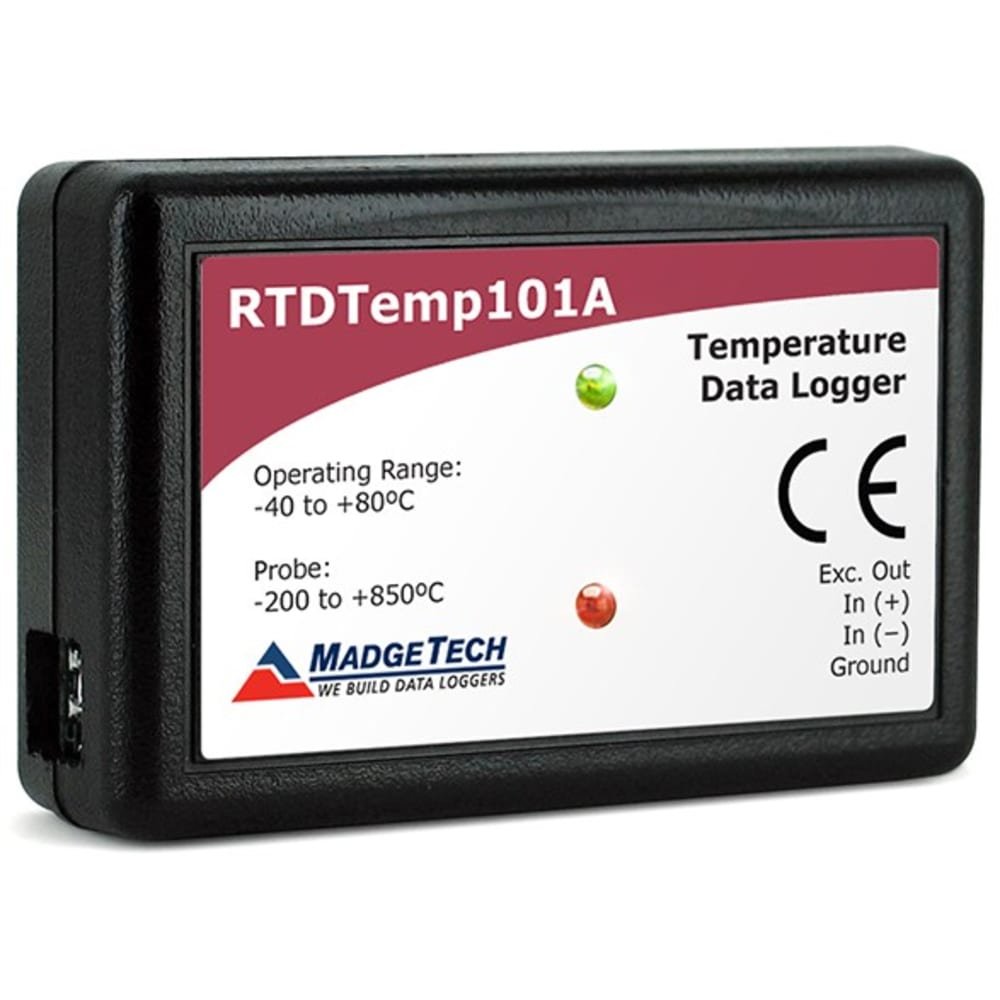

MadgeTech RTDTemp101A – RTD based Temperature Recorder, ±0.04 °C Accuracy
$142.00
In Stock
An exceptional ±0.04 °C system tracking precision dictates the operational framework of this hardware. The MadgeTech RTDTemp101A industrial recording module features 1 high-resolution channel engineered explicitly for external 100-ohm platinum RTD probe lines. This ultra-accurate tool provides a massive 671.088 reading storage capacity, operating on a long-life 10 year internal lithium battery frame.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
MadgeTech RTDTemp101A - RTD based Temperature Recorder, ±0.04 °C Accuracy Specs
| Brand | N/A |
| Memory | 1,340,000 readings; software configurable memory wrap 670,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0625 LBS |
| Temperature Sensor | External 100 Ω RTD (Sold Separately) |
| Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent) Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F) *Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range. |
- Standard calibration certificate
