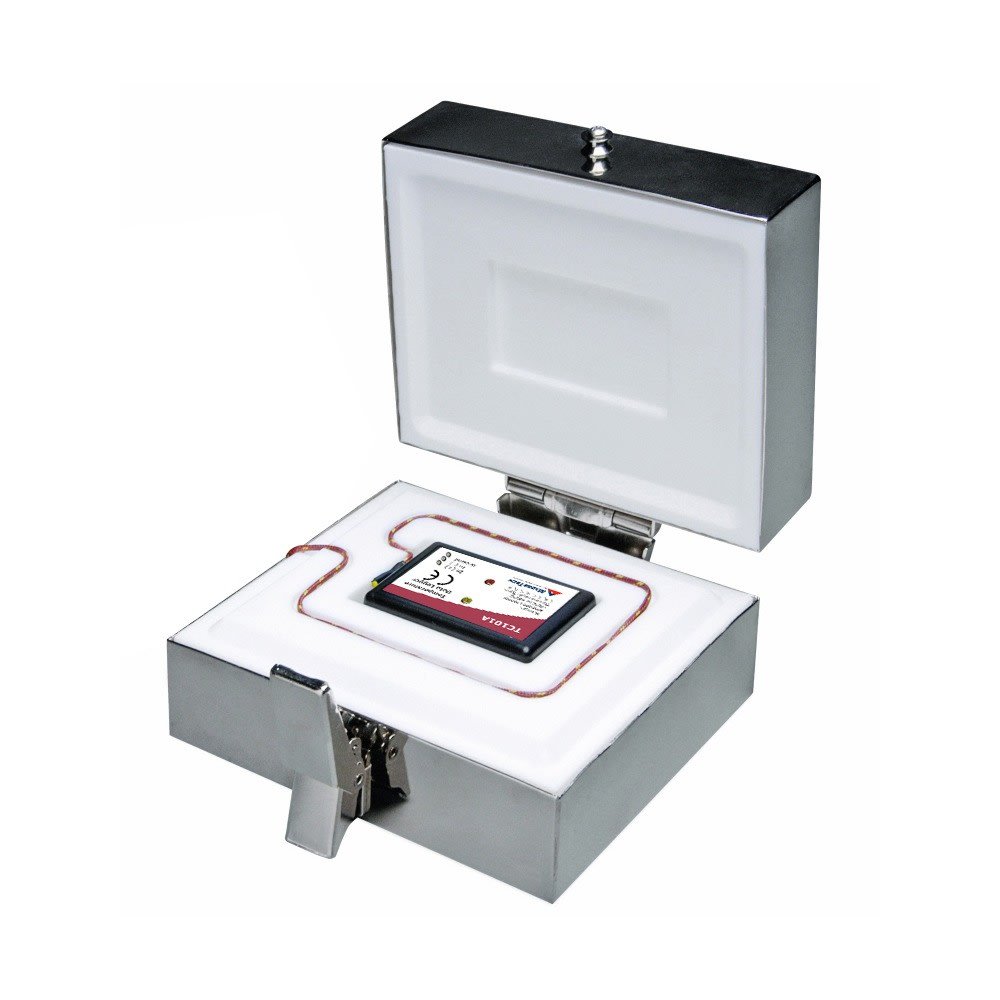

MadgeTech ThermoVault – Oven Temperature Profiler, thermal insulated, thermocouple-based temperature data logging system for oven profiling
$682.00
In Stock
Extreme thermal baking parameters dictate the operational framework of this hardware. The MadgeTech ThermoVault oven profiler features a single external Type K thermocouple channel protected within a heavy-duty, thermally insulated stainless steel barrier box. This specialized tracking setup logs 500.000 internal points and withstands ambient kiln operations up to 350 °C for 25 minutes safely.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
MadgeTech ThermoVault - Oven Temperature Profiler, thermal insulated, thermocouple-based temperature data logging system for oven profiling Specs
| Brand | N/A |
| Memory | 500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 Years typical at a 15 minute reading rate |
| Material | 304 stainless steel w/ PTFE insulation |
| Dimensions | 5.1 in x 4.5 in x 2.5 in (129 mm x 113 mm x 64 mm) |
| Operating Environment | See specifications sheet, 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Weight | 2.0000 LBS |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.25 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
- (1) TC101A: Thermocouple-Based Temperature Data Logger
- (1) Thermally Insulated Enclosure
- (1) Type K Thermocouple
