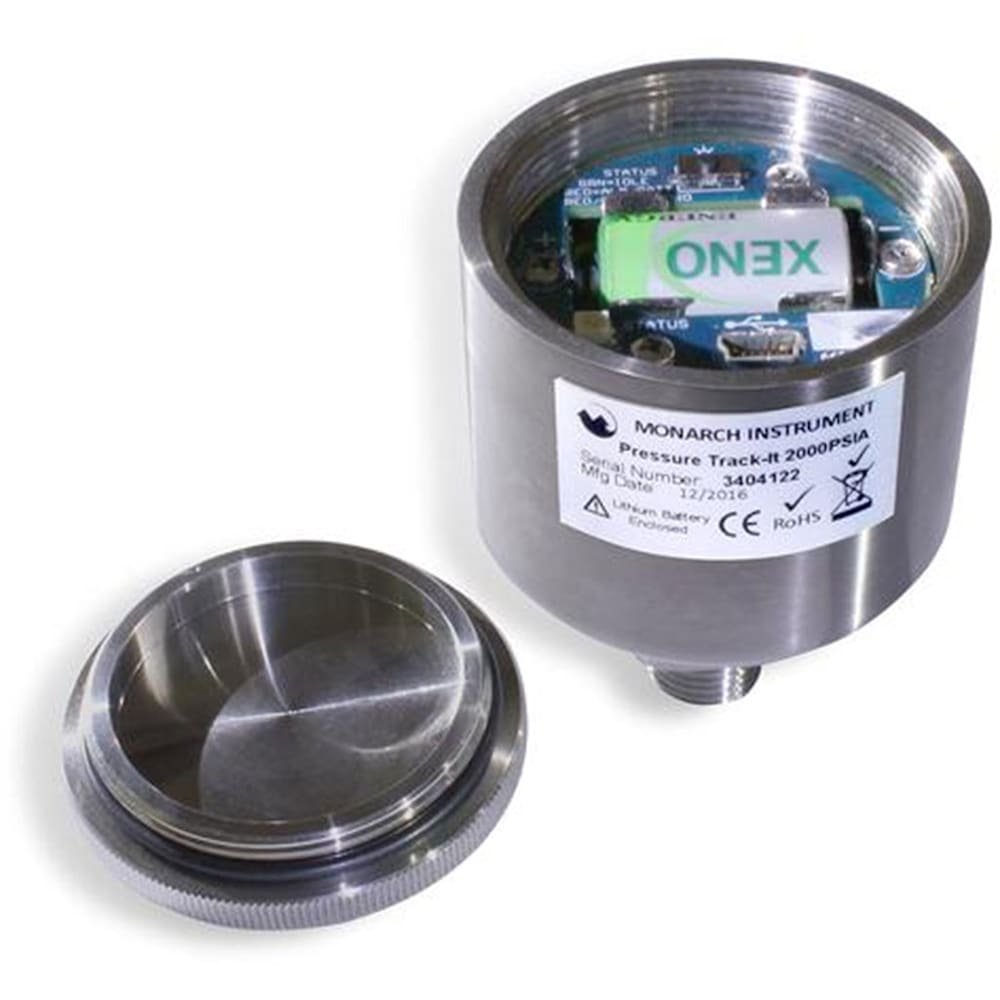

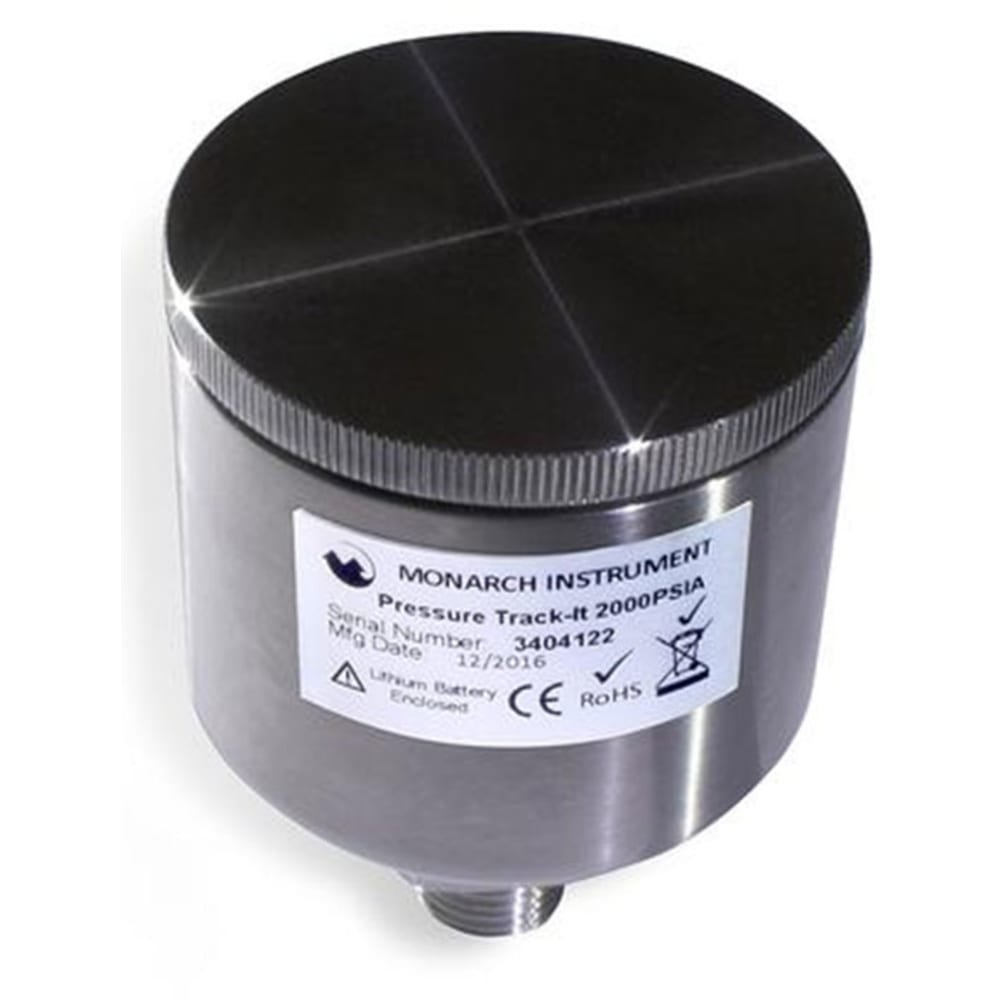

Monarch 5396-0356-CAL Pressure Track-It, 0-5800 PSIG Sealed Pressure/Temp Logger
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Monarch 5396-0356-CAL Pressure Track-It, 0-5800 PSIG Sealed Pressure/Temp Logger Specs
| Brand | Lascar |
| Record | Sample Rates: User configured 1 every 2 seconds to 1 every 24 hours No. of Samples: 32,000 or 64,000 (depends on setup) |
| Record Trigger | Record Trigger Two independent triggers. Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week |
| Alarms | 2 user programmable alarms. High or Low |
| Software | Track-It Software -Program device, view data (historic or real time), export to Excel |
| Battery | Lithium 1/2AA 1.2Ah Life: Up to 5 years typical @ 1 minute sample rate |
| Communication | Direct USB connection |
| Enclosure | Material: 316L Stainless Steel Dimensions: 5cm (dia.) x 5.6cm / 1.95” diameter x 2.19” (Excl. port thread) |
| Pressure Ranges | 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, 0-14500psi |
| Vacuum Ranges | 760 to 380, 760 to 0 torr |
| Accuracy | ± 0.25% |
| Overpressure Rating | 1.5 times max |
| Port connection | 1/4” NPT Male 1/2” NPT Male (8700 and 14,500) |
| Temperature Range | -20 to +85°C / -4 to 185°F |
| Accuracy | ±1°C 0 to 50°C / 32 to 122°F ±2°C –20 to 85°C / -4 to 185 F |
| Resolution | 0.1°C / 0.1°F |
- USB interface Cable
- Battery
- NIST Traceable Calibration Certificate
