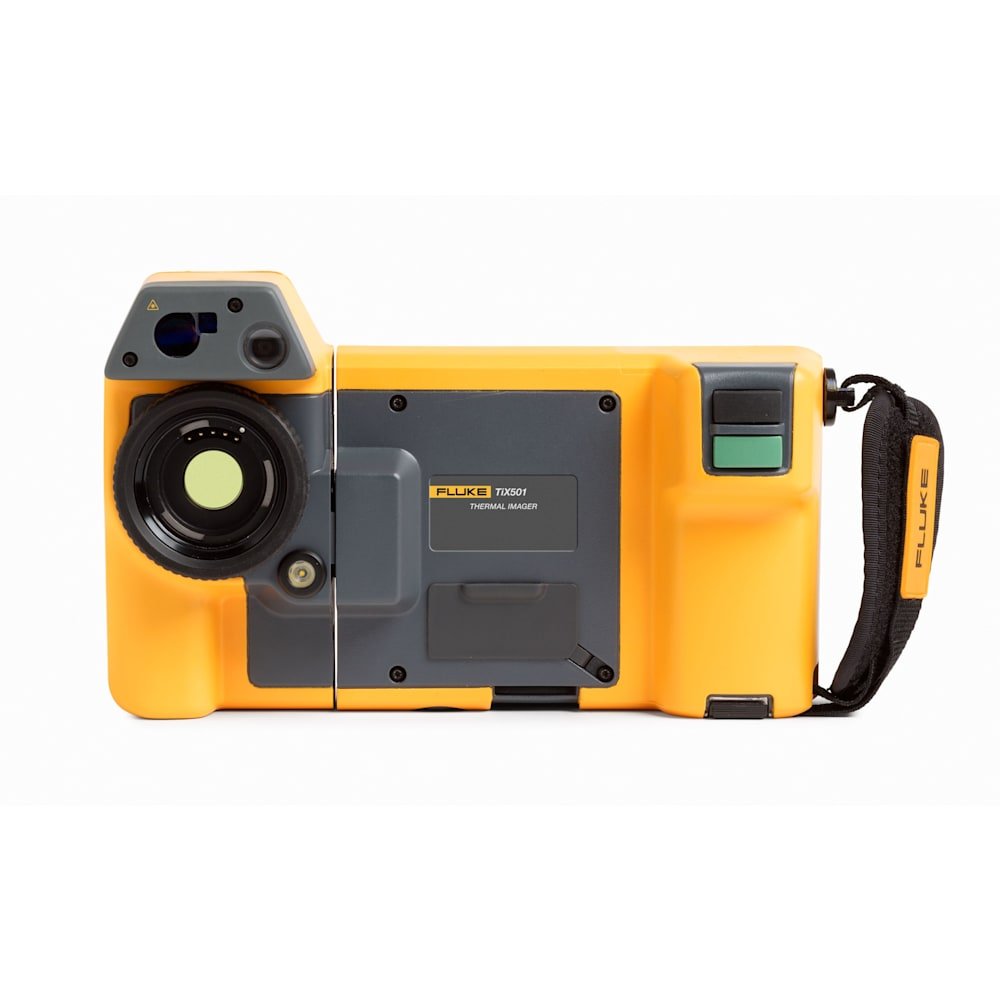

Fluke TIX501 60HZ Thermal Imager
$20,366.95
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Description
Tech Specs
| Specification Name | Value |
| Thermal Imagers/Building and Industrial Thermal Imagers Template | Detector Size640 x 480 Sensor |
| Thermal Sensitivity | 75 mK (NETD) |
| Temperature Range Max | 1202 F |
| Temperature Range Min | -4 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 5.7 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Auto Focus |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ? 2 ?C or 2 % (at 25 ?C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
| Test Equipment General Attributes | Unique Features2x Digital Zoom Infrared spectral band 7.5 ?m to 14 ?m (long wave) Edit and analyze captured images on camera Integrate camera data, infrared video and images into software to support R&D analysis with Matlab and Labview Standard Palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted 2 user-definable spot markers 1 expandable-contractible measurement box with MIN-MAX-AVG temp display Hard Case – Rugged, IP67 rated, airtight hardcase with custom foam insert |
| Warranty | 2 YEARS |
| Warranty Details | Two-years (standard), extended warranties are available |
| Safety Approval | RoHS |
| Interfaces I/O | Bluetooth, Wifi, HDMI, USB |
| Storage | Internal Memory, Micro SD, USB Flash Drive |
| IP Rating | IP54 |
| Product Weight | 3.4 LBS |
| Product Height | 10.8 IN |
| Product Length | 3.8 IN |
| Product Width | 6.3 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027504020 |
| ECCN Number | 6A003.b.4.b |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 14.17 IN |
| Shipping Length | 18.50 IN |
| Shipping Width | 7.67 IN |
Fluke TIX501 60HZ Thermal Imager Specs
| Thermal Imagers/Building and Industrial Thermal Imagers Template | Detector Size640 x 480 Sensor |
| Thermal Sensitivity | 75 mK (NETD) |
| Temperature Range Max | 1202 F |
| Temperature Range Min | -4 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 5.7 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Auto Focus |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ? 2 ?C or 2 % (at 25 ?C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
| Test Equipment General Attributes | Unique Features2x Digital Zoom Infrared spectral band 7.5 ?m to 14 ?m (long wave) Edit and analyze captured images on camera Integrate camera data, infrared video and images into software to support R&D analysis with Matlab and Labview Standard Palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted 2 user-definable spot markers 1 expandable-contractible measurement box with MIN-MAX-AVG temp display Hard Case - Rugged, IP67 rated, airtight hardcase with custom foam insert |
| Warranty | 2 YEARS |
| Warranty Details | Two-years (standard), extended warranties are available |
| Safety Approval | RoHS |
| Interfaces I/O | Bluetooth, Wifi, HDMI, USB |
| Storage | Internal Memory, Micro SD, USB Flash Drive |
| IP Rating | IP54 |
| Product Weight | 3.4 LBS |
| Product Height | 10.8 IN |
| Product Length | 3.8 IN |
| Product Width | 6.3 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027504020 |
| ECCN Number | 6A003.b.4.b |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 14.17 IN |
| Shipping Length | 18.50 IN |
| Shipping Width | 7.67 IN |
- Standard infrared lens
- AC power supply
- Battery pack charger (including universal AC adapters)
- (2) Rugged lithium ion smart battery packs
- USB cable
- HDMI video cable
- 4GB micro SD card
- Adjustable hand strap
- Adjustable neck strap
- IP67 rated
- Airtight hard carrying case
