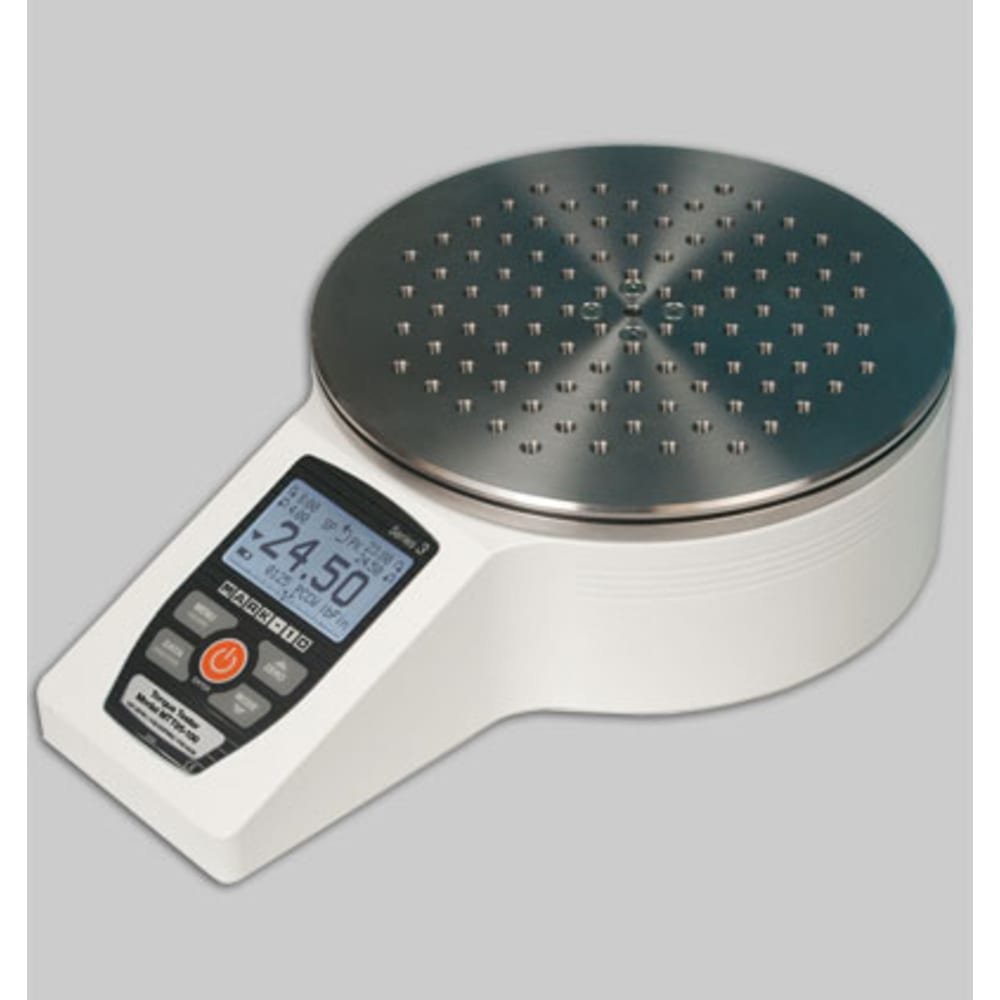

Mark-10 MTT05-100 100 lbFin / 11.5 Nm, 110V, Digital Torque Tool Tester
$923.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Mark-10 MTT05-100 100 lbFin / 11.5 Nm, 110V, Digital Torque Tool Tester Specs
| Model No. | lbFin |
| MTT05-12 | 12 x 0.005 |
| MTT05-25 | 25 x 0.01 |
| MTT05-50 | 50 x 0.02 |
| MTT05-100 | 100 x 0.05 |
| Accuracy | ±0.3% of full scale |
| Sampling Rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Units | ozFin, lbFin, lbFft, Nm, Ncm |
| Outputs | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VCD, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 10.9 lb [4.9 kg] |
| Included items | Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR TM Lite software, MESUR TM gauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration (certificate with data is available for an additional charge). |
| Environmental requirements | 40 - 100°F, max. 96% humidity, non-condensating |
- (1) Digital torque tester
- (1) Battery (inside the instrument)
- (1) USB cable
- (1) Resource CD
- USB driver
- MESUR™ Lite software
- MESUR™ gauge DEMO software
- User's Guide
