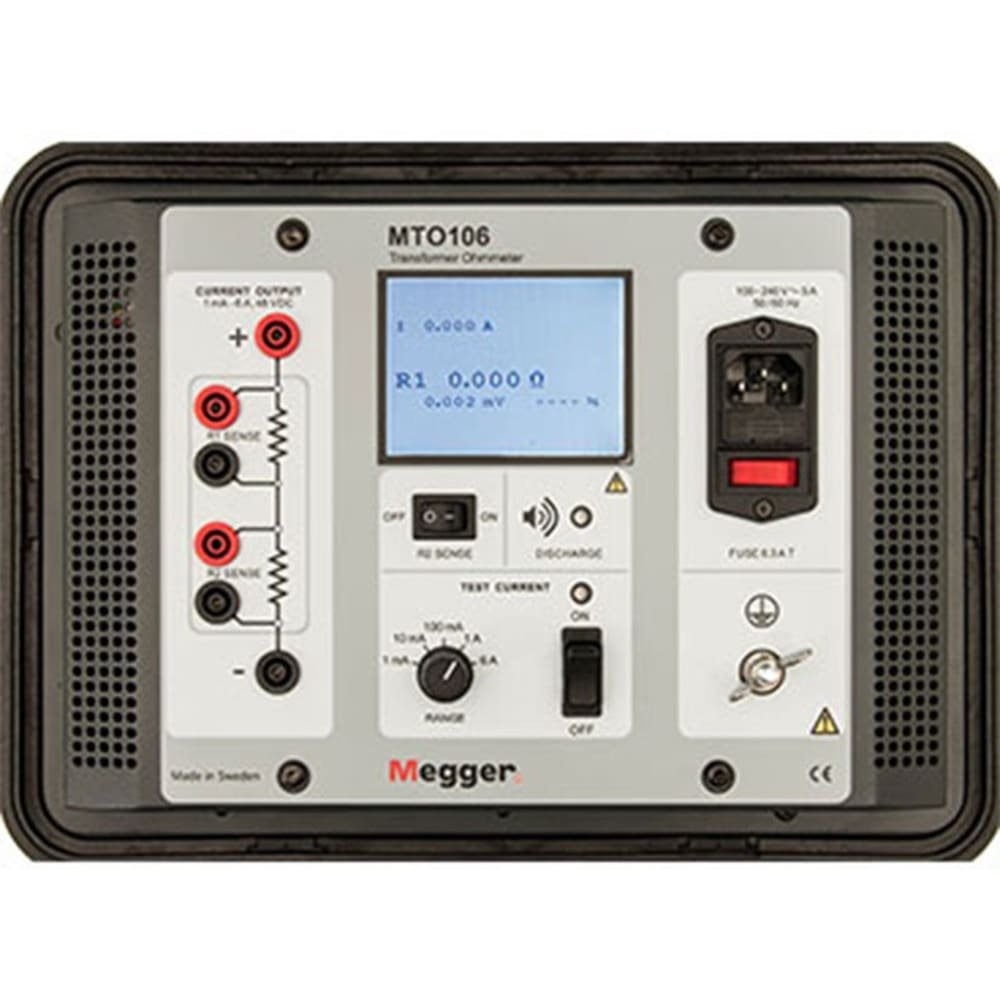

Megger MTO106-NL – Transformer Ohmmeter
$6,346.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Megger MTO106-NL - Transformer Ohmmeter Specs
| Application field | The instrument is intended for use in high-voltage substations and industrial environments. |
| Operating | -20°C to +50°C (-4°F to +122°F) |
| Storage & transport | -50°C to +70°C (-58°F to +158°F) |
| Humidity (operating) | 0% – 90% RH, non-condensing |
| LVD | 2014/35/EU |
| EMC | 2014/30/EU |
| RoHS | 2011/65/E U |
| Mains voltage | 100 - 240VAC, 50/60Hz |
| Input power | 400 VA (max) |
| Case | Ruggedized plastic case with removable lid and carrying handle, IP 67 when closed |
| Dimensions (W x D x H) | 360 x 304 x 194 mm (14.2 x 12 x 7.6 in.) |
| Weight | 7.3 kg (16 lbs) excl. cables |
| Display | 4-inch, backlit, monochrome alphanumerical display |
| Test leads | 2 x 10 m (33 ft), with banana connectors and Kelvin clamps |
| Ground lead | 1 x 5 m (16 ft), 2.5 mm² |
| Measurment range | 10 μOhm to 30 kOhm |
| Resolution | Up to 4 digits |
| Open circuit test voltage | up to 48 V DC |
| Measurement voltage | up to 20 V DC |
