MSI VibVue Motion Magnification

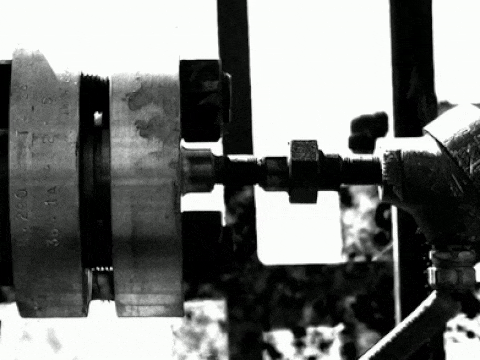

MSI VibVue motion magnification for high-speed vibration analysis allows you to see the natural excitation signature of your machine or structure, including higher order modes, such as those caused by vane or blade pass frequencies. This process facilitates quick and comprehensive understanding of the object in motion.

With MSI VibVue you can measure millions of data points in minutes without touching the equipment. The high-speed video determines the frequency at each pixel from a safe distance, great for restricted areas. Then, all this information is displayed on the actual image so there is no question about what you are looking at.

MSI VibVue is much clearer and more accurate than modal operating deflection shape (ODS) which takes more time to place hundreds of test points (all for less data), is susceptible to human error because it requires judgement about where to place the probes, and displays as a roughly rendered CAD drawing.

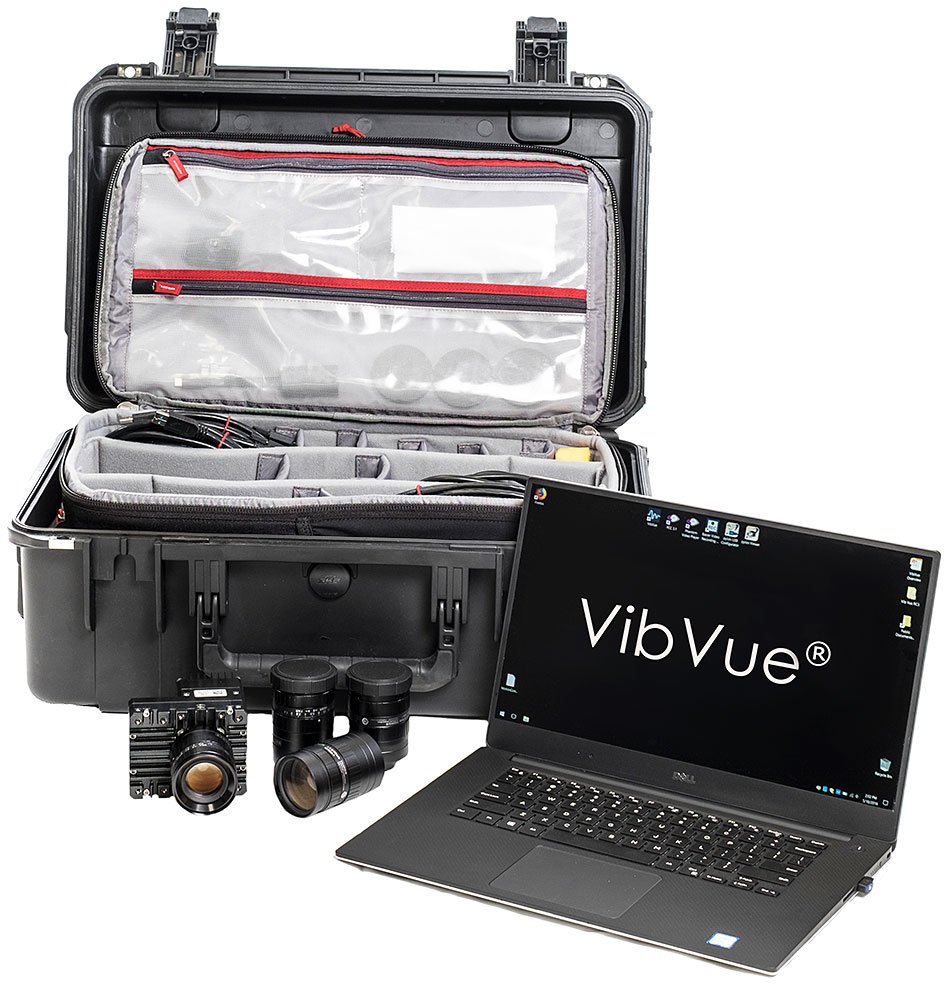

Standard Package includes:

• VibVue Standard software (2 licenses)
• 4 lenses (6mm, 12.5mm, 25mm, 50mm)
• High performance laptop with Windows 10
• Tripod laptop stand and sun hood
• Light kit (2 lights and stands)
• Laser distance meter
• Pistol grip professional tripod with quick connect camera adapter plate
• Cases, cables, accessories
• One seat of training at MSI or certified trainer facility, two days
• One-year software maintenance and support
• One-year review of video data

Pro Package includes:

• VibVue Pro software (2 licenses)
• 4 lenses (6mm, 12.5mm, 25mm, 50mm)
• High performance laptop with Windows 10
• Tripod laptop stand and sun hood
• Light kit (2 lights and stands)
• Laser distance meter
• Pistol grip professional tripod with quick connect camera adapter plate
• Cases, cables, accessories
• Four seats of training at MSI or certified trainer facility, two days
• One-year software maintenance and support
• One-year review of video data
