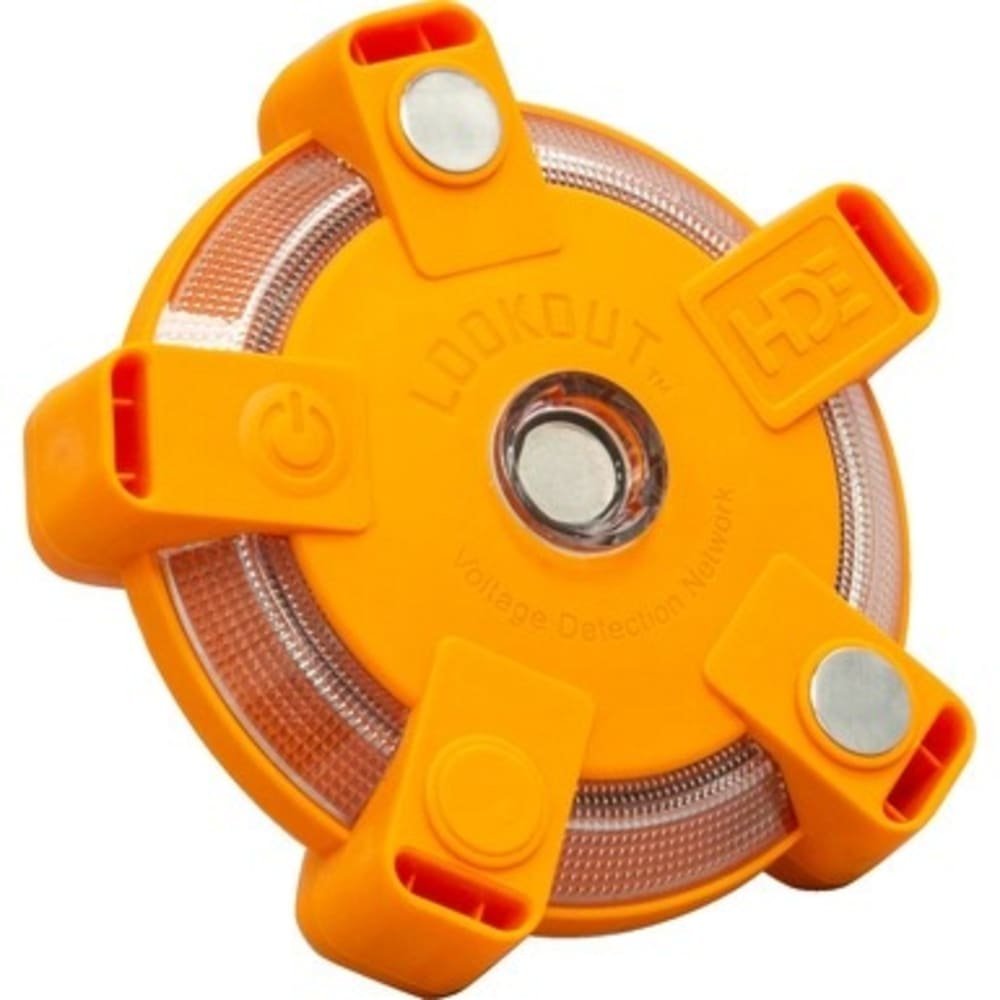

HDE LO-01 – LOOKOUT® Operator Unit
$467.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
HDE LO-01 - LOOKOUT® Operator Unit Specs
| TYPICAL WARNING DISTANCE | 3 feet (0.9m) from a 4kVAC conductor. For more details, refer to the Warning Distance Information starting on page 9. |
| OPERATING FREQUENCY | The LOOKOUT Detector will only detect 50Hz/60Hz AC voltage - do not use below 2400 volts. |
| BATTERIES | Internal rechargeable Li-ion - around 500 hours in Monitor mode, 8 hours of continuous voltage indication (Alert mode) under typical conditions |
| WEIGHT WITH BATTERY | 1.0 lb. (453g) |
| DIMENSIONS | 6.75" Dia x 1.55" H (17.14cm x 3.94cm) |
| VOLTAGE RANGE | 4kVAC to 500kVAC system voltage |
| ENCLOSURE MATERIAL | ABS UL 94-HB |
| PRINTED CIRCUIT BOARDS | FR-4 UL94V-0 |
| INGRESS PROTECTION | IP67 |
| ALTITUDE | Up to 6,566 ft. (2000m) |
| OPERATING TEMPERATURE | -20°F to +140°F (-29°C to +60°C) |
| HUMIDITY | 95% to 60°C (non-condensing) |
| OVERVOLTAGE CATEGORY | II Non-contact |
| POLLUTION DEGREE | PD4 |
