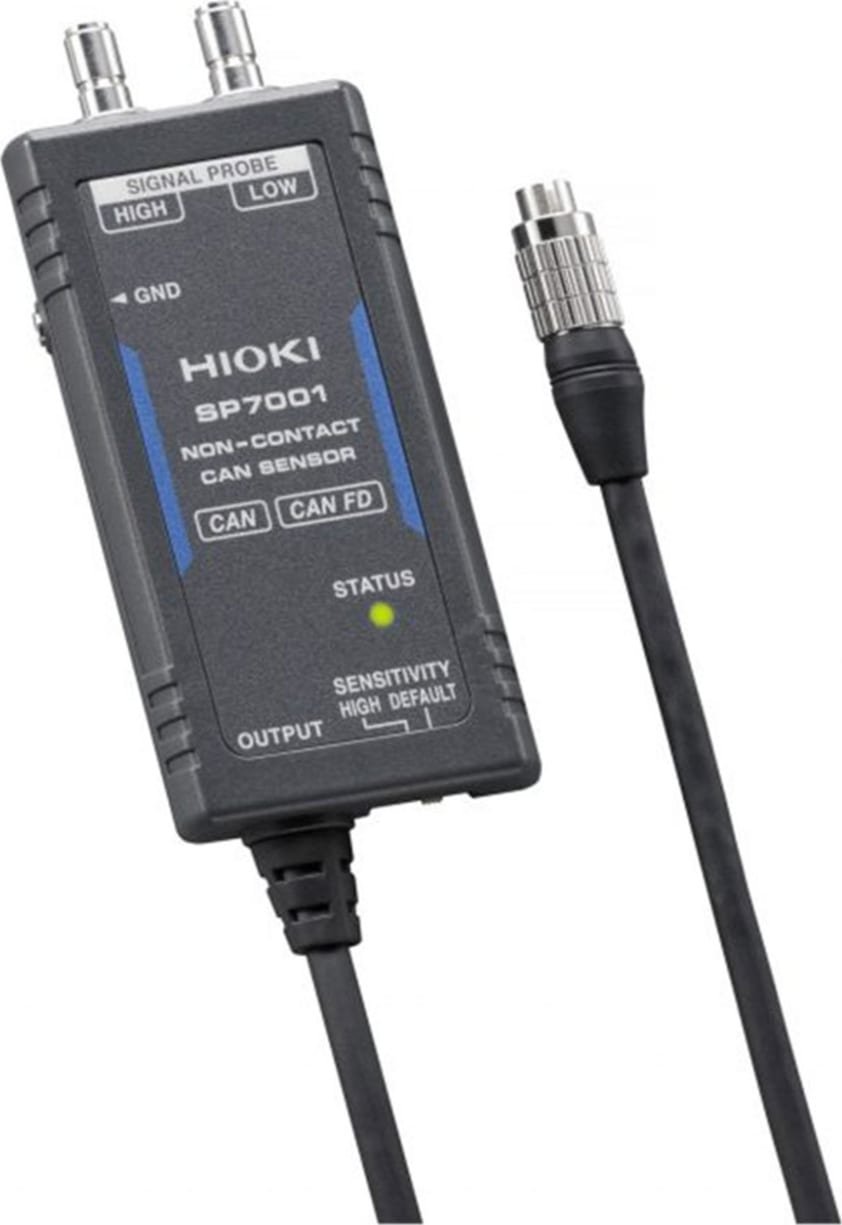

Hioki SP7001 – Non-Contact CAN Sensor
$828.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Hioki SP7001 - Non-Contact CAN Sensor Specs
| Detection method | Capacitive-coupled signal detection *No bare-wire connections |
| Detectable cables | AVS/AVSS-compliant cables, External diameter: 1.2 mm (0.05 in) to 2.0 mm (0.08 in) |
| Number of channels | 2 (SP7100) |
| Compatible communications speeds | SP7001, SP7002: CAN 125 kbit/s to 1 Mbit/s SP7001: CAN FD 125 kbit/s to 3 Mbit/s |
| Total delay time | 130 ns (typical) |
| CAN terminal resistance | 60 Ω (typical), built-in |
| Signal output connector | D-sub 9-pin female (CH1, CH2) |
| Operating temperature, humidity | Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Humidity: -40 °C to 60 °C (-40 °F to 140 °F), 80% RH or less (with no condensation), 60 °C to 85 °C (140 °F to 185 °F), 60% RH or less (with no condensation) |
| Power supply | (1) AC Adapter Z1008 (100 V to 240 V AC), rated power: 8 VA (including AC adapter) (2) External power supply (10 V to 30 V DC), rated power: 3 VA |
| Dimensions and mass | SP7001, SP7002: 44 mm (1.73 in) W × 85 mm (3.35 in) H × 20 mm (0.79 in) D, 180 g (6.3 oz), Cable length: 2.5 m (8.20 ft) SP7100: 55 mm (2.17 in) W × 120 mm (4.72 in) H × 25 mm (0.98 in) D, 130 g (4.6 oz), Cable length: 0.3 m (0.98 ft) SP9200: Probe: φ 11.6 mm (0.46 in) × 33.7 mm (1.33 in) H, Guard hook: φ 5 mm (0.20 in) × 11.8 mm (0.46 in) H, 26 g, Cable length: 0.5 m (1.64 ft) |
- Quick stard manual (Japanese and English)
- Operating precautions
