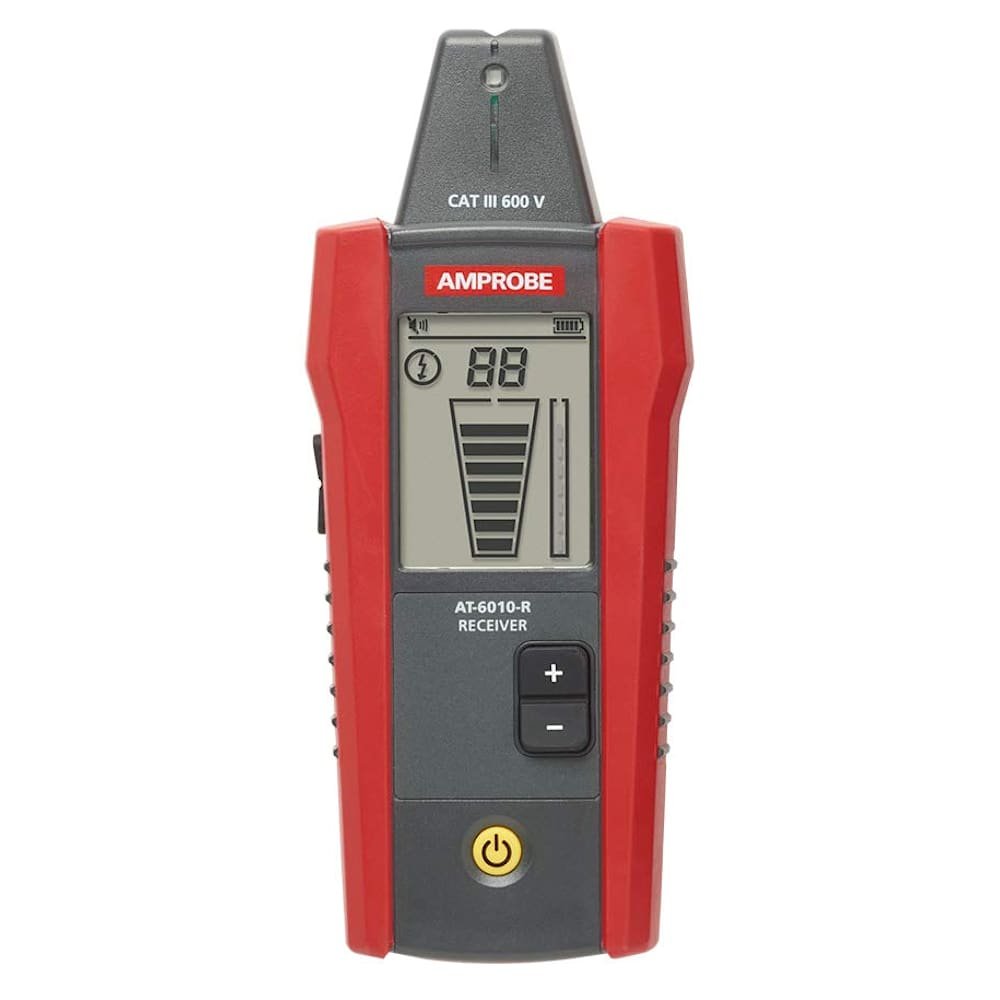

Amprobe AT-6010-R – Receiver, Advanced Wire Tracer
$294.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Amprobe AT-6010-R - Receiver, Advanced Wire Tracer Specs
| Measurement category | CAT III 600 V |
| Operating voltage | 0 to 600 V AC/DC |
| Operating frequency | Energized: 6.25 kHz, De-Energized: 32.768 kHz |
| Signal indications | Numeric, bar graph display and audible beep |
| Response time | Tip Sensor (Energized/De-energized): 500 ms Battery voltage monitoring: 5 sec |
| Range detection (open air) | Tip sensor (Energized): Max distance via air: up to 20 ft (6.1 m) Pinpointing: approx. 1.97 in (5 cm) Tip sensor (De-energized): Max distance via air: up to 14.7 ft (4.5 m) Pinpointing: approx. 1.97 in (5 cm) |
| Display size | LCD 2.5 in (6.35 cm) |
| Display dimensions (W x H) | 1.45 x 1.93 in (36.72 x 48.96 mm) |
| Display type | Segment LCD |
| Display color | Black and white |
| Booting time | < 3 sec |
| Backlight | • |
| Operating temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Operating humidity | 45%: -4 °F to <50 °F (-20 °C to <10 °C), 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C), 45%: 104 °F to 122 °F (40 °C to 50 °C) |
| Storage temperature and humidity | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH |
| Operating altitude | 0 to 6561 ft (2000 m) |
| Pollution degree | 2 |
| IP rating | IP 52 |
| Drop test | 3.28 ft (1 m) |
| Power supply | 4 x AA (alkaline) |
| Power consumption (typical) | 70 mA |
| Battery life | Approx. 25 h |
| Low battery indication | • |
| Dimensions (L x W x H) | Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm) |
| Weight | Approx. 0.6 lb (0.27 kg) |
