OWL KF7XMS – Fiber OWL 7 WaveSource Pro Quad
$1,467.00
In Stock

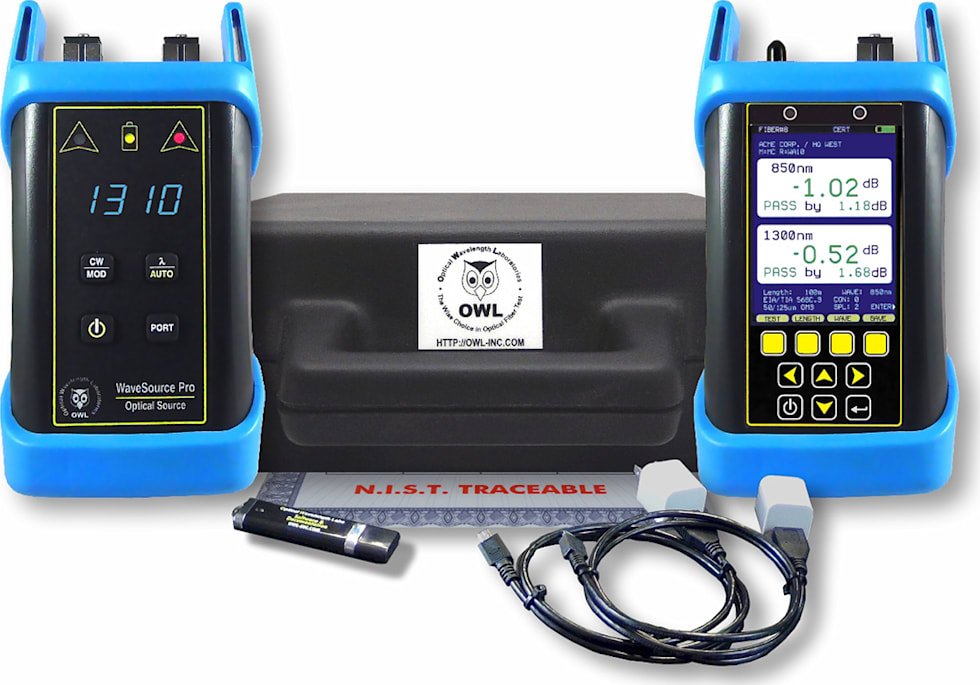

Data center facility managers eliminate complex manual calibration errors on single-mode and multimode networks using the OWL KF7XMS – Fiber OWL 7 WaveSource Pro Quad certifier. This high-performance kit automates dual-wavelength tracking across 850, 1300, 1310, and 1550 nm bands, securely logging up to 10,000 distinct structural test records for direct USB export via OWLView.
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
OWL KF7XMS - Fiber OWL 7 WaveSource Pro Quad Specs
| Display Type | 2.8" Color LCD |
| Battery Type | Re-chargeable Lithium Polymer |
| Battery Life | up to 50 hours |
| Auto-shutdown | Yes |
| Operating Temperature | -10 to 55° C |
| Storage Temperature | -30 to 70° C |
| Dimensions | 2.87" x 4.42" x 1.25" |
| Weight | 10 ounces (284 g) |
| Detector Type | InGaAs |
| Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625 nm |
| Measurement Range | +5 to -70 dBm |
| Accuracy (Uncertainty) | ±0.15 dB |
| Display Resolution | 0.01 dB |
| Power Units | dBm, dB |
| Connector Type | Universal (2.5 mm and 1.25 mm) |
| Data Storage Points | <10,000 |
| Download Port Connection | USB |
| Software | OWLView |
| Modes of Operation | CERT, LOSS, OPM |
| Type | FP Laser |
| Center Wavelength | 1310 ± 30 nm |
| Spectral Width (FWHM) | 1310 nm: 2 nm |
| Output Power | -10 dBm |
| Length Accuracy | ±2.5 meters (7 feet) |
| Length Limit | up to 25 km (singlemode) |
| Connector Type | SC (LC if optional VFL is installed) |
| Type (MM / SM) | LED / FP Laser |
| Center Wavelength | 850 +30/-10 nm 1300 ±50 nm 1310 ± 30 nm 1550 ± 30 nm |
| Spectral Width (FWHM) | 850 nm: 50 nm 1300 nm: 180 nm 1310 nm: 2 nm 1550 nm: 2 nm |
| Output Power (MM/SM) | -20 dBm / -10 dBm |
| Initial Accuracy (Uncertainty) | ±0.1 dB |
| Output Modes | CW, Modulated |
| Type | Red Laser |
| Fiber Type | Multimode/Singlemode |
| Center Wavelength | ~650nm |
| Output Power | 0 dBm (1mW) |
| Visible Distance | up to 5 km |
| Connector Type | LC |
