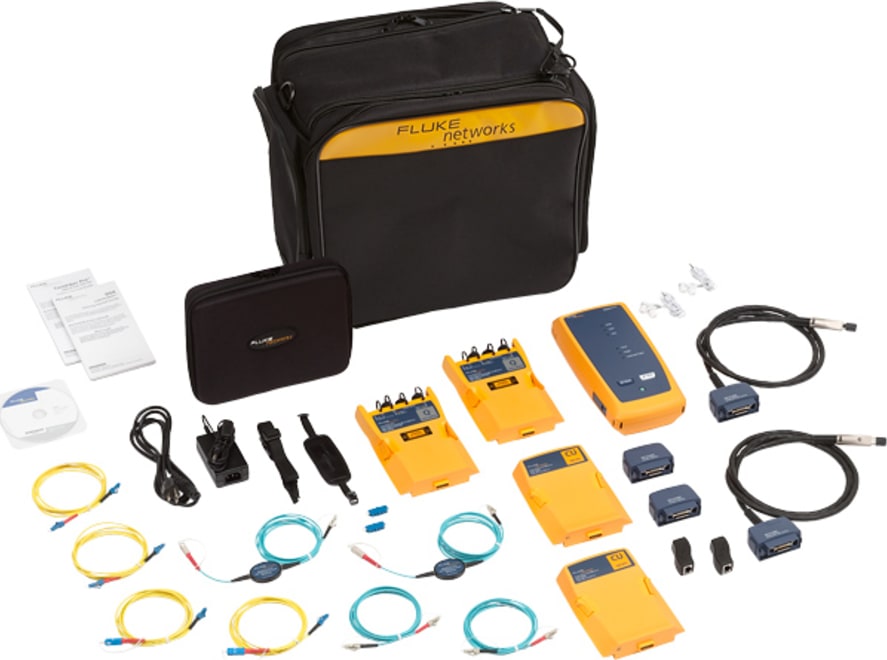

Fluke Networks DSX2-CFP-Q-ADD-R – DSX-5000 CableAnalyzer Series Copper Cable Certifier Package
$17,110.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke Networks DSX2-CFP-Q-ADD-R - DSX-5000 CableAnalyzer Series Copper Cable Certifier Package Specs
| Shielded and unshielded pair LAN cabling | TIA Cat 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, EA, F, FA, and I/II: 100 Ω and 120 Ω |
| Permanent link adapters | Plug type: shielded RJ45 Optional Plug type: Tera |
| Channel adapters | Jack type: shielded RJ45 Optional Jack type: Tera, GG45 |
| TIA | Cat 3, 4, 5, 5e, 6, 6A, 8 per TIA 568.2-D |
| ISO/IEC | Class C, D, E, EA, F, FA, I/II certification per ISO/IEC |
| Maximum frequency | DSX-8000: 2000 MHz DSX-5000 1000 MHz |
| Speed of Autotest | DSX-8000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 7 seconds Full 2-way Autotest of Cat 6A/Class EA: 8 seconds Full 2- way Autotest of Cat 8: 16 seconds DSX-5000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Cat 6A/Class EA: 10 seconds |
| Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return loss (CMRL), Near-End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT), Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL). |
| Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage |
| Display | 5.7 in LCD display with a projected capacitance touchscreen |
| Case | High impact plastic with show absorbing over mold |
| Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg) |
| Main unit and remote | Lithium-ion battery pack, 7.2 V |
| Typical battery life | 8 hours |
| Charge time* | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity |
| Languages supported | English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian |
| Calibration | Service center calibration period is 1 year |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual-band (2.4 GHz and 5 GHz) |
| Operating Temperature | 32° F to 113° F (0° C to 45° C) |
| Storage Temperature | -22° F to +140° F (-30° C to +60° C) |
| Operating relative humidity (% RH without condensation) | 0% to 90%, 32° F to 95° F (0° C to 35° C) 0% to 70%, 95° F to 113° F (35° C to 45 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test with and without module and adapter |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 3rd Edition |
| Operating altitude | 13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter |
| EMC | EN 61326-1 |
| DSX-8000 | Category 8 test modes (or lower link categories) Class I/II test modes |
| DSX-5000 | Category 6A/Class EA test modes (or lower link categories) Class FA test modes |
| Length of Twisted Pair Cabling | Without Remote or in DSX-5000 Long Communication Mode |
| Range | 800 m (2600 ft) |
| Resolution | 0.1 m or 1 ft |
| Accuracy | ± (0.3 m + 2 %); 0 m to 150 m ± (0.3 m + 4 %); 150 m to 800 m |
| Propagation Delay | Without Remote or in DSX-5000 Long Communication Mode |
| Range | 4000 ns |
| Resolution | 1 ns |
| Accuracy | ± (2 ns + 2 %); 0 ns to 750 ns ± (2 ns + 4 %); 750 ns to 4000 ns |
| Range | 0 ns to 100 ns |
| Resolution | 1 ns |
| Accuracy | ± 10 ns |
| Range | 0 Ω to 540 Ω |
| Resolution | 0.1 Ω |
| Accuracy | ± (1 Ω + 1 %) |
| Overload recovery time | Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage. |
