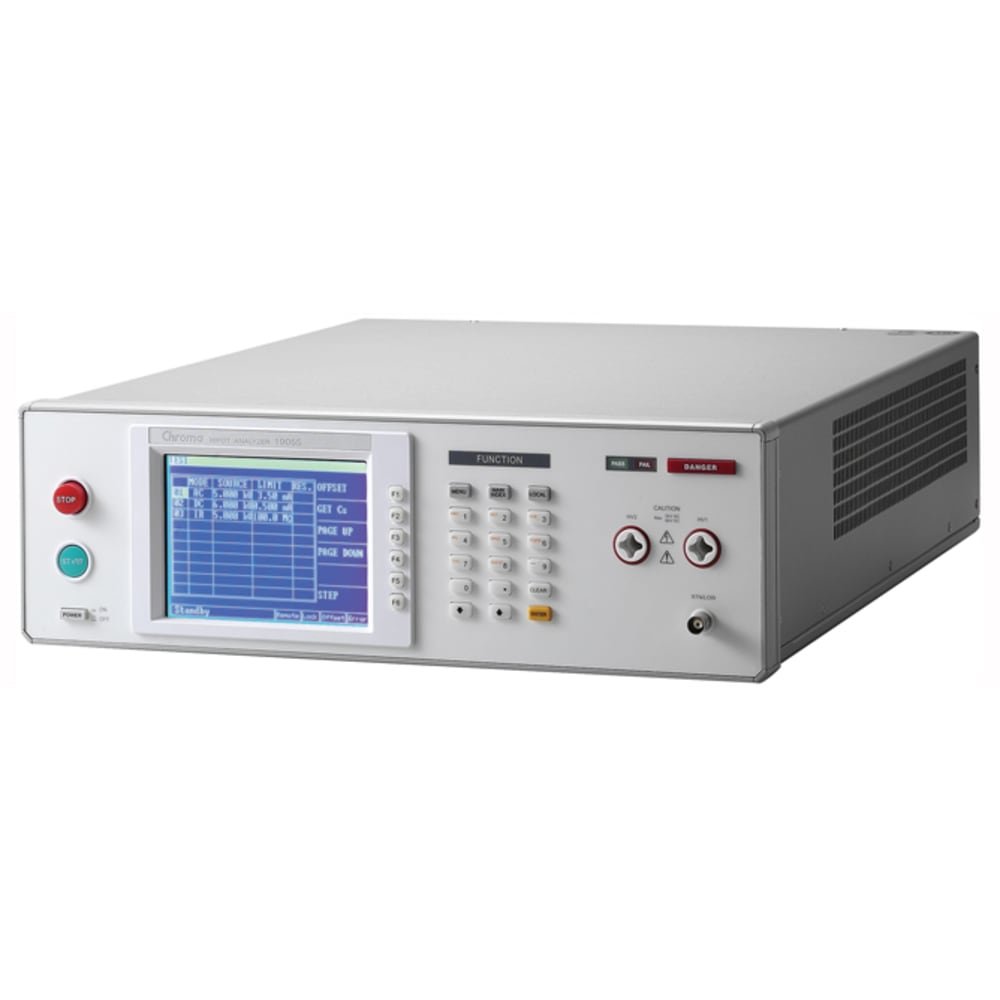

Chroma 19055-C - Hipot Analyzer (AC/DC/IR/DLA/CDD)
Chroma 19055-C - Hipot Analyzer (AC/DC/IR/DLA/CDD) - Image 2
Chroma 19055-C - Hipot Analyzer (AC/DC/IR/DLA/CDD) - Image 3

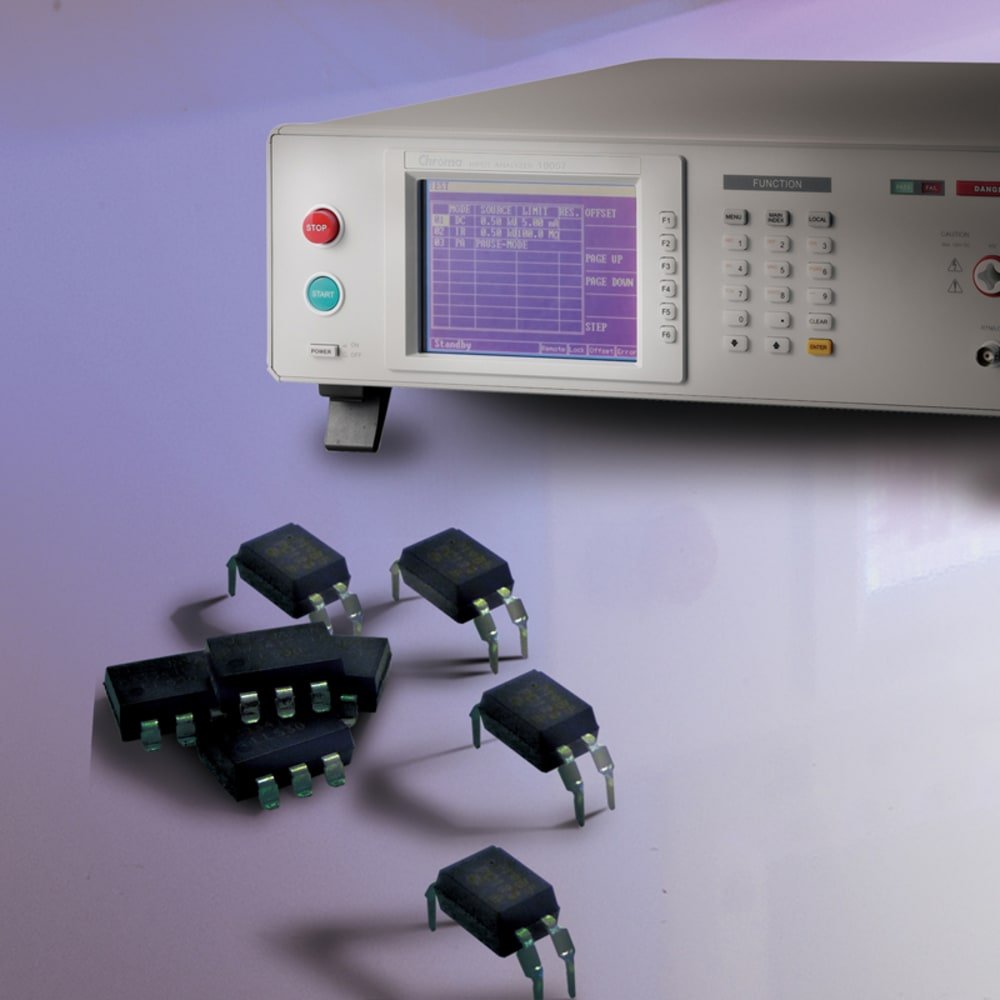

Chroma 19055-C - Hipot Analyzer (AC/DC/IR/DLA/CDD) - Image 4

Chroma 19055-C – Hipot Analyzer (AC/DC/IR/DLA/CDD)

$10,036.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Chroma-19055-C
Category:
Brand:

Chroma 19055-C - Hipot Analyzer (AC/DC/IR/DLA/CDD) Specs

Model19055 / 19055-C
ModeACV / DCV / IR
Output VoltageAC : 0.05 ~ 5kV, DC : 0.05 ~ 6kV
Load Regulation1% of setting + 0.5% full range
Voltage Accuracy1% of setting + 0.5% full range
Voltage Resolution2V
Cutoff CurrentAC 5kV/100mA(4kV/120mA) ; DC:25mA
Current Accuracy1% of setting + 0.5% full range
Current Resolution50Hz / 60Hz
Test/Ramp/Fall/Dwell Time0.3 ~ 999 sec., continue / 0.1 ~ 999 sec., o_x001E_ / 0.1 ~ 999 sec., o_x001E_ / 0.1 ~ 999 sec., o_x001E_
WtaveformSine wave
Output VoltageDC : 0.05 ~ 5kV
Voltage Resolution2V
Voltage Accuracy1% of setting + 0.5% full range
IR Range1MΩ ~ 50GΩ
Resistance Resolution0.1MΩ
Resistance Accuracy>1kV
≧500V   ≧1kV0.1MΩ ~ 1GΩ : ± 3% of reading + 0.1% of full range,   1GΩ ~ 10GΩ : ± 7% of reading + 2% of full range,   10GΩ ~ 50GΩ : ± 10% of reading + 1% of full range,
<500V0.1MΩ ~ 1GΩ : ± 3% of reading + (0.2*500/Vs)% full range
setting ModeProgrammable setting
Detection CurrentAC: 20mA;DC: 10mA
HFCCHigh frequency contact check
OSC (open/short check)600Hz, 0.1s
Floating output designLeakage current <3 mA
Fast Output Cut-off0.4ms after NG happen
Ground Fault Interrupt0.5mA ±0.25mA AC, ON/OFF
Panel Operation LockPresent password
InterlockYES
GO/NG Judgment WindowGO : Short sound, Green LED; NG : Long sound, Red LED
Memory Storage100 sets, max. 50 steps per set
Operation EnvironmentTemperature: 0°C ~ 45°C, Humidity: 15% to 95% R.H@°C 40°C
Power Consumption500VA
Power Requirements90~132Vac or 198~264Vac, 47~66Hz
Dimension (HxWxD)130x430x500 mm/5.12x16.93x19.69 inch
WeightApprox. 20kg/44.09 lbs
