Fluke 772 Milliamp Process Clamp Meter with Loop Power
$969.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke 772 Milliamp Process Clamp Meter with Loop Power Specs
| Diameter of measurable conductor | 0.177” or 4.5 mm max |
| Operating temperature | -10 to 50 ºC |
| Storage Temperature | -25 to 60ºC |
| Operating Humidity | < 90% @ <30 ºC, < 75% @ 30 to 55ºC |
| Operating Altitude | 0 to 2000 m |
| IP Rating | IP 40 |
| Size | 59 x 38 x 212 mm, (2.32 x 1.5 x 8.35 in.) |
| Weight | 260G, (9.1 oz.) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
| EMI/RFI | Meets EN61326-1 Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. |
| Temperature Coefficient | 0.01% ºC ( 28?) |
| Power, battery life | (2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical |
| Warranty | Three years for electronics; One year for cable and clamp assembly |
| mA measurement (Measured by clamp) | Resolution and Range |
| Accuracy | 0.2% +2 counts |
| Resolution and Range | 21.0 mA to 100.0 mA |
| Accuracy | 1% + 5 counts |
| mA measurement (Measured in series with test jacks) | Resolution and Range |
| Accuracy | 0.2% + 2 counts |
| mA source (Maximum mA Drive: 24 mA into 1,000 ohms) | Resolution and Range |
| Accuracy | 0.2% + 2 counts |
| mA simulate (Maximum voltage 50 V dc) | Resolution and Range |
| Accuracy | 0.2% + 2 counts |

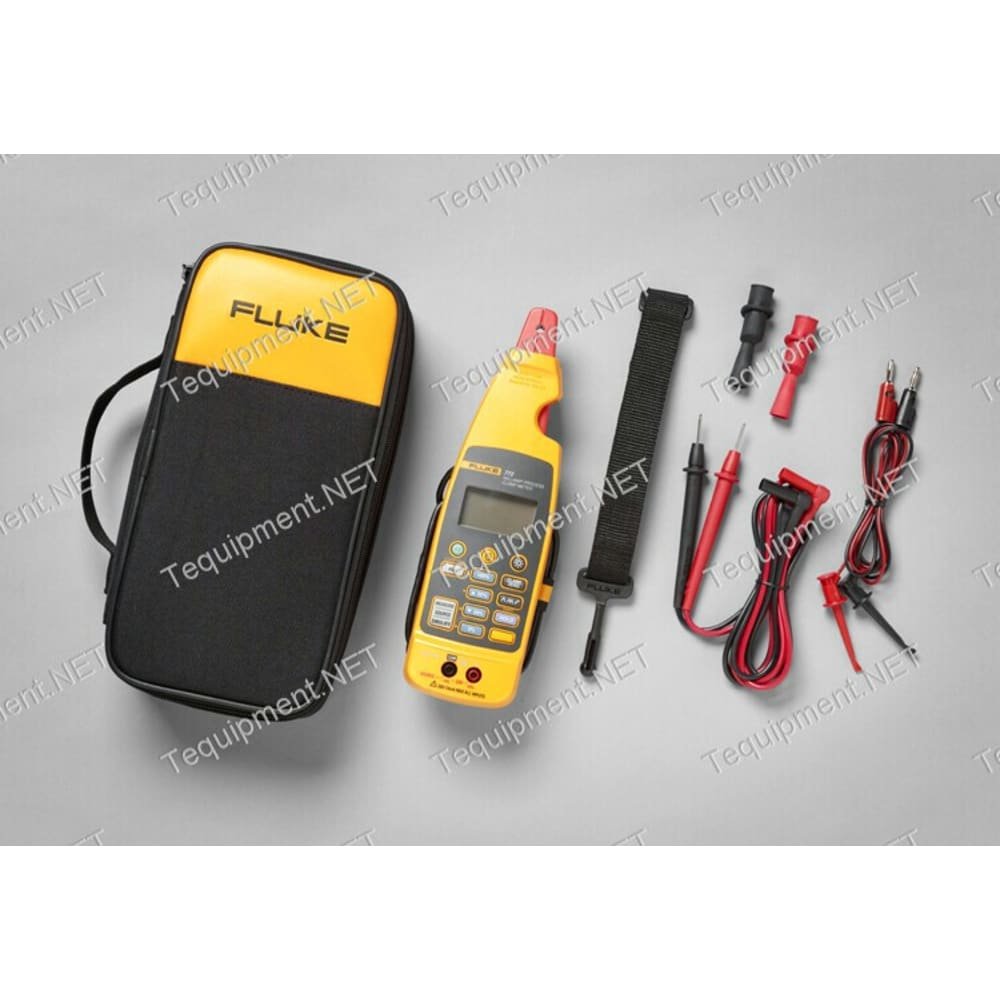

- Four AA alkaline batteries (installed)
- Soft carrying case
- TL75 test leads
- AC 72 detachable clip
- TL 940 mini hook test leads
- Instruction sheet
- Hanging tool with hook and loop strap
