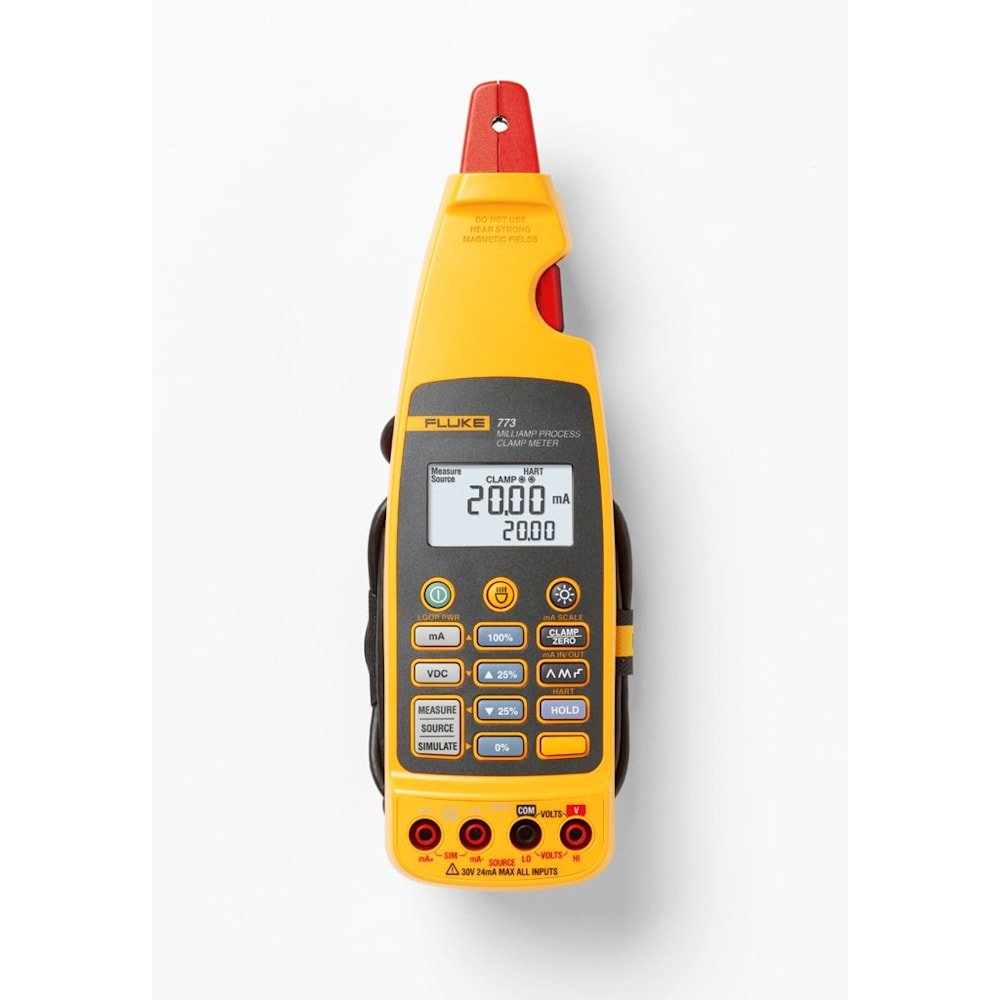

Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure
Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure - Image 2
Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure - Image 3
Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure - Image 4
Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure - Image 5

Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure

$1,106.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: Fluke-773
Category:
Brand:

Description

Technical Specifications

Specification Name Value
Clamp Meters/Clamp Meters Template
True RMS No
Maximum Current DC 100 mA (0.1 A)
Maximum Voltage DC 30 V
Maximum Conductor Size 0.177 IN
Resistance No
Capacitance No
Auto Ranging/Manual Manual
In-Rush Current No
Process / Calibration/Signal Calibrators/Loop Calibrators Template
Measure Inputs Yes
Source Outputs Yes
Maximum Current 99.9 mA (0.100 A)
Current Measurement Resolution 0.01mA
Current Accuracy 0.2%
Maximum Voltage 30 V
Hart Compatible No
Battery Life 12 HR
Intrinsically Safe No
Process / Calibration/Milliamp Calibrators Template
Source/Simulate DC Current Yes
Measure DC Current Yes
Two Wire Transmitter Simulation Yes
Percent Display Yes
Accuracy 0 to 20.99 mA: 0.2%+2 counts 21.0 mA to 100.0 mA: 1%+5 counts
Simulate Loop Voltage Yes
Backlight Yes
Ramp/Step Output Yes
FieldBus Compatible No
Test Equipment General Attributes
Unique Features DC voltage measurement to verify 24 V power supplies or voltage I/O signals. Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal. mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal ? Apply a mA input signal to a device and measure its? 4 to 20 mA output on devices such as valves or mA isolators.
Warranty 3 YEARS
Warranty Details One-year on mA clamp assembly and cable.
IP Rating IP40
Product Weight 2.38 OUNCES (0.149 LBS)
Product Height 2.76 IN
Product Length 12.52 IN
Product Width 5.87 IN
Data Logging No
Calibration Included None
CA Residents Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Battery Type AA
Power Supply Voltage Battery Powered
Country of Origin China
UPC 095969475822

Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure Specs

Specification NameValue
True RMSNo
Maximum Current DC100 mA (0.1 A)
Maximum Voltage DC30 V
Maximum Conductor Size0.177 IN
ResistanceNo
CapacitanceNo
Auto Ranging/ManualManual
In-Rush CurrentNo
Measure InputsYes
Source OutputsYes
Maximum Current99.9 mA (0.100 A)
Current Measurement Resolution0.01mA
Current Accuracy0.2%
Maximum Voltage30 V
Hart CompatibleNo
Battery Life12 HR
Intrinsically SafeNo
Source/Simulate DC CurrentYes
Measure DC CurrentYes
Two Wire Transmitter SimulationYes
Percent DisplayYes
Accuracy0 to 20.99 mA: 0.2%+2 counts 21.0 mA to 100.0 mA: 1%+5 counts
Simulate Loop VoltageYes
BacklightYes
Ramp/Step OutputYes
FieldBus CompatibleNo
Unique FeaturesDC voltage measurement to verify 24 V power supplies or voltage I/O signals. Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal. mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal ? Apply a mA input signal to a device and measure its? 4 to 20 mA output on devices such as valves or mA isolators.
Warranty3 YEARS
Warranty DetailsOne-year on mA clamp assembly and cable.
IP RatingIP40
Product Weight2.38 OUNCES (0.149 LBS)
Product Height2.76 IN
Product Length12.52 IN
Product Width5.87 IN
Data LoggingNo
Calibration IncludedNone
CA ResidentsWarning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Battery TypeAA
Power Supply VoltageBattery Powered
Country of OriginChina
UPC095969475822

  • Four AA alkaline batteries (installed)
    •
  • Soft carrying case
    •
  • TL75 test leads
    •
  • AC 72 detachable clip
    •
  • TL 940 mini hook test leads
    •
  • Instruction sheet
    •
  • Hanging tool with hook and loop strap
