Ashcroft ATE-2 IS – Hand Held Pressure and Temperature Calibrator, Intrinsically Safe Version
$1,894.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Ashcroft ATE-2 IS - Hand Held Pressure and Temperature Calibrator, Intrinsically Safe Version Specs
| Voltage Measurement Range | 0-30 VDC |
| Voltage Measurement Accuracy | 0-10 VDC ± 0.025% F.S. 10-30 VDC ± 0.10% F.S. |
| Current Measurement Range | 0-20 mA |
| Current Measurement Accuracy | ±0.03% F.S. |
| Resolution | ± 0.001% F.S.; 99,999 counts |
| Update Rate | 100 ms - 1 module installed 200 ms - 2 modules installed 300 ms - 2 modules installed and external voltage/current measurement input |
| Electrical Connection for voltage and current | 4 mm banana jacks. (1) set of test leads included |
| Engineering Units | psi, inH2O, inHg, ftSW, bar, mbar, kPa, MPa, mmHg, cmH2O, mmH2O, kg/cm2, User Programmable |
| Loop Power Supply (ATE-2 ST non-I.S. version only) | 24Vdc-35mA maximum (non I.S. only) |
| Programmable Filtering | Dampening levels 1 - 16 |
| Temperature Effect on Electrical Measurement | ±0.001% of span per F over compensated range from reference temperature of 70°F (±3°F) |
| Field Calibration | Base Unit and pressure modules may be field-calibrated via keypad commands |
| Data Logging | • Internal storage for up to 64 data logs and up to 16,000 records; transferable to SD card • Manual / automatic data logging capability • Programmable data intervals (0.1 sec. to 24 hrs.) |
| Warm-up Time | 5 minutes for rated accuracy |
| Operating Temperature | -4 to 120°F (-20 to 49°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Sensor Module Capacity | Up to two AM2 pressure and temperature modules |
| LCD Display | 2.5˝ (W) x 1.5˝ (H); displays three (3) simultaneous measurements, bar graph, back light and flip-screen capability |
| Enclosure | IP65 / NEMA4X |
| Dimensions | 8.7 in. (L) x 5.1 in. (W) x 3.8 in. (H) |
| Net Weight | 2.4 lbs without modules |
| Case Material | High impact PC-ABS |
| Serial Interface | USB (Micro-B connector type) |
| Agency Approvals | All Versions CE Mark (EMI/RFI), FCC (CFR47), UL 61010-1 ATE-2 IS Instrinsically Safe Version (Battery Powered Only): FM Intrinsic Safety CL 1, Div 1, Gr A, B, C, D CSA Intrinsic Safety CL 1, Div 1, Gr A, B, C, D ATEX Ex ia ii c T4 Ga –20°C<ta<+50°c Note: Loop power supply is not included with Intrinsically Safe Units</ta<+50°c |
| Power Required | (4) AA Batteries or via USB power supply USB universal AC adapter 100-240 VAC 50/60 HZ |
| Battery Life | Up to 40 hrs with two modules installed |
| Certification | NIST traceable certification document provided for base unit and optional Quick-Select sensor modules |
| AM2-1 | AM2-2 |
| Pressure Types | Compound, Differential, Gauge |
| Sensor Type | Capacitive. Non-isolated |
| Ranges | Low Range |
| Accuracy Includes non-linearity, non-repeatability and hysteresis. | Standard: ±0.1% Full Scale Optional: ±0.06% F.S. (0/1-0/200 inH2O) ±0.07% F.S. (0/0.25-0/0.5 inH2O) |
| Compensated Temperature Range | 20 to 120°F (–7 to 49°C) |
| Temperature Effect | ±0.004% of Span per °F over compensated range from reference temperature range of 70°F (±3 degrees) |
| Repeatability | ±0.01% of Span (range 0/1 inH2O or higher) ±0.02% of Span (range below 1.0 inH2O) |
| Sensitivity | ±0.002% of Span (typical) |
| Fluid / Media Compatibility | Clean, dry, non-conductive, non-corrosive gas |
| Under / Over Pressure | -15 to 50 psi |
| Maximum Static (line) Pressure | 100 psig |
| Process Connection | Standard 1⁄8 NPT Female |
| Non-Standard Ranges | Consult with our sales department |
| Enhanced Calibration Eliminate the Temperature Effect (no additional temperature error throughout operating range of 20-120°F) | Not Available |
| Cleaning for Oxygen Service | Not Available |
| Process Connection | Standard Connection Only |

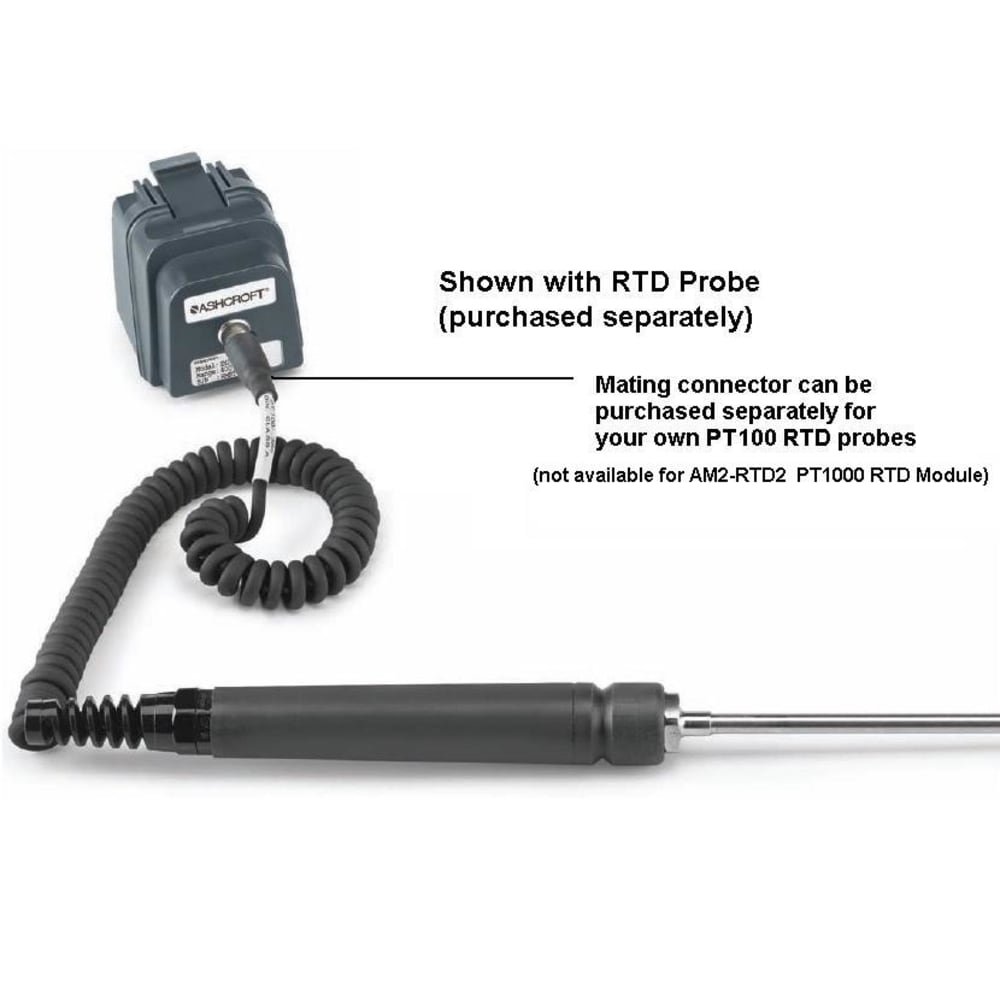

| RTD Probe Type | Measurement Range and Accuracy |
| PT100 (385 and 392 coefficients) | –200 to 550°C: ±0.15°C 550 to 850°C: ±0.2°C |
| Ni 120 | –80 to 260°C: ±0.1°C |
| Cu 10 | –70 to 150°C: ±0.6°C |
| Ohms | ±0.01% reading ±0.02 ohms |
- ATE-2 Base Unit (I.S. version)
- (4) AA batteries
- Test leads
- USB universal AC adapter 100-240 VAC 50/60 HZ
- USB cable
- NIST Traceable Certificate
- Loop Power Supply not included with I.S. version
- Pressure and Temperature Modules not included (purchase separately)
