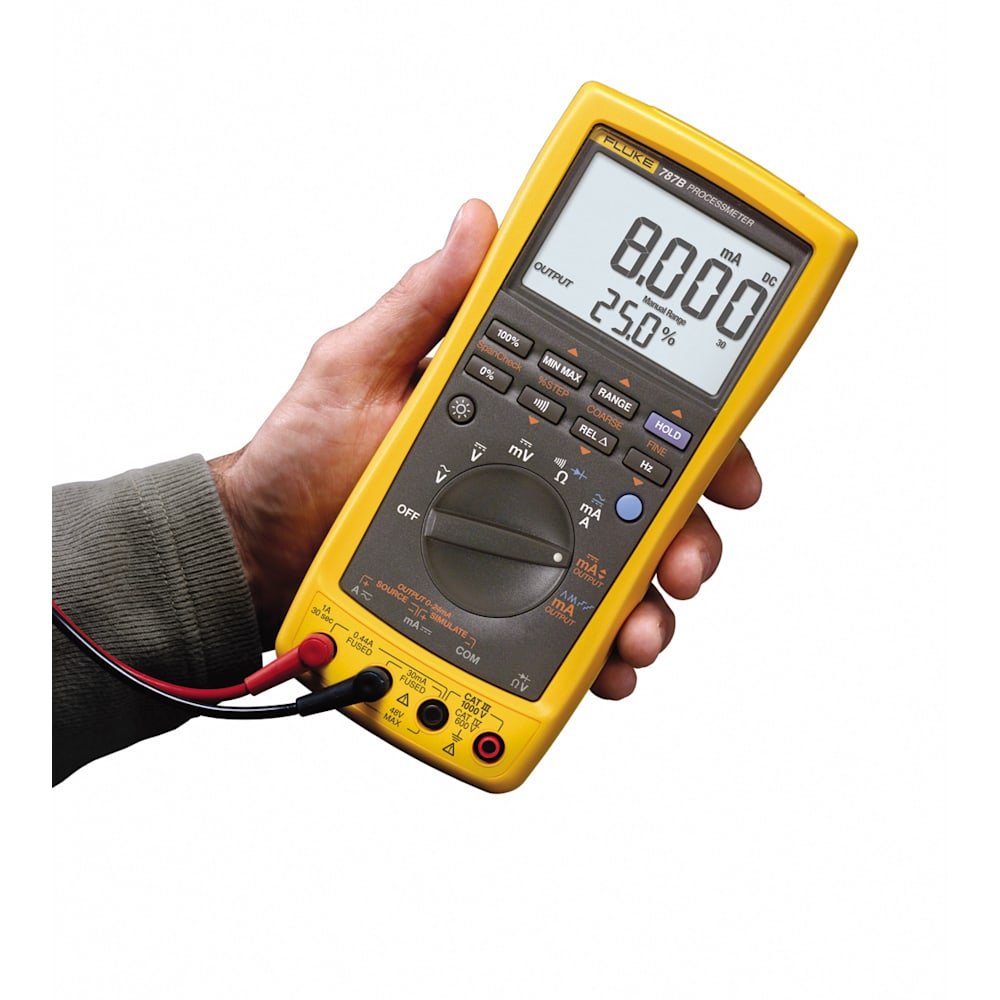

Fluke 787B CAL – Process Meter (Includes NIST Traceable Calibration with Data)
$1,044.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke 787B CAL - Process Meter (Includes NIST Traceable Calibration with Data) Specs
| Type | Hand Held |
| Measure Voltage | Yes |
| Voltage Measurement Max | 1000 V |
| Voltage Measurement Min | 1 mV (0.001 V) |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 1 A (1000 mA) |
| Current Measurement Min | 0.001 mA |
| Source/Simulate Resistance | No |
| Measure Resistance | Yes |
| Resistance Measurement Max | 40 M Ohms (40000000 Ohms) |
| Resistance Measurement Min | 0.1 Ohms |
| Measure Frequency | Yes |
| Frequency Measurement Max | 20 kHz (20000 Hz) |
| Frequency Measurement Min | 0.01 Hz |
| Measure RTD | No |
| Measure Thermocouples | No |
| Source/Simulate Pressure | No |
| Pressure Modules Available | No |
| Hart Compatible | No |
| FieldBus Compatible | No |
| Backlighted | Yes |
| Graphical Screen | No |
| Intrinsically Safe(Calibrators) | No |
| Unique Features | 787 ProcessMeter combines a DMM and a Loop Calibrator in one rugged, handheld tool. 1000V overload protection on V, ohms. 25% Manual Step plus Auto Step and Auto Ramp on mA output.787B version adds Fluke Connect capability |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 13 OUNCES (0.812 LBS) |
| Product Height | 1.25 IN |
| Product Length | 7.36 IN |
| Product Width | 3.4 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
- Fluke 787B ProcessMeter
- (1 pair) TL71 Premium test leads
- (1 set) AC72 Alligator clips
- (4) AA alkaline batteries (installed)
- Quick reference guide
- 3-year warranty
- NIST traceable calibration certificate with data
