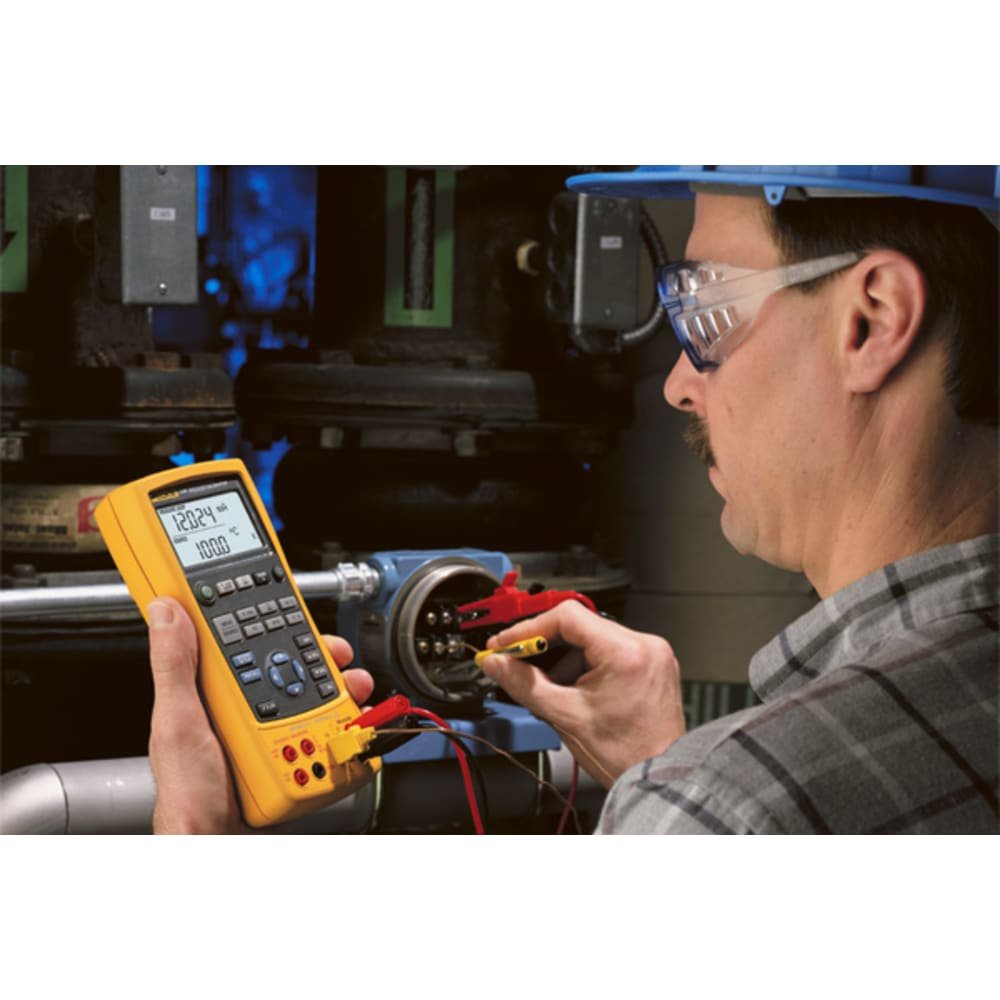

Fluke 725 US Multifunction Process Calibrator
$2,393.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke 725 US Multifunction Process Calibrator Specs
| 30.000 V | 0.02%+ 2 counts (upper display) |
| 30.000 V | 0.02%+ 2 counts (lower display) |
| 100.00 mV | 0.02%+ 2 counts |
| -10.00 mV to 75.00 mV | 0.025 % + 1 count (via TC connector) |
| 24.000 mA: | 0.02%+ 2 counts |
| 0.0 to 400.0 Ω | 0.1Ω (4-wire), 0.15Ω (2- and 3-wire) |
| 401 to 1500 Ω | 0.5Ω (4-wire), 1Ω (2- and 3-wire) |
| 1500 to 3200 Ω | 1Ω (4-wire), 1.5Ω (2- and 3-wire) |
| 2.0 to 1000.0 CPM | 0.05 % + 1 count |
| 1.0 to 1100.0 Hz | 0.05 % + 1 count |
| 1.00 to 10.00 kHz | 0.05 % + 1 count |
| Sensitivity | 1 V peak-to-peak-minimum |
| Accuracy | from 0.025% of range using any of 8 intrinsic safe pressure modules. (for detailed specifications refer to pressure modules in options and accessories) Modules available for differential, gauge, vacuum, absolute, dual and high pressure. |
| 100.00 mV | 0.02%+2 counts |
| 10.000 V | 0.02%+2 counts |
| -10.00 mV to 75.00 mV | 0.025 % + 1 count (via TC connector) |
| 24.000 mA (Source) | 0.02%+ 2 counts |
| 24.000 mA (Simulate) | 0.02%+ 2 counts |
| 15.0 to 400.0 Ω | 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA) |
| 401 to 1500 Ω | 0.5 Ω(excitation current 0.05 to 0.8 mA) |
| 1500 to 3200 Ω | 1 Ω(excitation current 0.05 to 0.4 mA) |
| 2.0 to 1000.0 CPM | 0.05% |
| 1.0 to 1100.0 Hz | 0.05% |
| 1.00 to 10.00 kHz | 0.25% |
| Waveform: | 5 V p-p squarewave, -0.1 V offset |
| NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: J: K: T: E: R: S: B: L: U: N: Resolution XK BP | 0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.8 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9 °C J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F 0.6°C 1.2°C |
| NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: Note: J: K: T: E: R: S: B: L: U: N: Resolution Resolution BP | 0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C Accuracy stated for 4-wire measurement. 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.4 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9 °C J, K, T, E, L, N, U: 0.1 °C, B, R, S: 1 °C 0.6°C 1.2°C |
| Source functions: | Voltage, current, resistance, frequency, temperature |
| Ramps | Slow ramp, Fast ramp, 25% step-ramp |
| Voltage: | 24 V |
| Accuracy: | 10% |
| Maximum current: | 22 mA, short circuit protected |
| Source functions: | Voltage, current, resistance, frequency, temperature |
| Steps | 25% of range, 100% of range |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -20 °C to 71 °C |
| Operating Altitude | 3000 m |
| Agency Approvals | EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992 |
| Size | 130 x 236 x 61 mm |
| Weight | 0.65 kg |
| Batteries | 4 AA alkaline batteries |
| Battery Replacement | Separate battery compartment, accessable without breaking calibration seal |
| Side port connections | Pressure module connector, also used for remote real-time programming |
- One set of AC72 alligator clips
- One set of stackable test leads
- One set of TL75 test leads
- User manuals
- NIST- traceable calibration report and data
