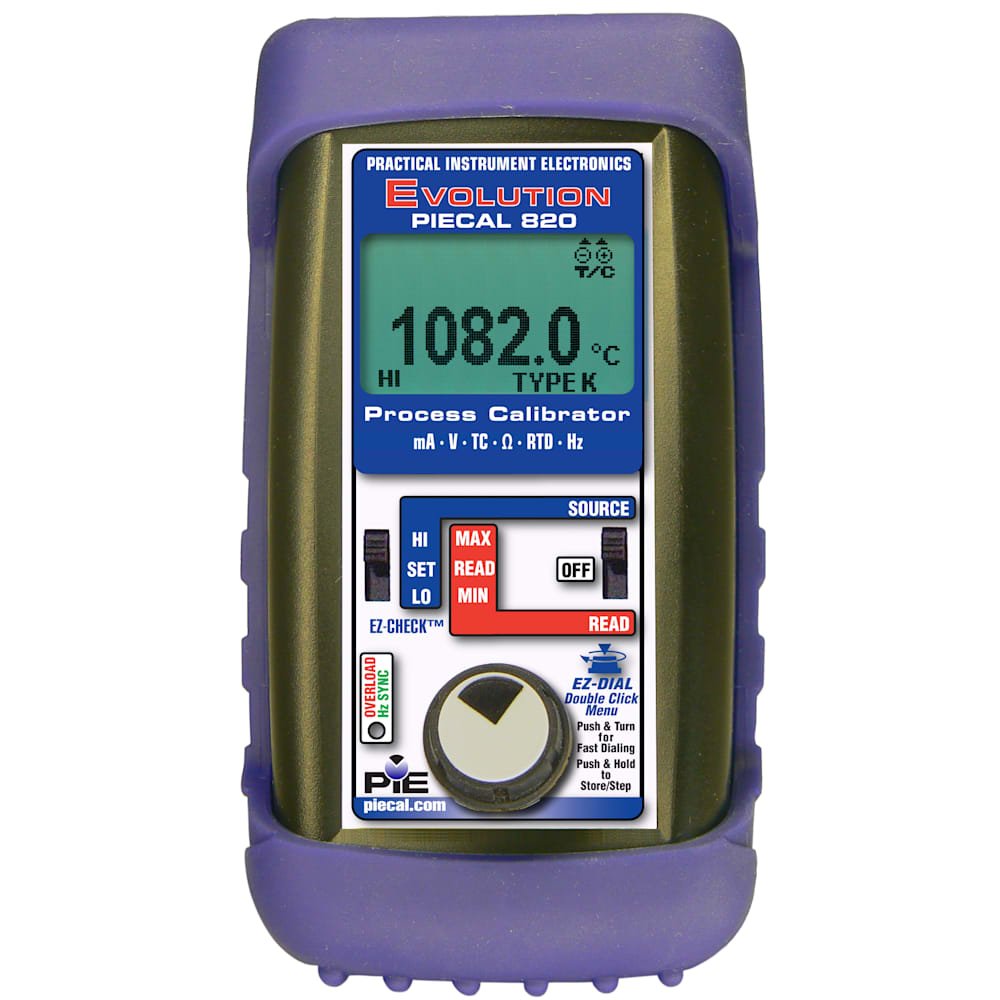

PIE 820PM Single Channel Multifunction Process Calibrator, Panel Mount Version

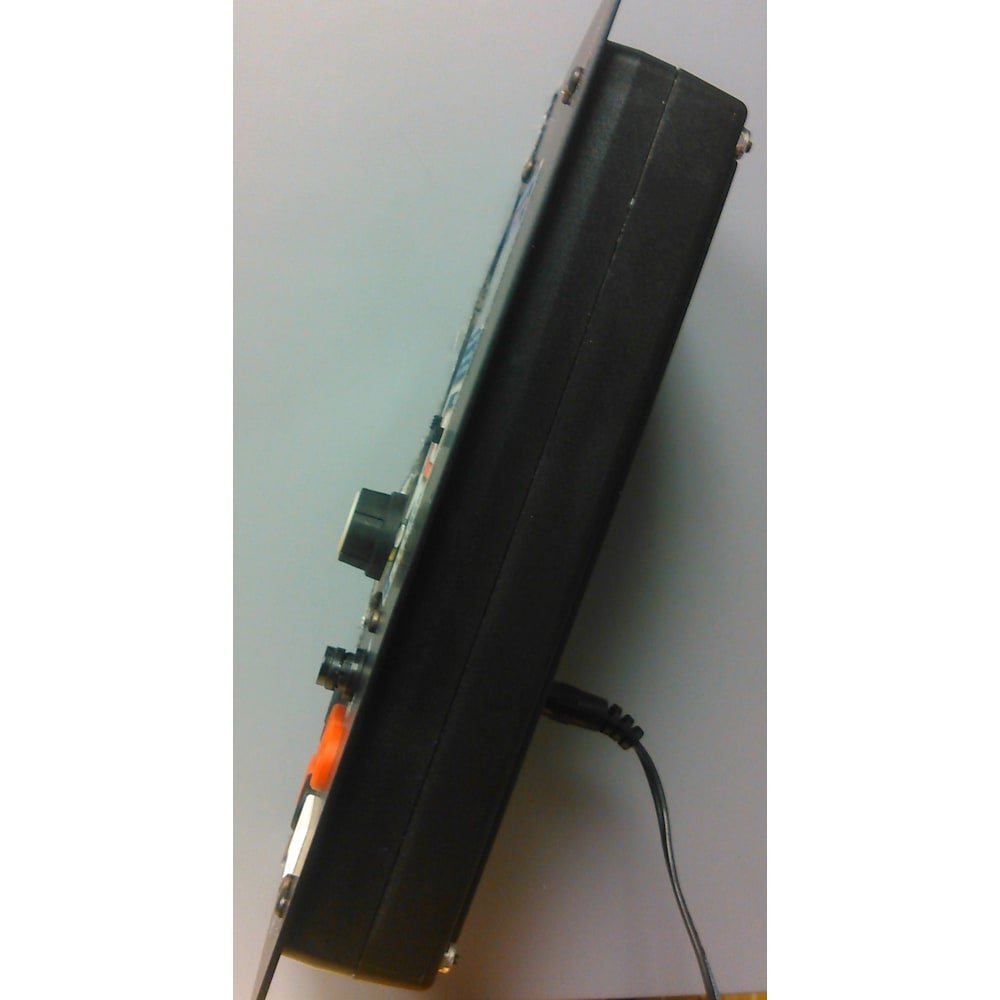

PIE 820PM Single Channel Multifunction Process Calibrator, Panel Mount Version - Image 2

PIE 820PM Single Channel Multifunction Process Calibrator, Panel Mount Version

$2,566.00
In Stock
In Stock
Add to wishlist
Commercial Pricing
Request for Quotations for Bulk Orders
SKU: PIE-820PM
Category:
Brand:

PIE 820PM Single Channel Multifunction Process Calibrator, Panel Mount Version Specs

Operating Temperature Range-20 to 60 °C (-5 to 140 °F)
Storage Temperature Range-30 to 60 °C (-22 to 140 °F)
Relative Humidity Range10 % ≤RH ≤90 % (0 to 35 °C), Non-condensing   10 % ≤RH≤ 70 % (35 to 60 °C), Non-condensing
Normal Mode Rejection50/60 Hz, 50 dB
Common Mode Rejection50/60 Hz, 120 dB
Size5.63 x 3.00 x 1.60 in, 143 x 76 x 41mm (LxWxH)
BatteriesFour “AA” Alkaline 1.5V (LR6)
Protection against misconnectionOver-voltage protection to 135 vrms (rated for 30 seconds) or 240 vrms (rated for 15 seconds)Red LED indicates OVERLOAD or out of range conditions
DisplayHigh contrast graphic liquid crystal display with 0.315” (8.0 mm) high digits. LED backlighting for use in low lit areas.
Ranges and Resolution0.00 to 24.00 mA or -25.0 to 125.0% of 4-20 mA
Accuracy≤ ± (0.03 % of Full Scale)
Voltage burden≤ 2V at 24 mA
Overload/Current limit protection25 mA nominal
Battery life≥ 125 hours nominal; ≥ 100 hrs with backlight on
Ranges and Resolution0.00 to 24.00 mA or -25.0 to 125.0% of 4-20 mA
Accuracy≤ ± (0.03 % of Full Scale)
Noise≤ ± ½ Least Significant Digit
Temperature effect≤ ± 0.01 %/°C of Full Scale
Loop compliance voltage≥ 24 DCV @ 20.00mA
Loop drive capability1200 Ω at 20 mA for 15 hours nominal;   950 Ω with Hart Resistor enabled
Ranges and Resolution-10.00 to 110.00 mV, ±10.25 V, ±60.0 VDC
Accuracy≤ ± 0.03 % of Full Scale
Temperature effect≤ ± 100 ppm/°C of Full Scale
Input resistance≥ 2 MΩ
Accuracy±(0.03% of Full Scale) [Note: Full Scale is 110.0 mV]
Cold Junction Compensation± 0.36°F (±0.2 °C)
Input Impedance> 1 Megohms
Open TC Threshold; Pulse10K Ohms nominal ; <10 µamp pulse for 300 milliseconds
Resistance Ranges0.00 to 410.00, 0.0 to 4001.0 Ohms
Accuracy±(0.03% of Full Scale + 0.075 Ohms)
Excitation Current0.5 mA nominal
ContinuityBeeps from 0.0 to 10.0 Ohms
AccuracyFrom 1 to 10.2mA +/- (0.03% of full scale + 0.075 ohms)   Below 1 mA +/- (0.03% of full scale + 0.075 ohms + 0.025mV/mA Excitation Current)
Resistance Range0.0 to 410.0, 0.0 to 4010
Allowable Excitation Current Range<410 ohms: 10.2 mA max; steady or pulsed/intermittent   410 to 4010 ohms; 1 mA max; steady or pulsed/intermittent
Pulsed Excitation Current CompatibilityDC to 0.01 second pulse width
Ranges1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1 to 9999.9 Hz, 0.001 to 20.000 kHz
Accuracy±(0.03% of Full Scale)
Output WaveformSquare Wave, Zero Crossing -1.0 to +5 V peak-to-peak ±10%
Risetime (10 to 90% of amplitude)< 10 microseconds
Output Impedance< 1 Ohm
Source Current> 1 mA rms at 20 kHz
Short Circuit DurationInfinite
Optical CouplingGreen LED (HZ SYNC) flashes at output frequency
Ranges & AccuracySame as Frequency Source
Accuracy±(0.03% of Full Scale)
Trigger Level1 V rms, dc coupled
Input Impedance> 1 Meg Ohm + 60 pF
T/CDegrees C Range
J-200.0 to -150.0
-150.0 to -50.0±0.7°
-50.0 to 100.0±0.5°
100.0 to 1200.0±0.4°
K-230.0 to -150.0
-150.0 to 0.0±1.0°
0.0 to 1100.0±0.6°
1100.0 to 1371.1±0.7°
T-260.0 to -230.0
-230.0 to -150.0±2.2°
-150.0 to 50.0±1.1°
50.0 to 300.0±0.5°
300.0 to 400.0±0.4°
E-240.0 to -150.0
-150.0 to -50.0±0.7°
-50.0 to 150.0±0.4°
150.0 to 1000.0±0.3°
R-18.3 to 50.0
50.0 to 500.0±3.7°
500.0 to 800.0±2.2°
800.0 to 1767.8±2.0°
S-18.3 to 50.0
50.0 to 300.0±3.7°
300.0 to 600.0±2.6°
600.0 to 1767.8±2.3°
B315.6 to 600.0
600.0 to 1050.0±4.0°
1050.0 to 1400.0±2.5°
1400.0 to 1820.0±2.1°
N-230.0 to 0.0
0.0 to 450.0±0.9°
450.0 to 1150.0±0.6°
1150.0 to 1300.0±0.7°
G   (W)100.0 to 300.0
300.0 to 650.0±2.1°
650.0 to 1800.0±1.3°
1800.0 to 2320.0±1.9°
C   (W5)-1.1 to 400.0
400.0 to 1500.0±1.3°
1500.0 to 2000.0±2.3°
2000.0 to 2320.0±2.6°
D-1.1 to 200.0
200.0 to 1350.0±1.4°
1350.0 to 2000.0±1.9°
2000.0 to 2320.0±2.6°
P-200.0 to 0.0
0.0 to 150.0±0.8°
150.0 to 1100.0±0.6°
1100.0 to 1395.0±0.8°
L   J-DIN-200.0 to 0.0
0.0 to 550.0±0.5°
550.0 to 900.0±0.4°
U   T-DIN-200.0 to -25.0
-25.0 to 100.0±0.7°
100.0 to 300.0±0.5°
300.0 to 600.0±0.4°

  • 820 Multifunction Calibrator
    •
  • Rugged painted aluminum mounting plate with mounting screws
    •
  • 110/120V AC adapter
    •
  • Shielded Banana Jacks
    •
  • 3 year warranty
    •
  • NIST calibration certificate
