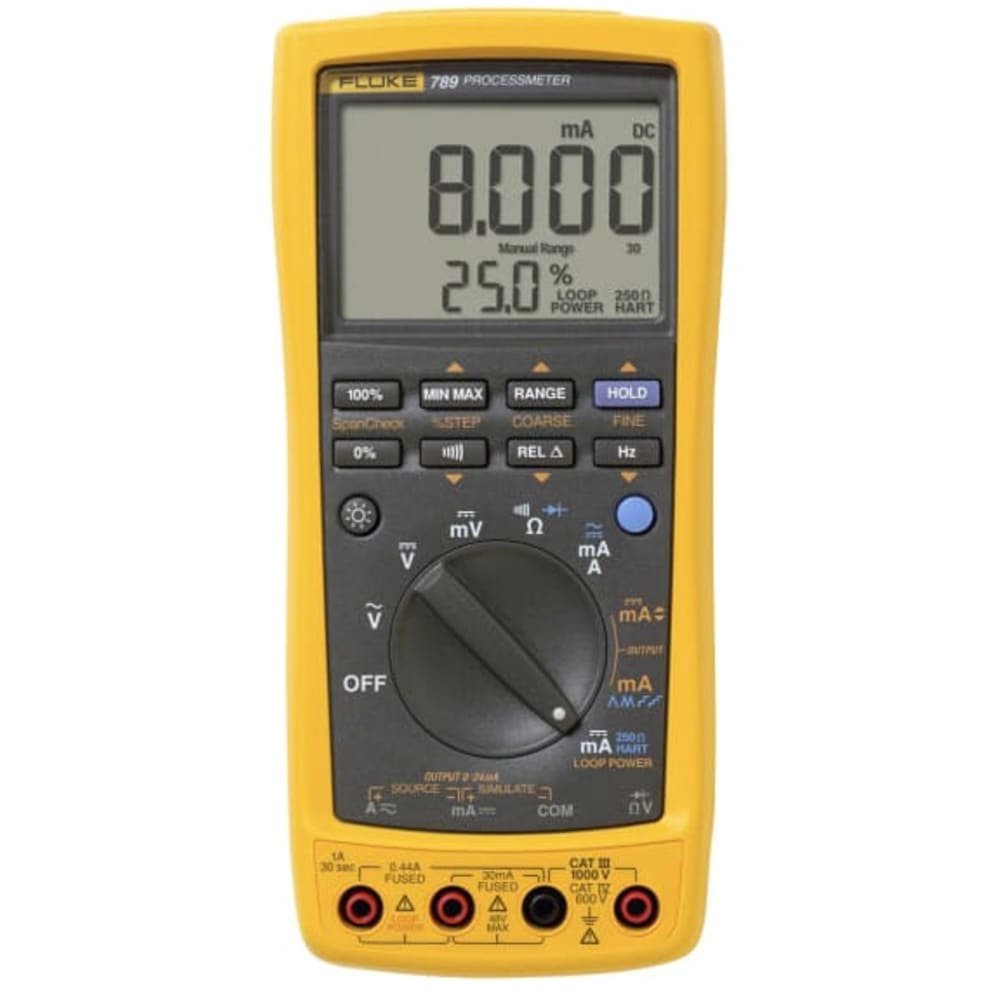

Fluke 789 Process Meter with 250 Ohm HART Resistor
$891.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Fluke 789 Process Meter with 250 Ohm HART Resistor Specs
| Range: | 0-1 A AC or DC |
| Resolution: | 1 mA |
| Accuracy: | 0.2% + 2 LSD (DC) |
| Range: | 0-30 mA |
| Resolution: | 0.001 mA |
| Accuracy: | 0.05% + 2 LSD |
| Range: | 0-20 mA or 4-20 mA |
| Resolution: | 0.05% of span |
| Drive Capability: | 24 V Compliance or 1200 Ω @ 20 mA |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD |
| Continuity | Beeps for resistance < 100 Ω |
| Range: | 0-1000 V AC (true-rms) or DC |
| Resolution: | 0.1 mV to 1.0 V |
| Accuracy: | 0.1% Rdg + 1 LSD (VDC) |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD |
| Diode test | 2.0 V shows diode voltage drop |
| Display current and % of span | Yes |
| Auto step, auto ramp | Yes |
| Operating Temperature | -20 ºC to 55 ºC |
| Storage Temperature | -40 ºC to 60 ºC |
| Humidity (Without Condensation) | 95% up to 30 ºC 75% up to 40 ºC 45% up to 50 ºC 35% up to 55 ºC |
| Temperature Coefficient | 0.05 x (specified accuracy) per ºC (for temperatures 28 ºC) |
| Electrical Safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92 |
| Overvoltage category | IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V |
| Maximum voltage | 1000 V rms |
| Size | 50 x 100 x 203 mm (1.25" H x 3.41"W x 7.35" L) |
| Weight | 610 g (1.6 lbs) |
| Batteries | 4 AA Alkaline batteries |
| Warranty | 3 years |
| Battery Life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) |
| Shock & Vibration | Random, 2 g, 5-500 Hz 1 meter drop test |
- AC175 Alligator Clips
- Four AA 1.5 V alkaline battery (installed)
- TL71 Safety-Designed Test lead Set
- Users Manual and Quick Reference Guide
