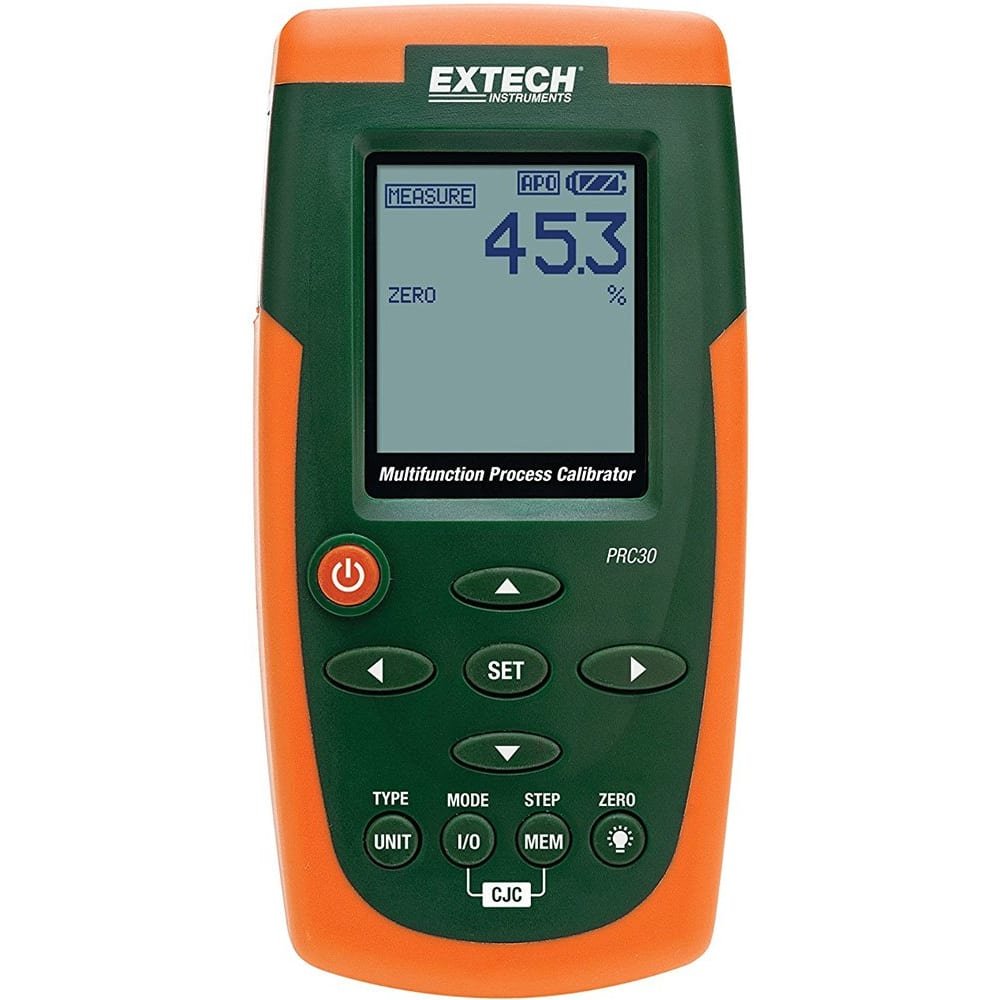

Extech PRC30-NIST – Multifunction Process Calibrator w/NIST
$601.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Extech PRC30-NIST - Multifunction Process Calibrator w/NIST Specs
| Specifications | Range |
| Current | 0 to 24mA, -25% to +125% |
| Max. Load | 1000O @ 24mA |
| Voltage | 0 to 2000mV, 0 to 20V |
| mV/Temp | -5 to 55mV |
| Type J | -58 to 1832°F (-50 to 1000°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) |
| Type T | -184 to 752°F (-120 to 400°C) |
| Type E | -58 to 1382°F (-50 to 750°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) |
| Current | 0 to 50mA, -25% to +230% |
| Voltage | 0 to 1999mV / 2 to 20V |
| mV/Temp | -10 to 60mV |
| Type J | -58 to 1832°F (-50 to 1000°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) |
| Type T | -184 to 752°F (-120 to 400°C) |
| Type E | -58 to 1382°F (-50 to 750°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) |
| Loop Power | 24V |
| Meter Dims (LxWxH) | 6.3" x 3.2" x 1.7" (159 x 80 x 44mm) |
| Meter Wt | 8.4oz (236g) - not including battery weight |
- NIST Calibration
- Test leads
- Alligator clips
- Thermocouple calibration cable with subminiature connector
- Universal calibration cables with sub-miniature terminal,
- 100V-240V AC universal adaptor with 4 plugs
- Six 1.5V AA batteries
- Hard carrying case
- Limited Two Years Warranty
