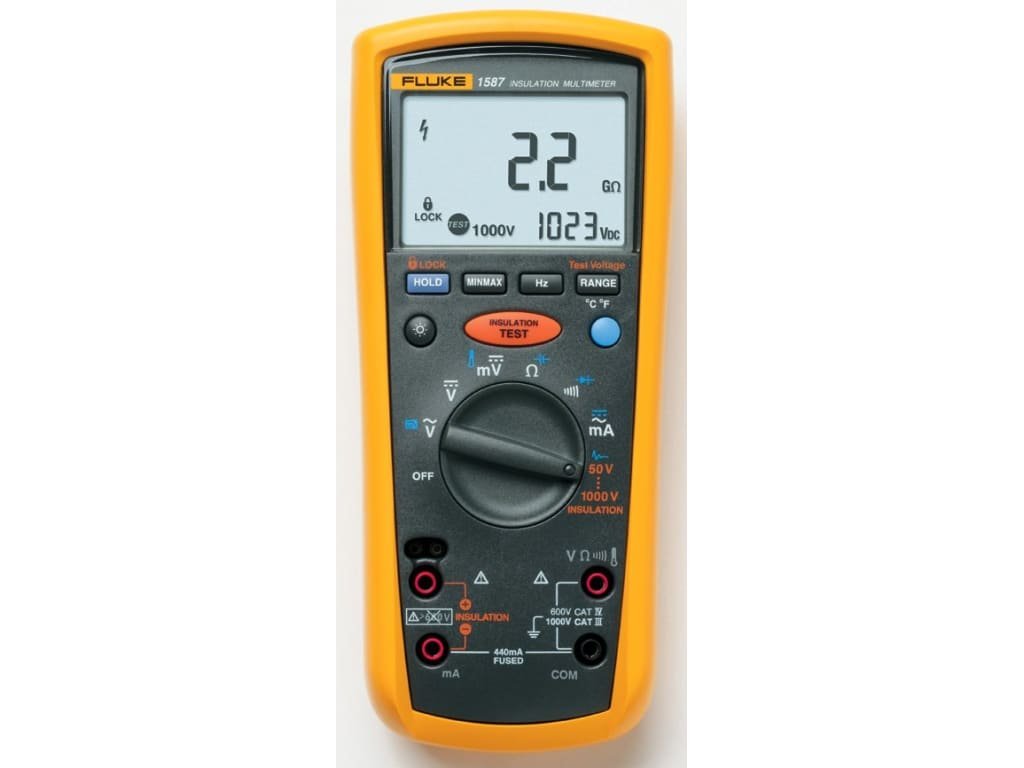

Fluke 1587 T Insulation Multimeter for Telecom
$809.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Description
Tech Specs
| Specification Name | Value |
| Multimeters Template | |
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 V (100 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.001 V (1 mV) |
| Maximum Current AC | 400 mA (0.4 A) |
| Minimum Current AC | 1 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 400 mA (0.4 A) |
| Minimum Current DC | 1 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ?(0.09%+2) |
| # Digit Display | 3.75 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Micro / Milli / Meg Ohmmeters Template | |
| IR Test Voltage | 100 V, 50 V |
| Maximum Insulation Resistance | 100 M Ohms (0.1 G Ohms) |
| Type | Battery |
| Minimum Insulation Resistance | 0.01 M Ohms (0.00001 G Ohms) |
| Variable Incremental Voltage | No |
| Display (Megohmmeter) | Digital |
| Continuity Test | Yes |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Battery |
| Timer | No |
| Test Equipment General Attributes | |
| Unique Features | Filter for motor drive measurements (1587 only) Auto-discharge of capacitive voltage for added user protection Accepts optional Fluke TPAK? magnetic hanging system to free your hands for other work Rugged, utility hard case allows you to bring everything you need for the job |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| IP Rating | IP40 |
| Product Weight | 1.2 LBS |
| Product Height | 1.97 IN |
| Product Length | 8.00 IN |
| Product Width | 3.94 IN |
| Shipping Weight | 4.91 LBS |
| Data Logging | No |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 4.02 IN |
| Shipping Length | 11.57 IN |
| Shipping Width | 14.06 IN |
Fluke 1587 T Insulation Multimeter for Telecom Specs
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 V (100 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.001 V (1 mV) |
| Maximum Current AC | 400 mA (0.4 A) |
| Minimum Current AC | 1 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 400 mA (0.4 A) |
| Minimum Current DC | 1 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ?(0.09%+2) |
| # Digit Display | 3.75 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| IR Test Voltage | 100 V, 50 V |
| Maximum Insulation Resistance | 100 M Ohms (0.1 G Ohms) |
| Type | Battery |
| Minimum Insulation Resistance | 0.01 M Ohms (0.00001 G Ohms) |
| Variable Incremental Voltage | No |
| Display (Megohmmeter) | Digital |
| Continuity Test | Yes |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Battery |
| Timer | No |
| Unique Features | Filter for motor drive measurements (1587 only) Auto-discharge of capacitive voltage for added user protection Accepts optional Fluke TPAK? magnetic hanging system to free your hands for other work Rugged, utility hard case allows you to bring everything you need for the job |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| IP Rating | IP40 |
| Product Weight | 1.2 LBS |
| Product Height | 1.97 IN |
| Product Length | 8.00 IN |
| Product Width | 3.94 IN |
| Shipping Weight | 4.91 LBS |
| Data Logging | No |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 4.02 IN |
| Shipping Length | 11.57 IN |
| Shipping Width | 14.06 IN |
