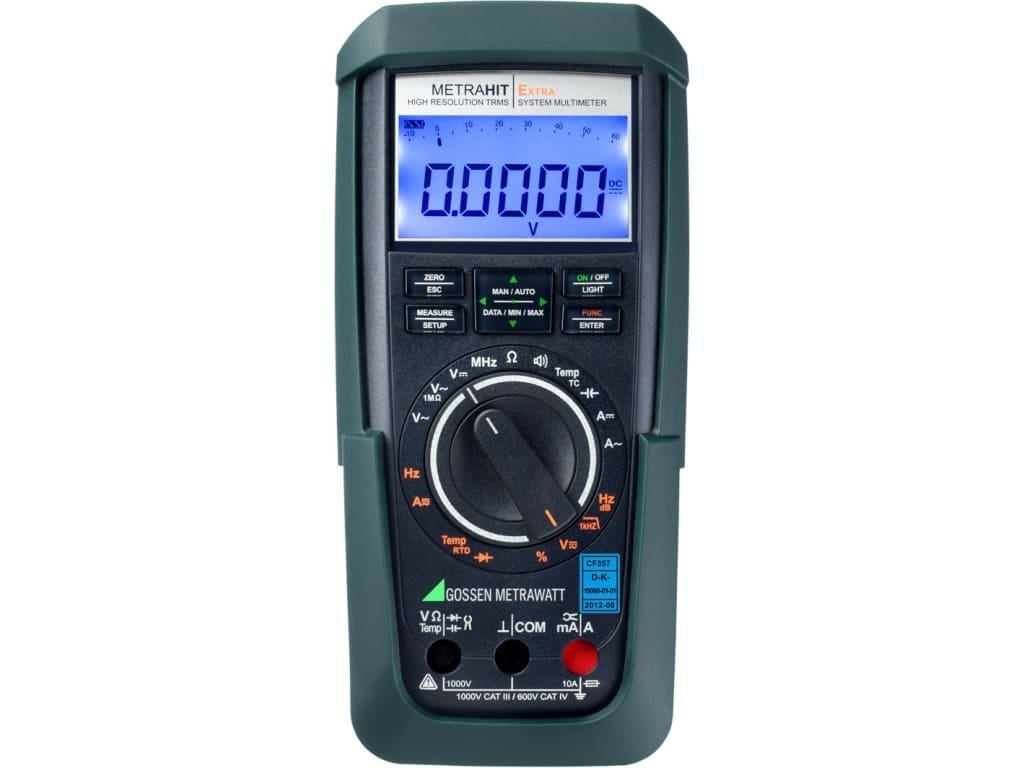

Gossen Metrawatt M250A – High-End TRMS Digital Multimeter, System Compatible with Data Memory
$696.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Description
Tech Specs
| Specification Name | Value |
| Multimeters Template | |
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 10 uV (0.01 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 10 uV (0.01 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 600 uA (0.6 mA) |
| Resolution AC Current | 10 nA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 600 mA |
| Resolution DC Current | 10 nA (0.00001 mA) |
| Basic Accuracy V DC | .05 |
| # Digit Display | 4.75 |
| Counts | 60000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Test Equipment General Attributes | |
| Warranty | 3 YEARS |
| Warranty Details | For multimeters a 3-year warranty applies from the date of delivery. A warranty period of 3 years applies to energy meters, summators, load optimizing systems, controllers and the A2000 power meter which have been delivered since 1st July 2011. The warranty covers proven defects with regard to materials and workmanship. Fuses, batteries, manuals and mechanical components which are subject to normal wear and tear are excluded. Furthermore, the warranty covers neither failure or damage caused by improper use, use which does not comply with the product specifications, negligence, tampering, accident or abnormal operating conditions, nor consequential costs of any sort. We make no warranty for products with broken seals or products which have been opened up. |
| Safety Approval | CE |
| Interfaces I/O | IR |
| IP Rating | IP52 |
| Product Height | 1.7 IN |
| Product Length | 7.85 IN |
| Product Width | 3.5 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA, NimH |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Germany |
Gossen Metrawatt M250A - High-End TRMS Digital Multimeter, System Compatible with Data Memory Specs
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 10 uV (0.01 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 10 uV (0.01 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 600 uA (0.6 mA) |
| Resolution AC Current | 10 nA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 600 mA |
| Resolution DC Current | 10 nA (0.00001 mA) |
| Basic Accuracy V DC | .05 |
| # Digit Display | 4.75 |
| Counts | 60000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Warranty | 3 YEARS |
| Warranty Details | For multimeters a 3-year warranty applies from the date of delivery. A warranty period of 3 years applies to energy meters, summators, load optimizing systems, controllers and the A2000 power meter which have been delivered since 1st July 2011. The warranty covers proven defects with regard to materials and workmanship. Fuses, batteries, manuals and mechanical components which are subject to normal wear and tear are excluded. Furthermore, the warranty covers neither failure or damage caused by improper use, use which does not comply with the product specifications, negligence, tampering, accident or abnormal operating conditions, nor consequential costs of any sort. We make no warranty for products with broken seals or products which have been opened up. |
| Safety Approval | CE |
| Interfaces I/O | IR |
| IP Rating | IP52 |
| Product Height | 1.7 IN |
| Product Length | 7.85 IN |
| Product Width | 3.5 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA, NimH |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Germany |
