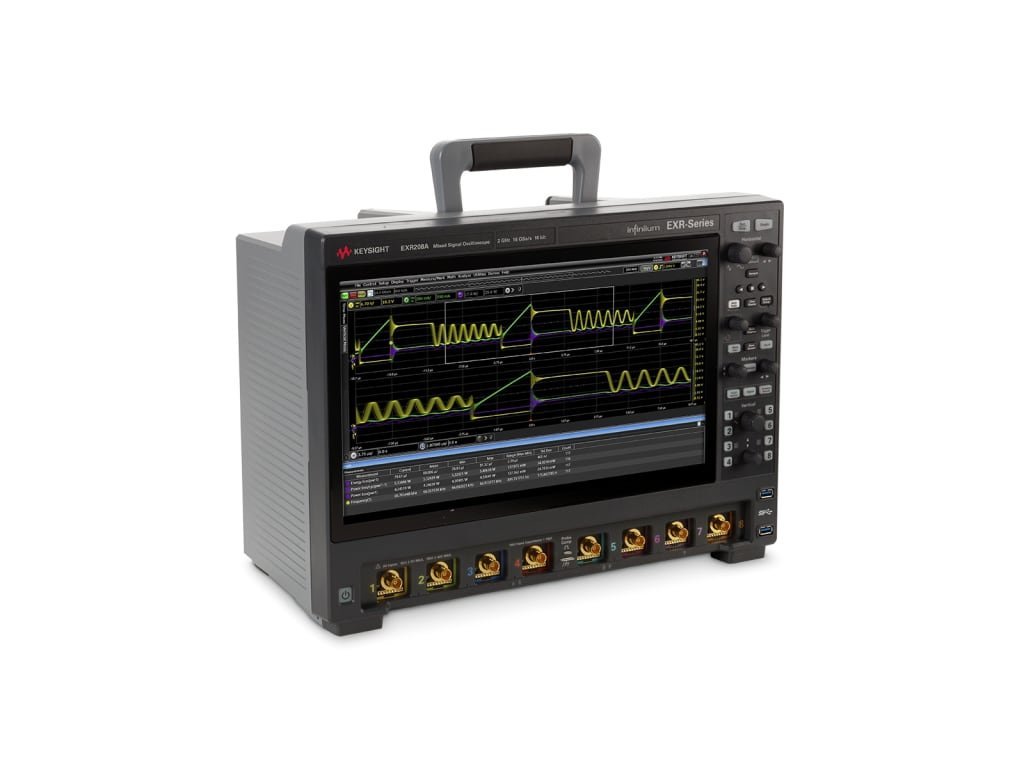

Keysight EXR208A – Digital Oscilloscope (2 GHz / 8 Channels)

Description

The Keysight EXR208A mixed-signal platform accelerates validation routines on complex multi-rail power distribution networks. This eight-channel instrumentation system projects real-time electrical trace metrics onto a large 15.6-inch visual tracking screen, allowing automated testing engineers to trace concurrent horizontal clock deviations and asynchronous glitch signatures without data attenuation near the Nyquist frequency boundary.

Operating at a continuous 16 GS/S real-time sampling capability with an ultra-low 215 ps sub-nanosecond rise time threshold and a 100 Mpts acquisition memory allocation, the platform captures random voltage transients accurately. The integrated 16-channel digital logic analyzer path bypasses consumer-grade interface latency, delivering clean parametric tracking data to hardware test benches.

Key Features of Keysight EXR208A

• Eight Analog Input Channels: Coordinates concurrent timing analysis across eight decoupled multi-phase power distribution networks.
• 10-Bit Vertical Quantization Depth: Pinpoints miniscule baseline noise spikes buried under standard 8-bit tracking resolutions.
• High-Speed 16 GS/S Sampling: Captures single-shot peak voltage glitches on fast microvolt-level serial communication data lines.
• 16 Integrated Logic Channels: Traces high-density mixed-signal firmware states matched alongside analog physical-layer wave patterns.
• 100 Mpts Waveform Memory: Retains high-fidelity trace data without truncating sub-nanosecond anomalies across prolonged test sweeps.
• 200,000 wfms/s Update Engine: Flushes out elusive clock jitter anomalies by maintaining active hardware trace refreshing.
• Expansive 15.6-Inch Visual Workspace: Unifies multi-channel diagnostic screens inside an uncompromised, rigid 32 lbs laboratory chassis.

Multi-Rail Power Domain Quantization Tracking

The core processing layer leverages a premium 10-bit vertical resolution digitizer combined with an ultra-fast 215 ps rise time and an exceptional 16 GS/S real-time sampling rate to eliminate configuration latency during unpredictable circuit evaluations. This eight-channel configuration enables automated test engineers and firmware developers to view elusive low-amplitude anomalies and random clock jitter across eight separate signal lines simultaneously without risking signal attenuation near the Nyquist frequency limit. All real-time waveforms pass directly through the integrated digitizer to achieve a superior signal-to-noise ratio and isolate delicate signal paths from ambient electromagnetic facility noise floor interference.

Enterprise Hardware Infrastructure Lifecycle

Constructed to excel in automated testing environments (ATE), high-volume production benches, and advanced engineering laboratories, the heavy-duty enclosure optimizes workbench space while providing a 36.8 lbs shipping weight footprint built for secure long-distance logistics. The multi-instrument layout native to the EXR-Series framework packages critical digital logic mapping and multi-channel parametric testing right on the bench, ensuring immediate automated data extraction over standard communication loops without structural baseline thermal drift. Guaranteeing long-term corporate asset protection, the test instrument comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
