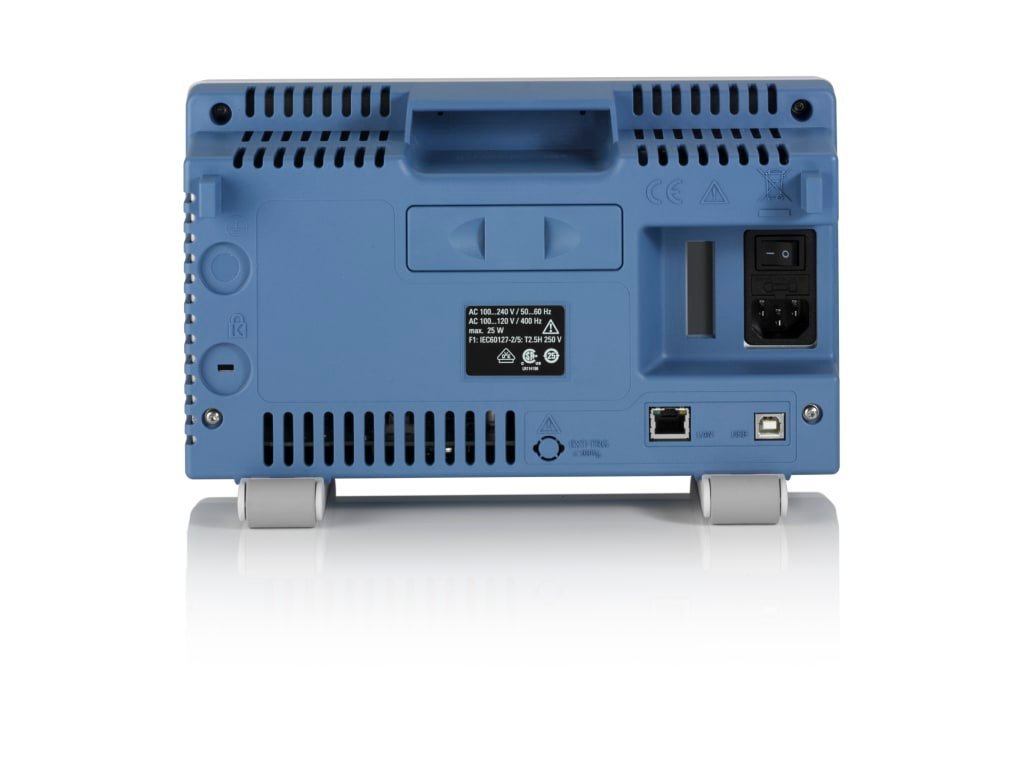

Rohde & Schwarz RTC1002 Two Channel, 50 MHz Digital Oscilloscope

Description

The Rohde & Schwarz RTC1002 multi-instrument digital storage oscilloscope delivers exceptional 8-in-1 cross-domain diagnostic performance within a highly compact, workspace-conscious laboratory bench footprint. This dual-channel analog instrumentation platform features an integrated 6.5-inch VGA display panel driven by custom hardware processing arrays, enabling test engineers, repair depots, and academic classrooms to analyze semiconductor components, verify protocol communication lines, and trace signal propagation velocities simultaneously without layout rendering latency.

By coupling a 50 MHz software-upgradable bandwidth baseline with a rapid 1.25 GS/S maximum real-time sampling rate, a 7 ns rise time threshold, and a 1 MP deep standard acquisition memory allocation, the platform captures random voltage transients accurately. This space-saving device incorporates a silent, passive thermal layout to minimize vertical tracking drift over extended laboratory operational loops.

Key Features of Rohde & Schwarz RTC1002

• 8-in-1 Integrated Multi-Instrument Core: Packages scope, logic analyzer, protocol analyzer, pattern generator, component tester, DVM, and counter.
• Integrated Hardware Component Tester Module: Evaluates discrete semiconductor networks and passive component parameters natively on the bench.
• Silent Hardware Fanless Layout Design: Avoids dust intake contamination while ensuring reliable, silent laboratory workbench execution.
• Upgradeable 50 MHz Base Bandwidth: Scales smoothly to 300 MHz frequencies via software updates as requirements expand.
• Dual Analog Input Channels: Coordinates point-to-point differential voltage probing on low-frequency analog paths.
• High-Speed 1.25 GS/S Real-Time Sampling: Captures repetitive signal patterns and unexpected voltage glitches accurately across active channels.
• Ultra-Portable 3.75 LBS Enclosure Frame: Optimizes space footprints through a compact 11.22 x 6.89 x 5.51 IN layout.

8-in-1 Multi Domain Integration and Component Diagnostics

The core processing layer leverages a premium 8-bit vertical resolution digitizer core combined with a responsive 7 ns rise time and advanced hardware controls to eliminate configuration latency during critical hardware troubleshooting. This dual-channel setup supports the optional activation of a 16-channel digital logic analyzer path, enabling automated test engineers and firmware developers to view elusive low-amplitude anomalies and random clock jitter concurrently without risking trace distortion near the system Nyquist limit. All real-time signals pass directly through the integrated digitizer framework and hardware component testing loops to achieve an optimal signal-to-noise ratio and isolate delicate validation tracks from ambient electromagnetic laboratory facility noise floor interference.

Silent Fanless Workspace Infrastructure Safety

Constructed to excel in high-density corporate research suites, university lecture halls, and shared technical student test rows, the rugged enclosure design optimizes limited table space while maintaining portable workspace flexibility under full international trade compliance rules. The structural multi-instrument framework native to the system packages critical parameter verification utilities within a transportable footprint, ensuring immediate automated data extraction over standard computer communication paths without inducing structural baseline thermal drift during long diagnostic loops. Guaranteeing exceptional long-term corporate asset protection and clear equipment transparency, this professional compact bench instrument comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
