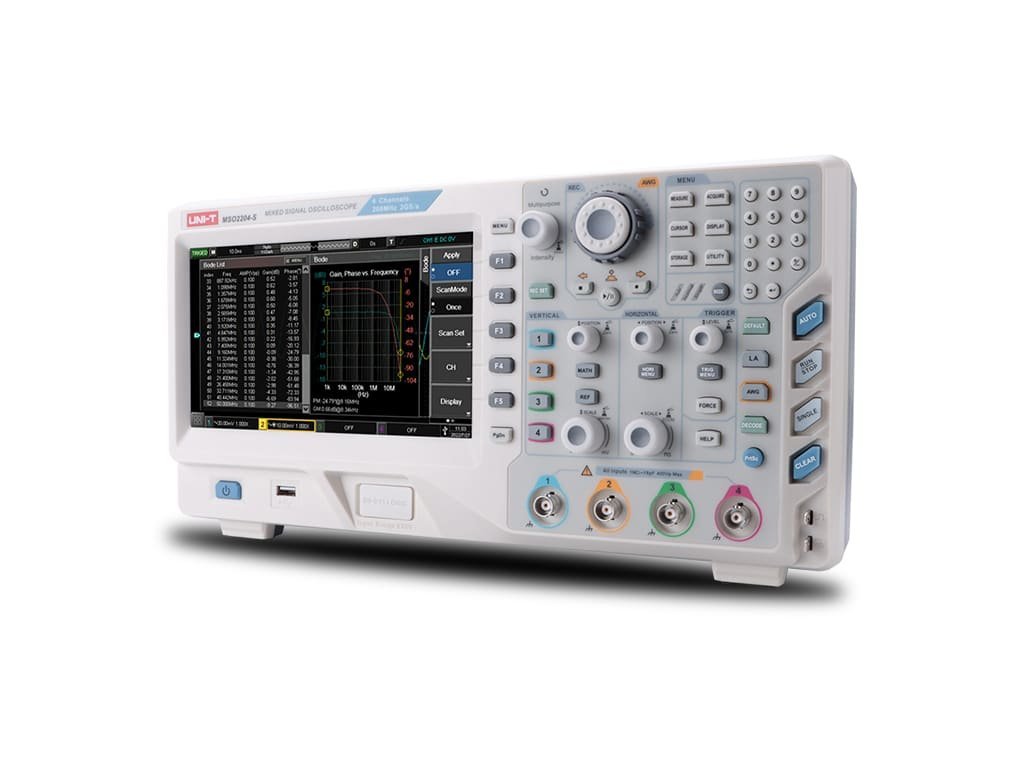

UNI-T MSO2202-S – Mixed Signal Oscilloscope (2 Analog Channels / 200 MHz) with Built-In 50 MHz AWG

Description

The UNI-T MSO2202-S multi-instrument high-definition digital storage oscilloscope packages elite signal diagnostic parameters, high-density logic tracking, and integrated dual-channel component stimulation features within a secure workbench environment. This specialized validation platform incorporates a built-in Dual-CH 50 MHz Arbitrary Waveform Generator (AWG) alongside a sixteen-channel digital logic analyzer path behind an 8-inch capacitive multi-touch control user interface, enabling development engineers to execute real-time frequency response tests, trace multi-point voltage changes, and monitor firmware register states simultaneously without experiencing interface rendering latency.

Operating at a continuous 2 GS/S maximum analog hardware sampling velocity with an elite 200 MHz wideband system bandwidth, an ultra-fast sub-nanosecond 1.8 ns rise time threshold, and a 56 MP per channel deep acquisition memory footprint, the platform maintains superior tracking fidelity. This highly responsive framework incorporates an Ultra Phosphor 2.0 engine to prevent tracking dataset truncation across active checking channels.

Key Features of UNI-T MSO2202-S

• Integrated 50 MHz Dual-Channel Signal Generator: Stimulates component diagnostic paths natively using sine, square, ramp, pulse, arb, noise, and DC signatures.
• Integrated Hardware Bode Plot Suite: Automates advanced frequency response analysis natively without external network tracking accessories.
• Two Analog + 16 Digital Channels: Correlates time-aligned parallel or serial digital states alongside active analog traces natively.
• 200 MHz Wideband Base Bandwidth: Verifies sharp timing edges on high-frequency clock routes and wideband serial buses.
• 1.8 ns Sub-Nanosecond Rise Time: Resolves ultra-sharp fast-edge digital transitions to accurately evaluate critical timing violations.
• Massive 56 MP Per Channel Memory: Sustains peak horizontal sampling resolution over long, uninterrupted trace capture windows.
• Blistering 1,000,000 wfms/s Fast Update Core: Exposes rare circuit faults instantly by minimizing internal hardware trigger dead time.

Dual-Channel Component Stimulation and Bode Plot Tracing

The core processing layer across this premium integrated environment leverages high-resolution digital processing arrays paired with a blistering 1.8 ns rise time and an exceptional hardware acquisition matrix running up to 1,000,000 waveforms per second in Fast mode to eliminate data manipulation latency during critical wideband diagnostics. This comprehensive setup enables power system engineers, automated test labs, and firmware developers to view elusive low-amplitude noise anomalies cross-aligned with active logical pathways near the system Nyquist frequency limit, utilizing its built-in hardware real-time serial bus analysis tools to extract protocol anomalies smoothly. All real-time signals process directly through the internal digitizer framework to achieve an optimal signal-to-noise ratio and isolate active signal paths from ambient laboratory facility electromagnetic interference noise floors using a 256-level intensity grading display map across Instek brand instrumentation tracks.

Automated Workspace Integration and Asset Longevity

Constructed to excel in tight laboratory racks, high-volume production benches, and advanced electronic engineering laboratories, the heavy-duty enclosure configuration optimizes workbench footprints while providing versatile connectivity pathways. The structural multi-instrument framework native to the system ensures immediate automated data offloading from local internal memory networks onto external storage targets over standard communication interfaces over integrated LAN, USB Host/Device, VGA Out, AWG Out, and AUX Out endpoints without structural baseline thermal drift during long-term setups. Guaranteeing clear equipment transparency and asset lifecycle alignment, this professional high-frequency hardware configuration comes standard with a verified 3-Year Warranty framework to ensure continuous equipment dependability.
