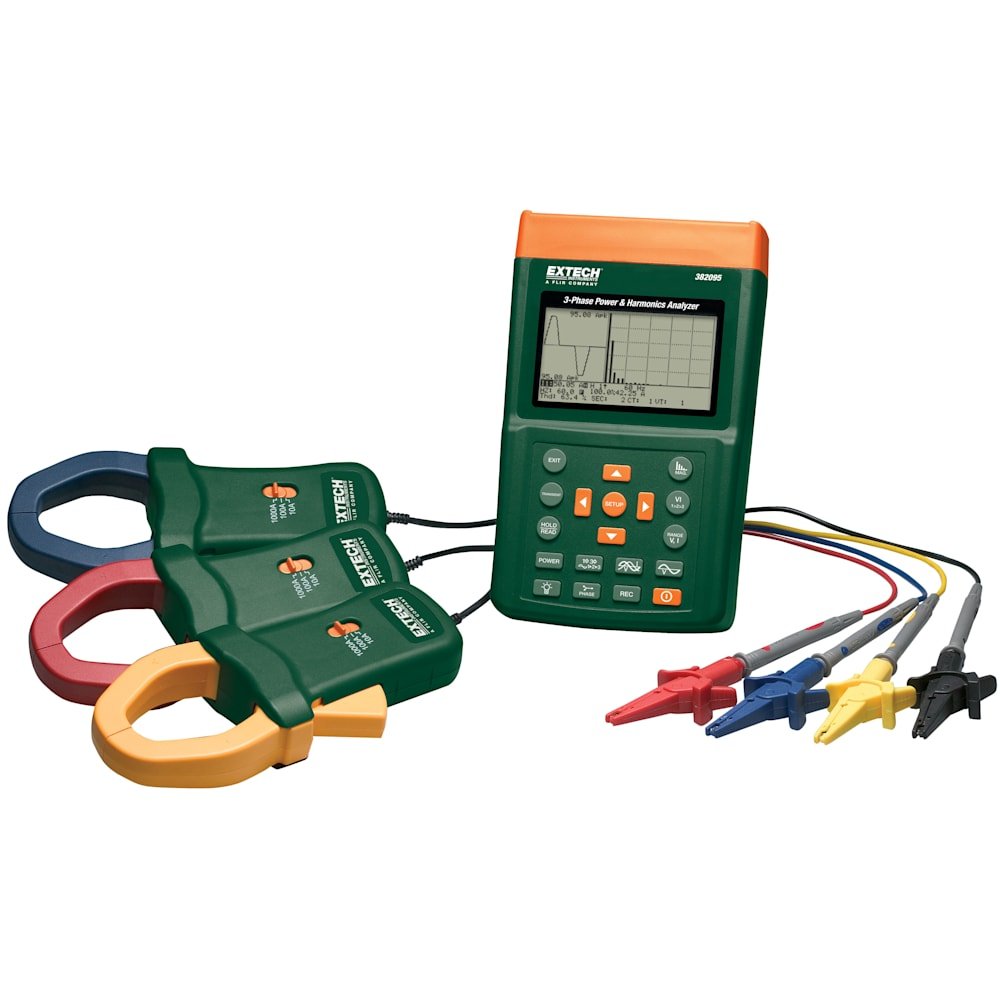

Extech 382095 1000A 3-Phase Power & Harmonics Analyzer
$2,047.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Extech 382095 1000A 3-Phase Power & Harmonics Analyzer Specs
| Specifications | Range |
| ACV (True RMS) | 600V |
| ACA (True RMS) | 1000A |
| Active Power (kW) | 9.999MW |
| Apparent Power (kVA) | 9999kVA |
| Reactive Power (kVAR) | 9999kVAR |
| Power Factor | 0.0 to +1.00 |
| Frequency | 45-65Hz |
| Phase | -180.0°~ 0°~ |
| Harmonics | 1 to 99 |
| Crest Factor | 1.00 to 99.99 |
| Peak AC Voltage accuracy | ±(5%rdg+30d) |
| Peak AC Current accuracy | ±(5%rdg+30d) |
| Active Power Energy (kWh) | 0mWh to 999,999kWh |
| Reactive Power Energy (kVARh) | 0.0kVARh to 1000MWh |
| Datalogging | 52428 records (1P2W)/17476 records (3P4W) |
| Warranty/CE | 1 year/ CE approved |
| Dimensions | Meter: 10.1 x 6.1 x 2.3" (257 x 155 x 57mm) Clamp: 2.2" (55mm), 2.5" x 1.0" (64x24mm) busbar |
| Weight | Meter: 2.5 lbs (1160g) Clamp: 1.3 lbs (600g) |
- (3) 1000A current clamps
- 4 voltage leads with alligator clips
- 8 AA batteries
- AC adaptor
- Software
- PC interface cable
- Carrying case
