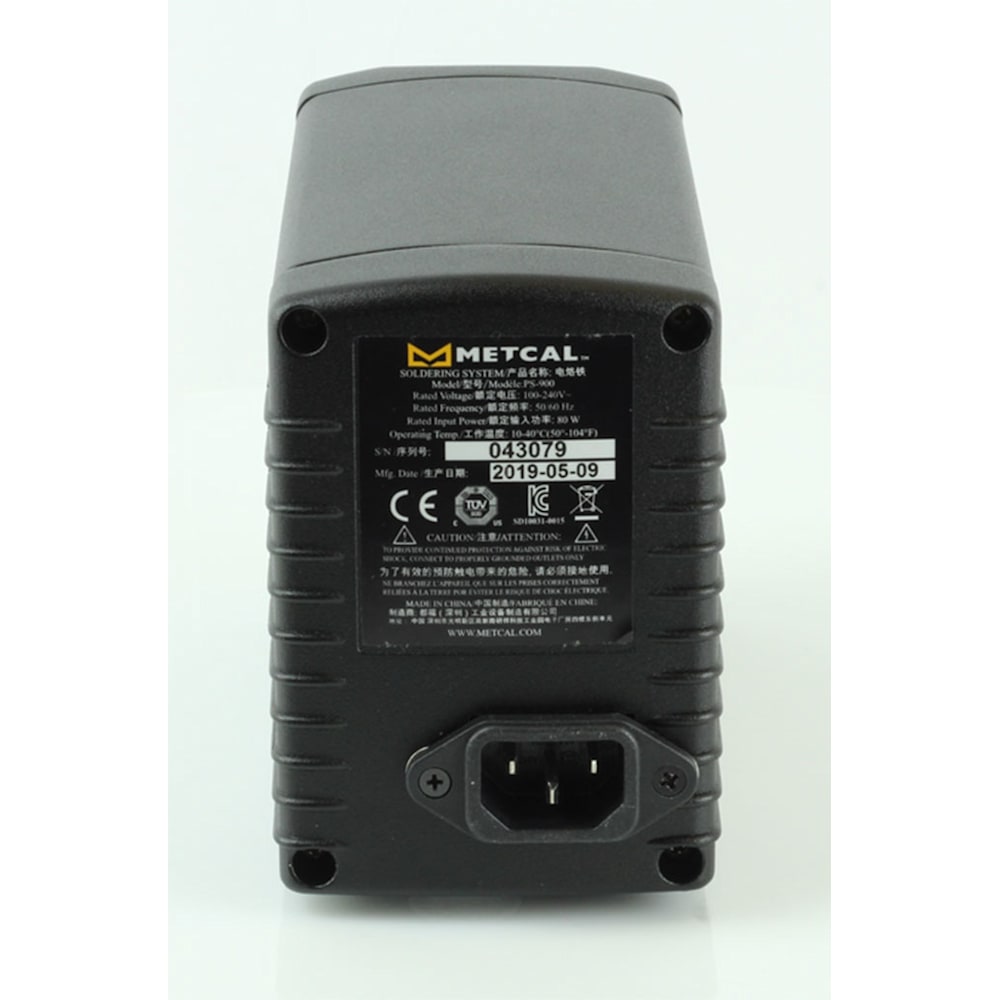

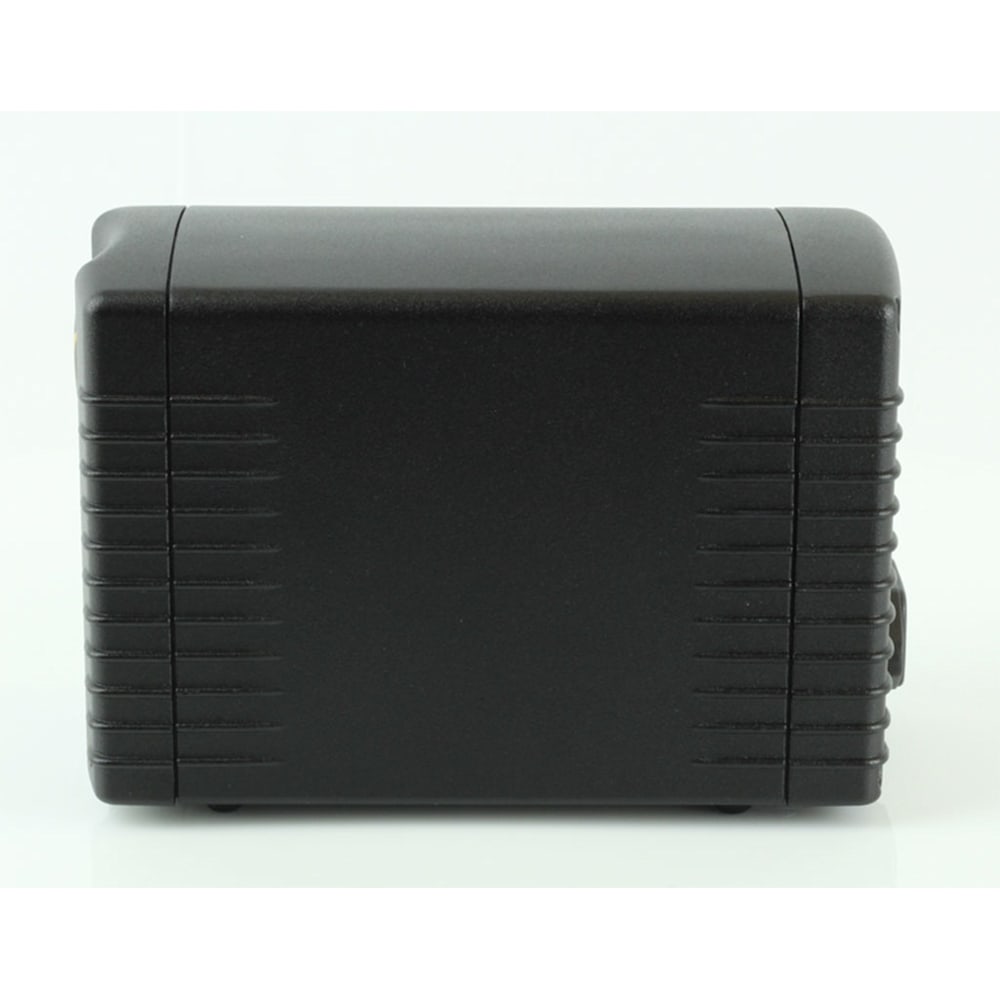

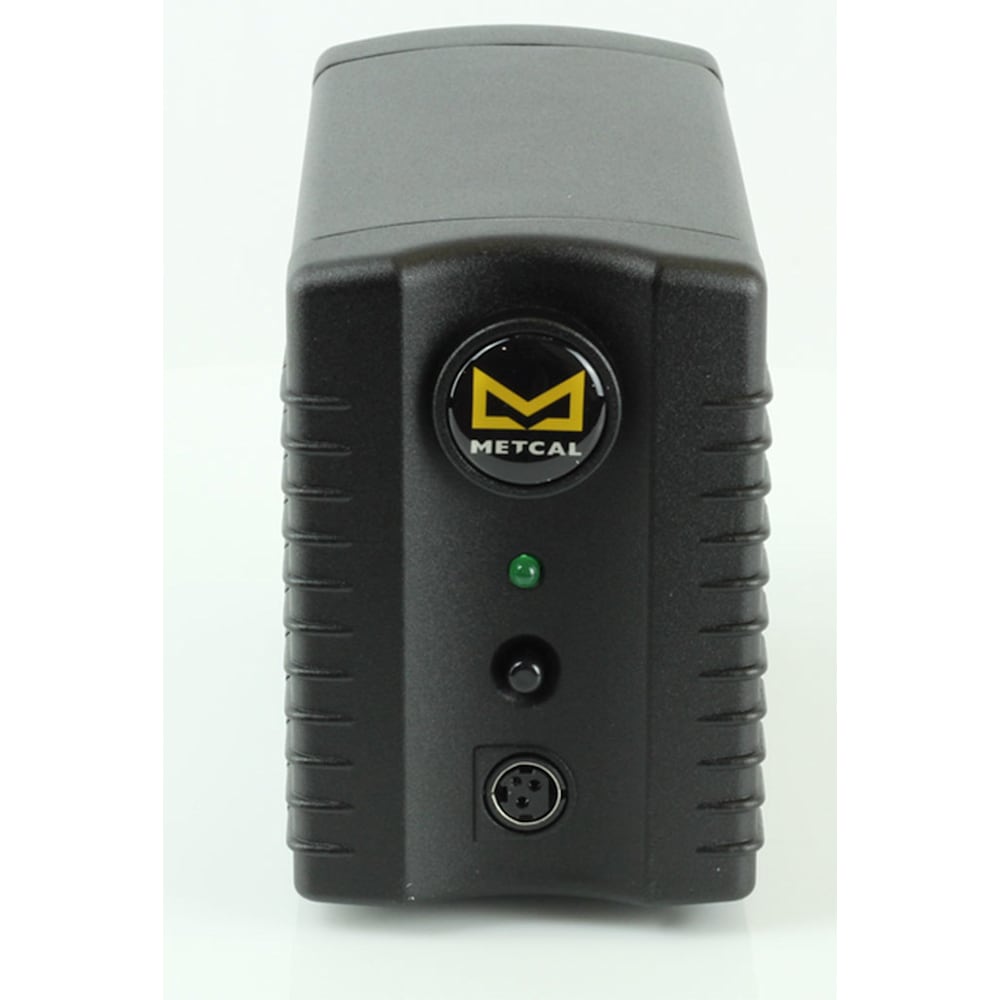

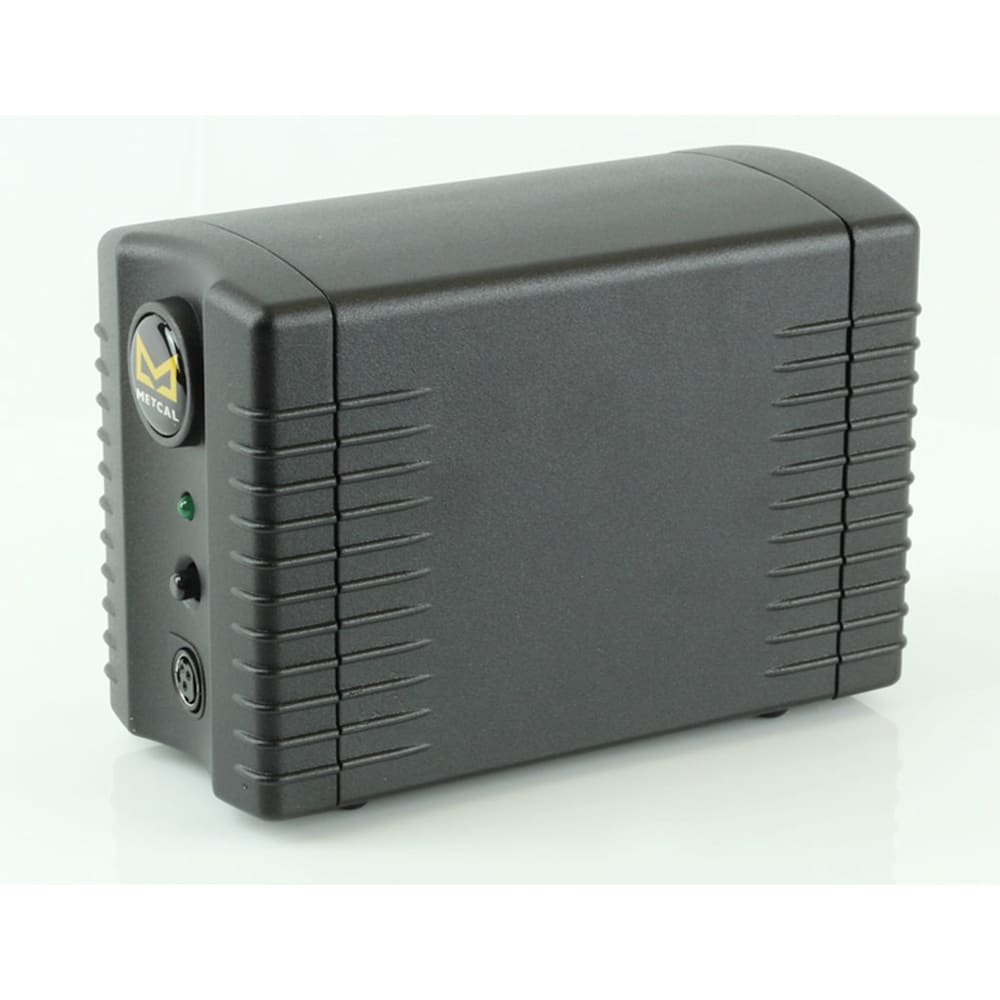

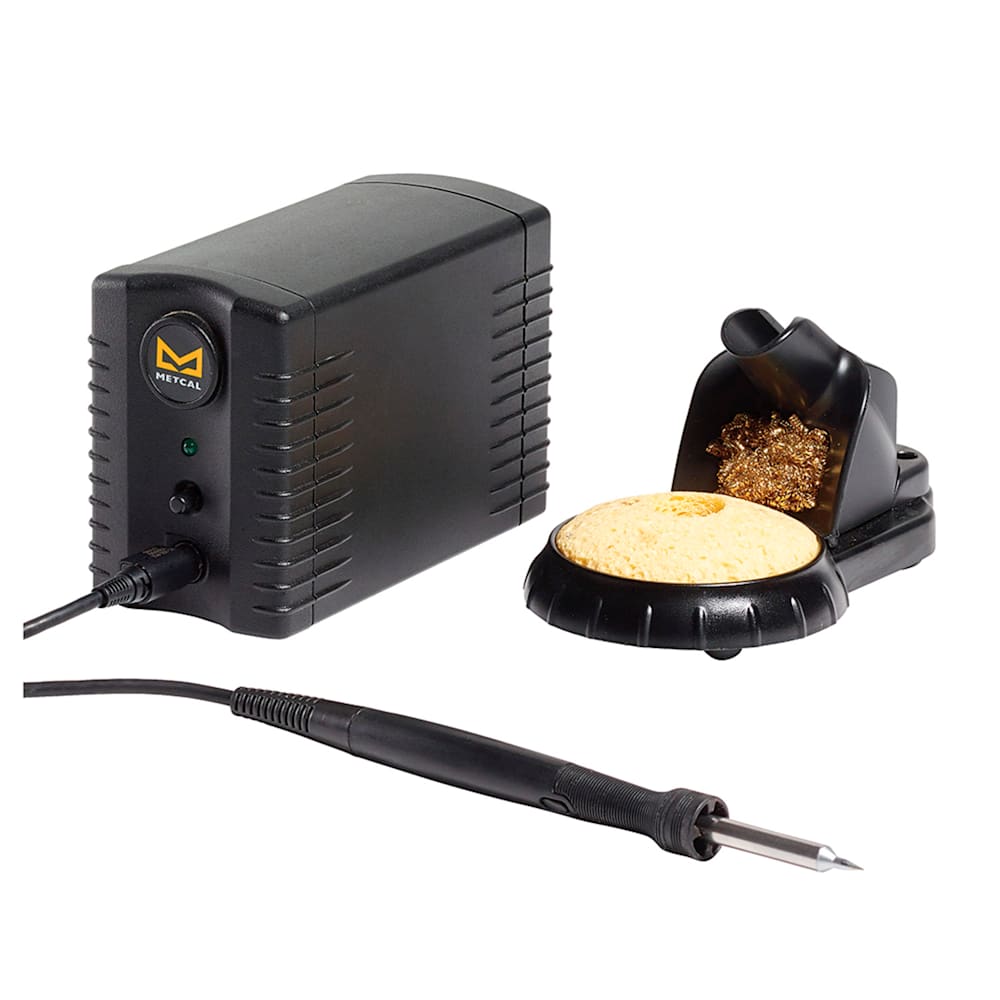

Metcal PS-900 – 60 Watt SmartHeat Soldering System
$217.00
In Stock
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Metcal PS-900 - 60 Watt SmartHeat Soldering System Specs
| Ambient Operating Temperature | 10 - 40°C |
| Maximum Enclosure Temperature | 65°C |
| Input Line Voltage | 100 - 240 VAC |
| Input Line Frequency | 50/60 Hz |
| Power Consumption | 90 Watts max. |
| Output Power | 60 Watts max. at 22°C ambient temperature |
| Output Frequency | 470 KHz |
| Power Cord (3-wire) | 183 cm 18/3 SJT |
| Dimensions (approx.) | W = 80 mm (3.1"), D = 160 mm (6.3"), H = 115 mm (4.5") |
| Tip-to-Ground Potential | < 2 mV True RMS, 50-500 Hz |
| Tip-to-Ground Resistance | < 2 ohms DC, unit on |
| Idle Temperature Stability | ± 1.1°C in still air |
| Handle Cord Assembly Length | 122 cm - burn proof, ESD safe |
| Connector | 3-pin power connector |
| Dimensions (approx.) | Overall length (with tip): 230 mm (9.06") with standard tips Grip diameter: 13 mm (0.51") Tip to grip: 58 mm (2.28") Tip shaft diameter: 8.0 mm (0.31") Tip length: 82 mm (3.23") to 93mm (3.66") (typical) |
| Dimensions | W = 105 mm (4.1"), D = 175 mm (6.9"), H = 90 mm (3.5") |
- PS-PW900 - Power Supply
- PS-HC3 - Hand-piece with long cord with Coil Assembly
- SFV-CH15A - Chisel soldering tip 1.5mm (.06")
- WS2-NS - Workstand
- AC-CP2 - Tip removal pad
