Monarch 6400-011 Examiner 1000 – System Vibration Meter with Stethoscope, No OnTime Software
In Stock
Commercial Pricing
Request for Quotations for Bulk Orders
Monarch 6400-011 Examiner 1000 - System Vibration Meter with Stethoscope, No OnTime Software Specs
| Vibration Sensor | Piezoelectric Accelerometer 100 mV/g |
| Display | 3.5 digit LCD with measurement, Hold and Low Battery indicators |
| Range | Acceleration: 0.01 to 19.99 g (RMS) Velocity: 0.01 to 19.99 in/sec (RMS) 199.9 mm/sec (RMS) 0.20 to 500 mm/sec (RMS) |
| Frequency Range | Overall: 10 Hz to 10 kHz Overall: 10 Hz to 10 kHz Envelope: 0.5 kHz to 10 kHz |
| Output | Audio (3.5 mm) mini plug Sensor Power: 12 vdc @ 2mA |
| Power | (2) Alkaline "AA" batteries |
| Operating Time | 20 hours continuous |
| Weight | 2.85 LB (1.30 kg) for complete kit |
| Dimensions | 6.3 x 3.3 x 1.25" (152 x 83 x 32 mm) |
| Operating Conditions | -14 to 122 F (-10 to 50 C) |

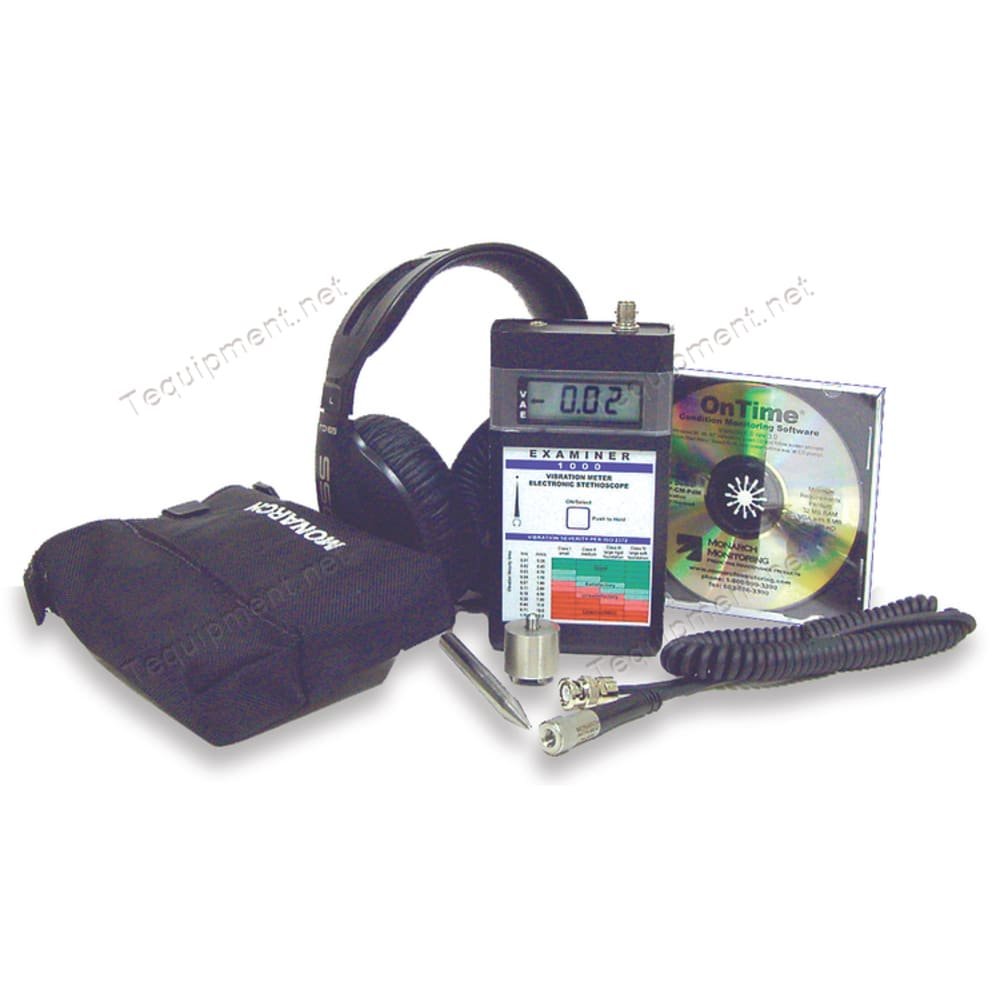

- Examiner 1000 Meter
- Stethoscope
- Sensor pak (6400-030) Accelerometer
- Stereo Headphones with 3.5mm “mini” plug
- Two AA Batteries
- Carrying Case
- User’s Manual
- Machinery Data Worksheet
